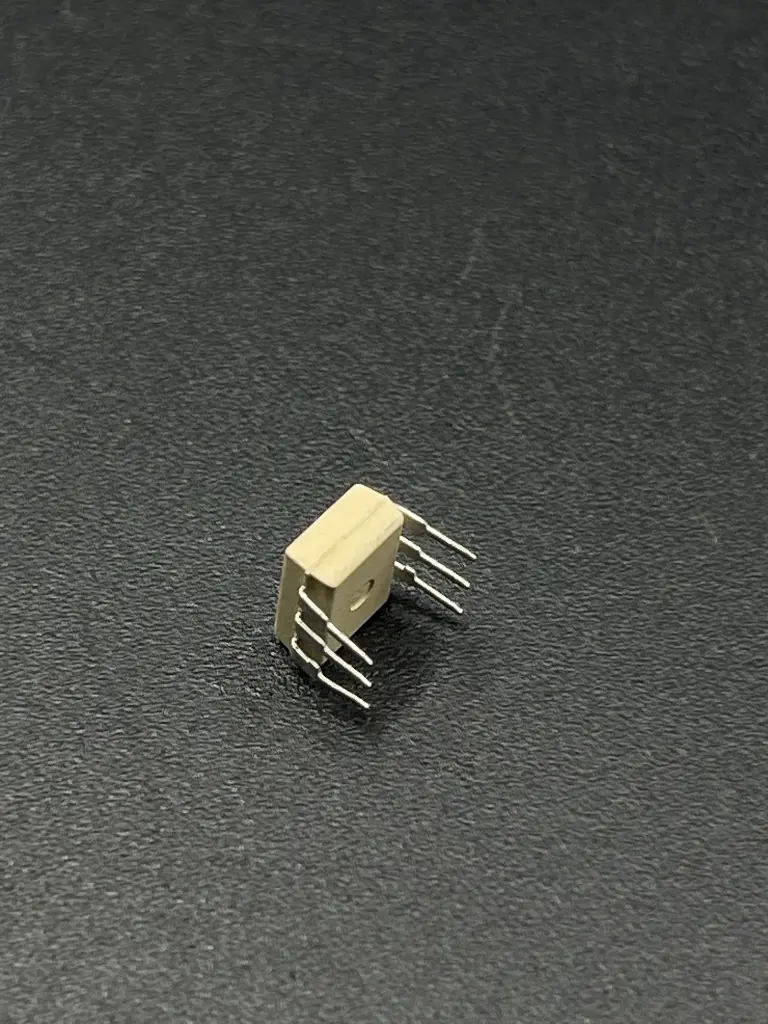

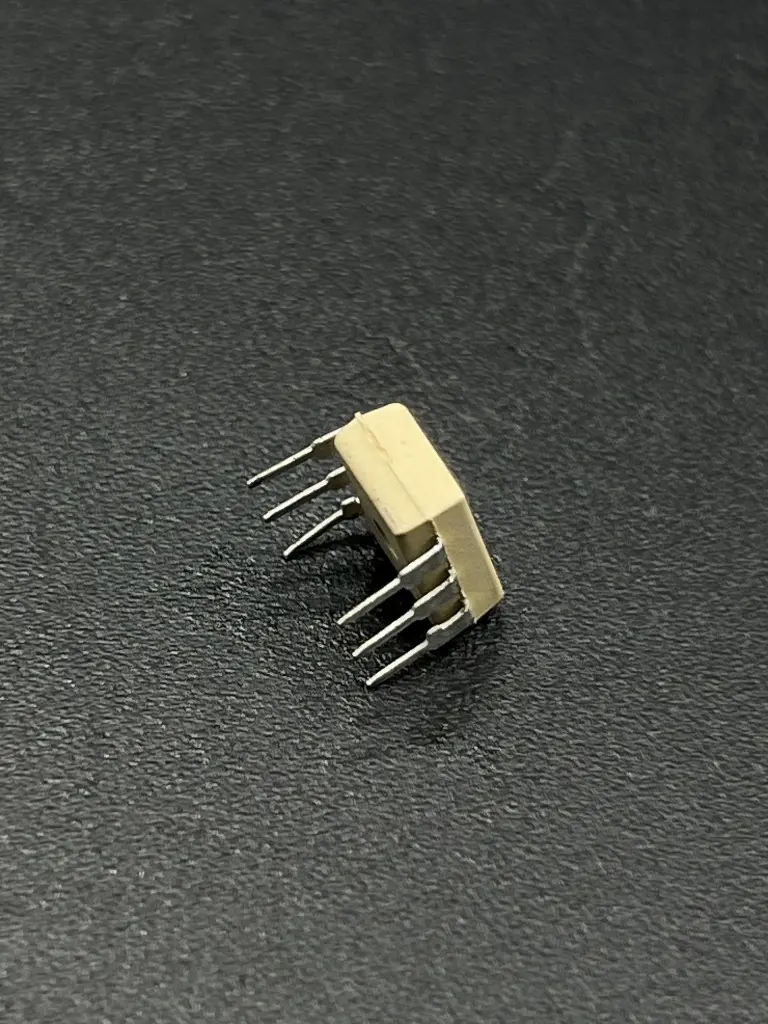

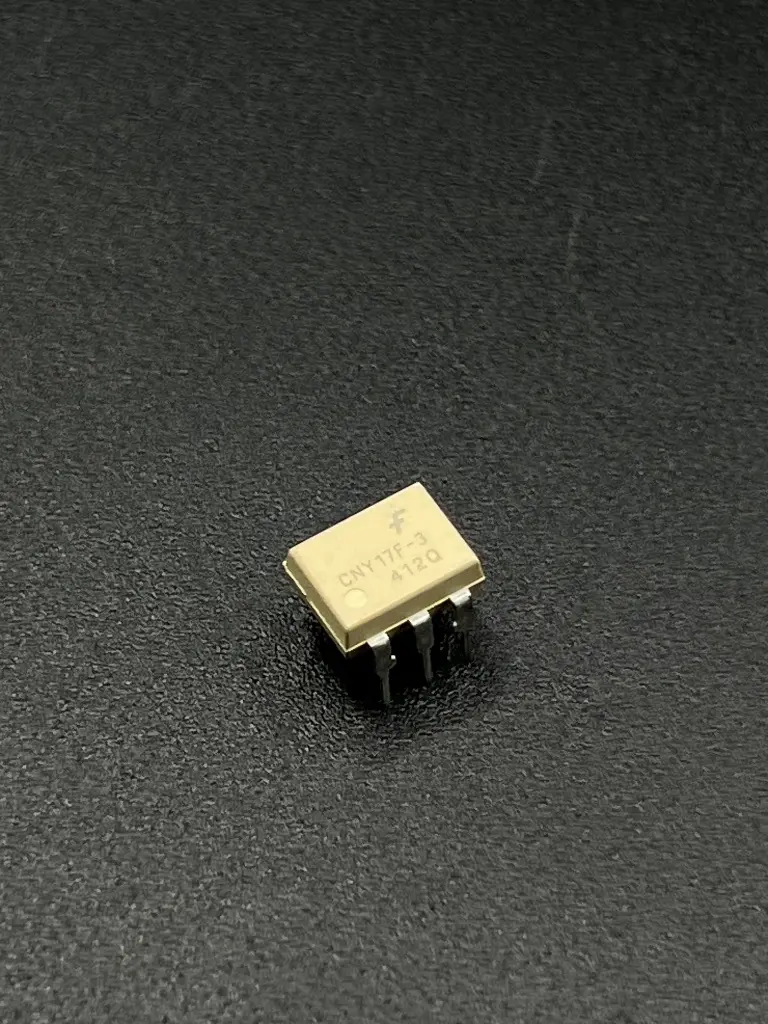

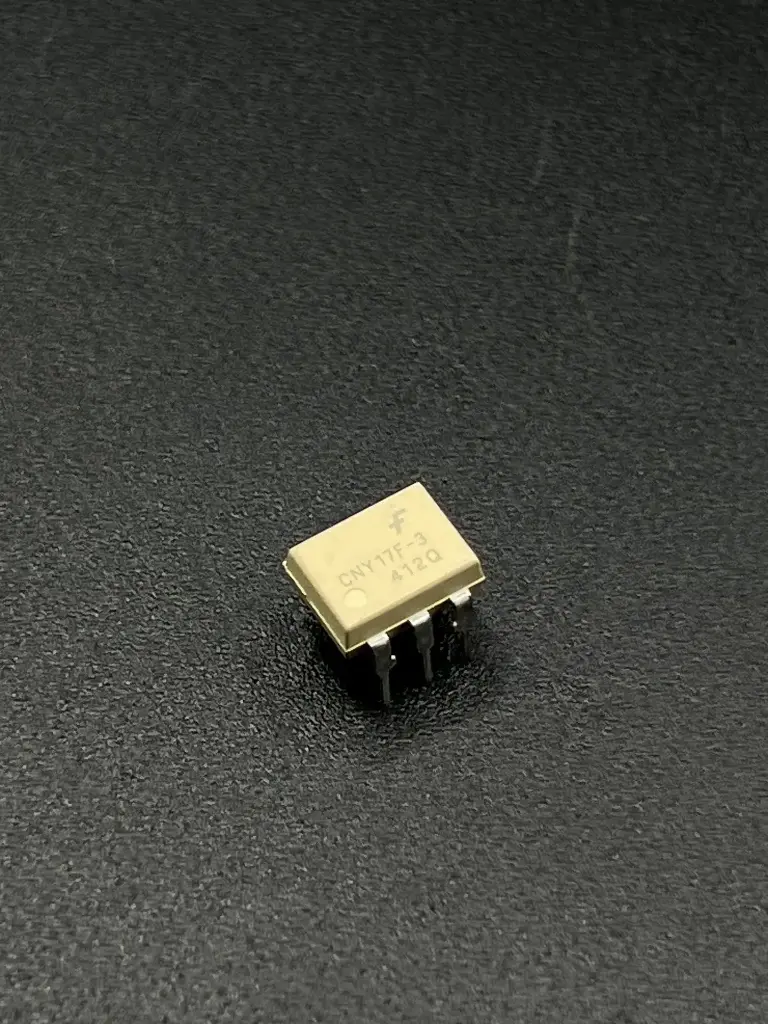

CNY17F-3 optocoupler
The CNY17F-3 is a high-reliability optocoupler designed to provide electrical isolation and signal transmission between circuits. It consists of a gallium arsenide infrared LED and a silicon NPN phototransistor, housed in a compact 6-pin DIP package. The CNY17F-3 offers high isolation voltage and is suitable for a wide range of applications including industrial control systems, microprocessor interfaces, and power supply circuits.
Key Features:
- High isolation voltage
- Compact 6-pin DIP package
- Compatible with TTL and CMOS logic levels
- High reliability and long lifespan
- Low input current requirements
- Isolation Voltage: 5000 VRMS (1 minute)
- LED Forward Voltage: 1.2V (typical)
- LED Forward Current: 60mA (max)
- Collector-Emitter Voltage: 70V (max)
- Collector Current: 50mA (max)
- Current Transfer Ratio (CTR): 63% to 125%
- Operating Temperature Range: -55°C to +100°C
- Package: 6-pin DIP
- Microprocessor System Interfaces: Provides isolation and signal transmission in microprocessor and microcontroller interfaces.
- Industrial Control Systems: Ensures reliable isolation and control in industrial automation and control systems.
- Power Supply Circuits: Used in feedback loops and control circuits of power supplies for isolation and signal transmission.
- Data Communication: Ensures safe and efficient data communication with electrical isolation.
- Consumer Electronics: Provides isolation in various consumer electronic devices requiring high reliability.
- Medical Equipment: Used in medical devices for safe and isolated signal transmission.
