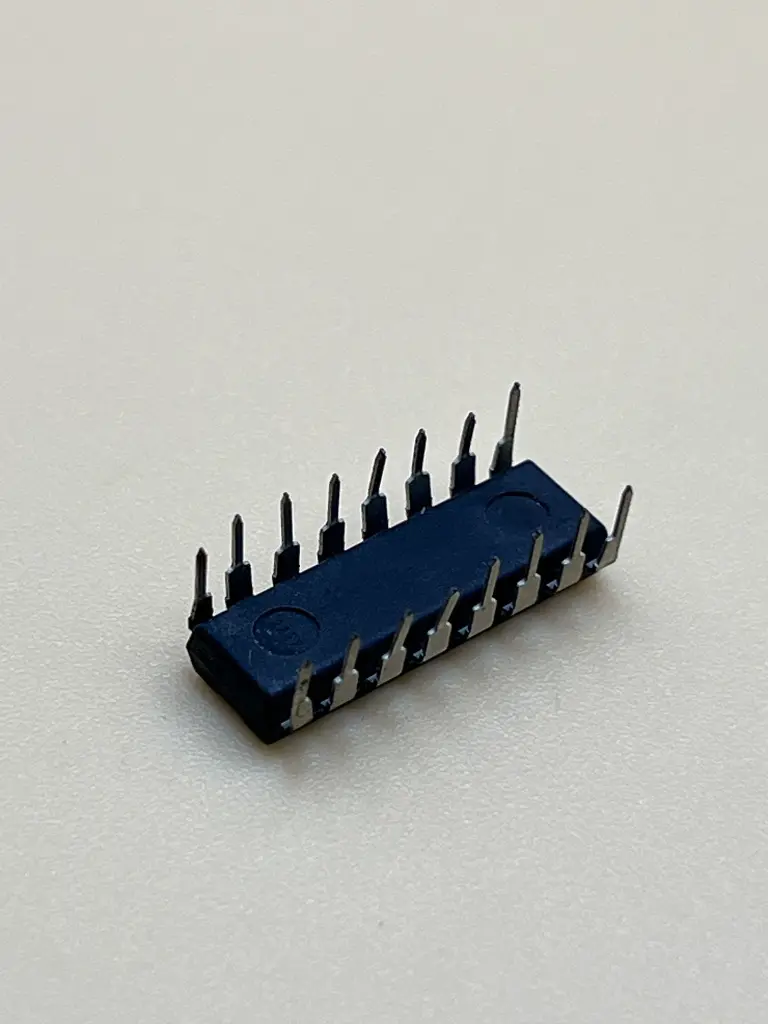

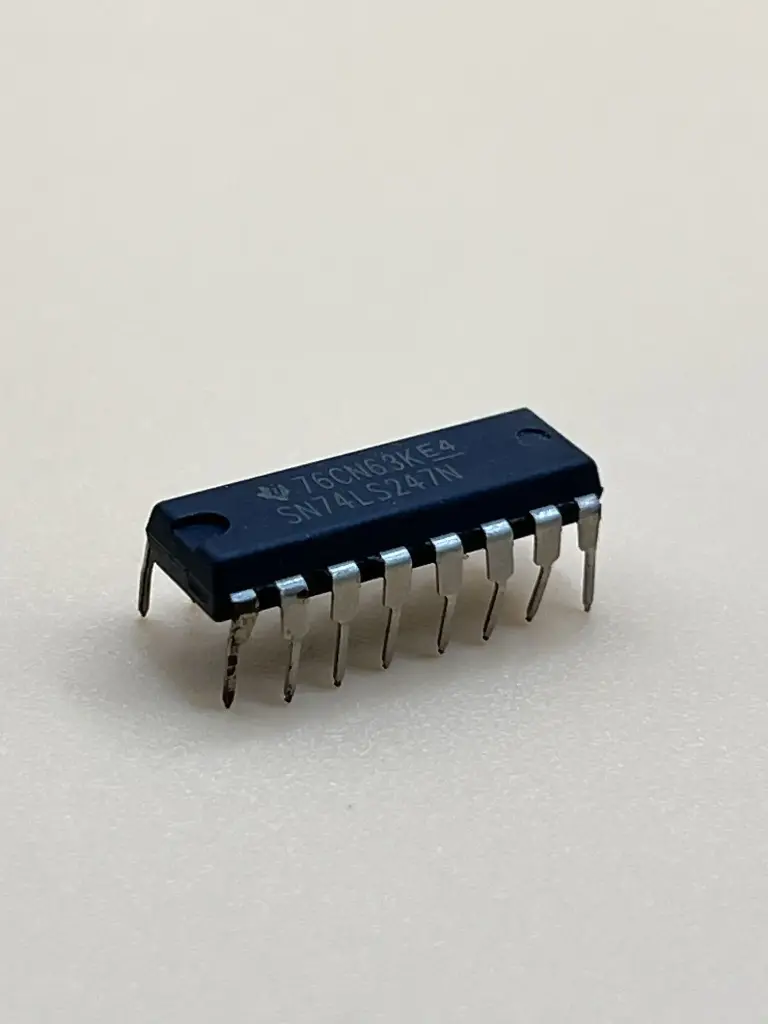

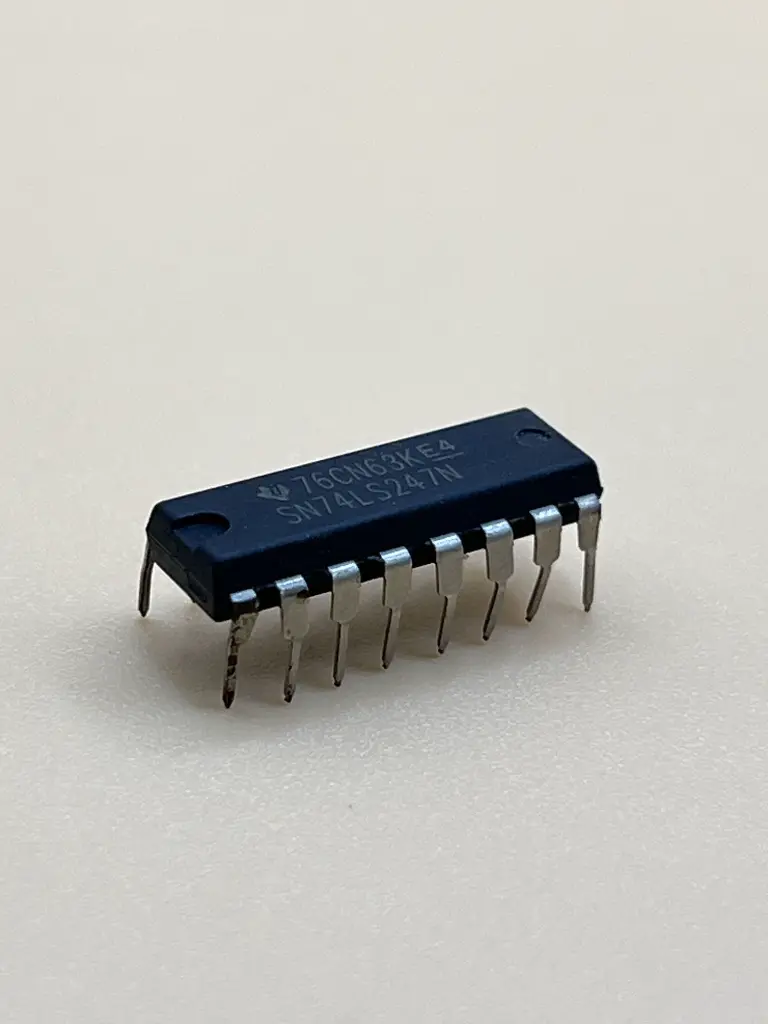

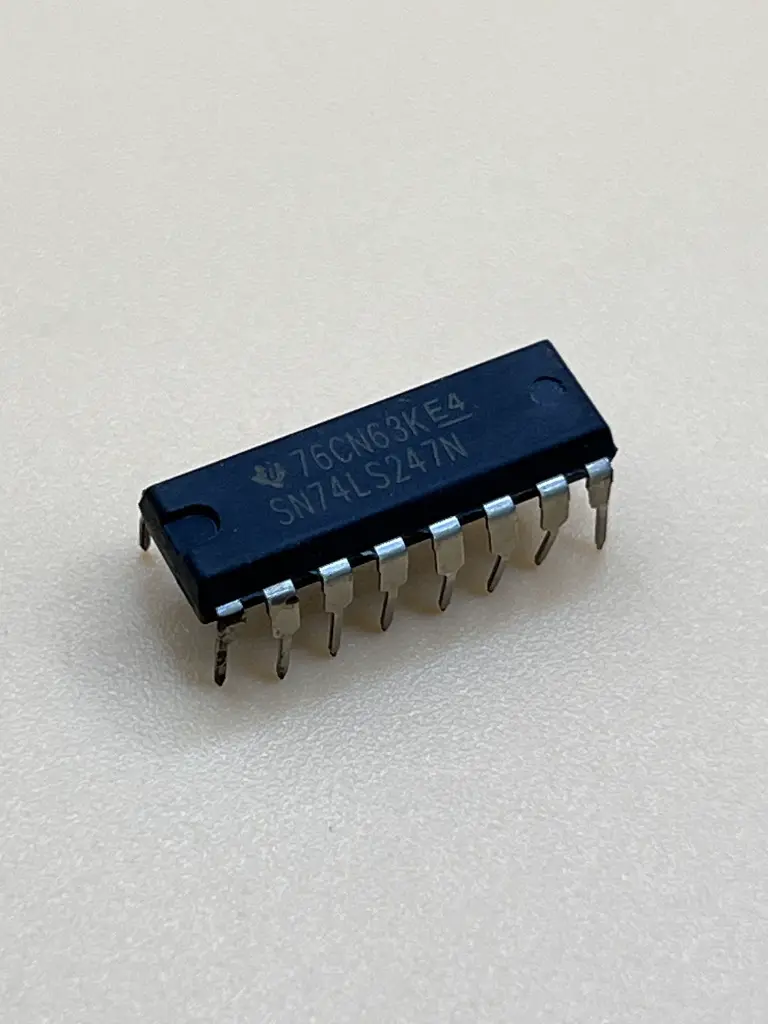

SN74LS247N (74LS247) Logic chip
Description:
The SN74LS247N integrates internal logic to decode four lines of BCD (Binary-Coded Decimal) data into the 7-segment format. It is capable of directly driving a common-cathode LED display or other types of 7-segment displays through its outputs, which correspond to each segment of the display.
Key Features:
- BCD to 7-segment decoder/driver
- Direct drive for common-cathode LED displays
- Internal pull-up resistors on inputs
- Operating voltage: 4.75V to 5.25V
- Low power consumption
- High-speed TTL (Transistor-Transistor Logic) technology
- Active-low blanking input for display blanking control
- Package Type: 16-pin DIP (Dual In-line Package)
- Supply Voltage (V_CC): 4.75V to 5.25V
- Input Voltage (V_IN): 0V to V_CC
- Output Voltage (V_OUT): 0V to V_CC
- Input High Voltage (V_IH): 2V (minimum)
- Input Low Voltage (V_IL): 0.8V (maximum)
- Output Current (I_O): 16mA (maximum per segment)
- Quiescent Supply Current (I_CC): 6mA (maximum)
- Propagation Delay Time: 30ns (typical)
- Operating Temperature Range: 0°C to +70°C
- Digital Panel Meters
- Scoreboards
- Counters
- Timers
- Clocks
- Industrial Control Systems
