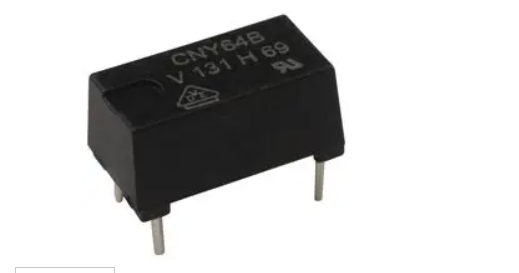

CNY64 High voltage opto isolator

Description: The CNY64 is a high-voltage optocoupler featuring an infrared emitting diode optically coupled to a phototransistor. It provides electrical isolation and signal transmission between high-voltage circuits and low-voltage control circuits in various applications. This optocoupler effectively prevents electrical interference and enhances safety by isolating sensitive components from potentially hazardous voltages. Key Features:

• Optically Coupled Isolation
• High Voltage Isolation: Up to 5300 Vrms
• Low Input Current Requirement
• High Current Transfer Ratio (CTR)
• Fast Switching Speed
• Compact DIP-6 Package

Technical Specifications:

• Package Type: DIP-6
• Isolation Voltage: 5300 Vrms
• Input Forward Voltage (VF): 1.2 V (Typical)
• Reverse Leakage Current (IR): 10 nA (Maximum)
• Collector-Emitter Breakdown Voltage: 70 V (Minimum)
• Current Transfer Ratio (CTR): 40% (Minimum) at IF = 10 mA, VCE = 5 V
• Rise Time (tr): 3 µs (Typical)
• Fall Time (tf): 1 µs (Typical)

Applications:

• Power Supply Isolation
• Interface between Microcontrollers and Switching Power Supplies
• Industrial Controls and Automation
• Measurement and Instrumentation Systems
• Motor Controls
• Isolated Signal Transmission

Datasheet: For detailed technical information, refer to the CNY64 datasheet.
