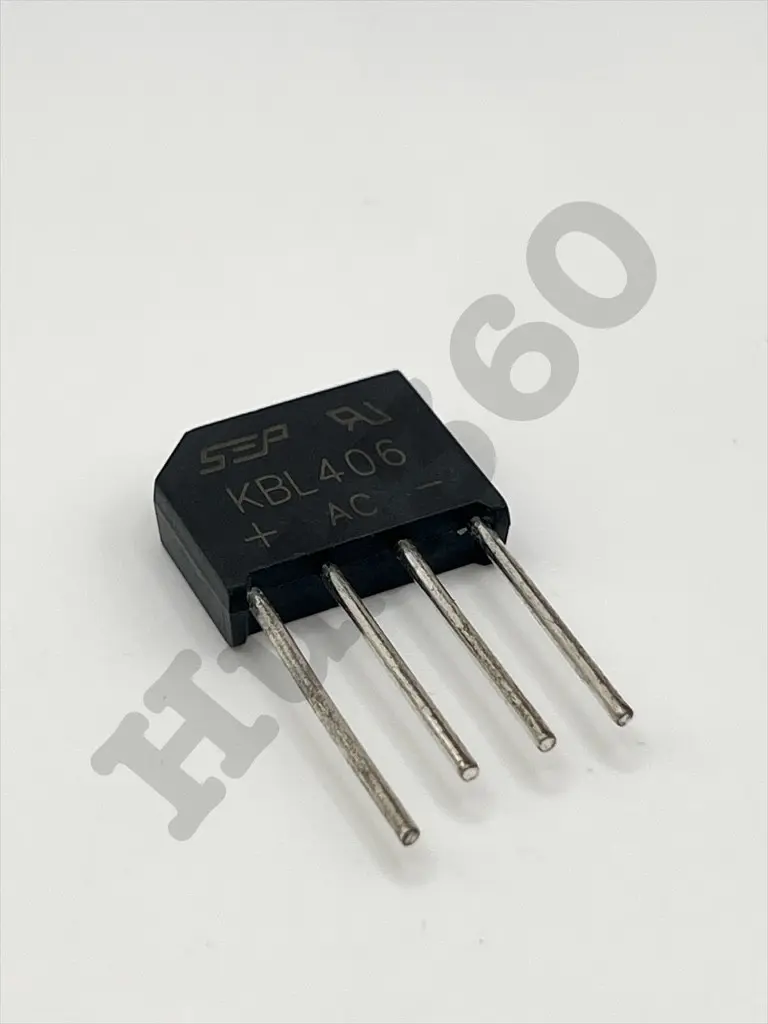

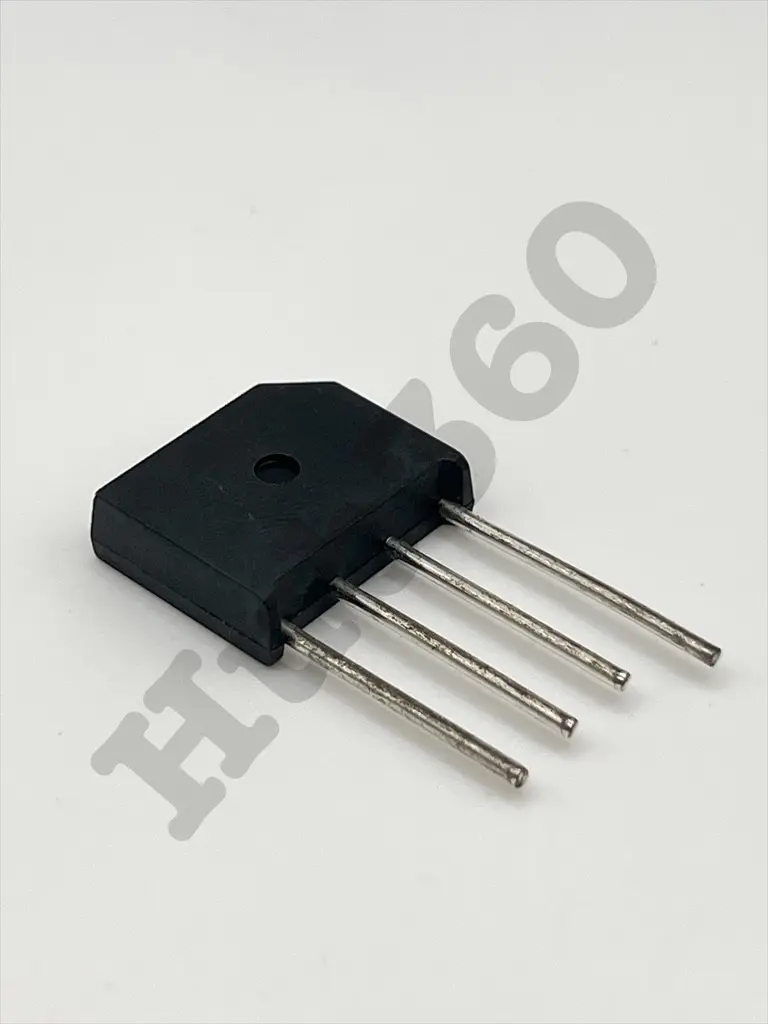

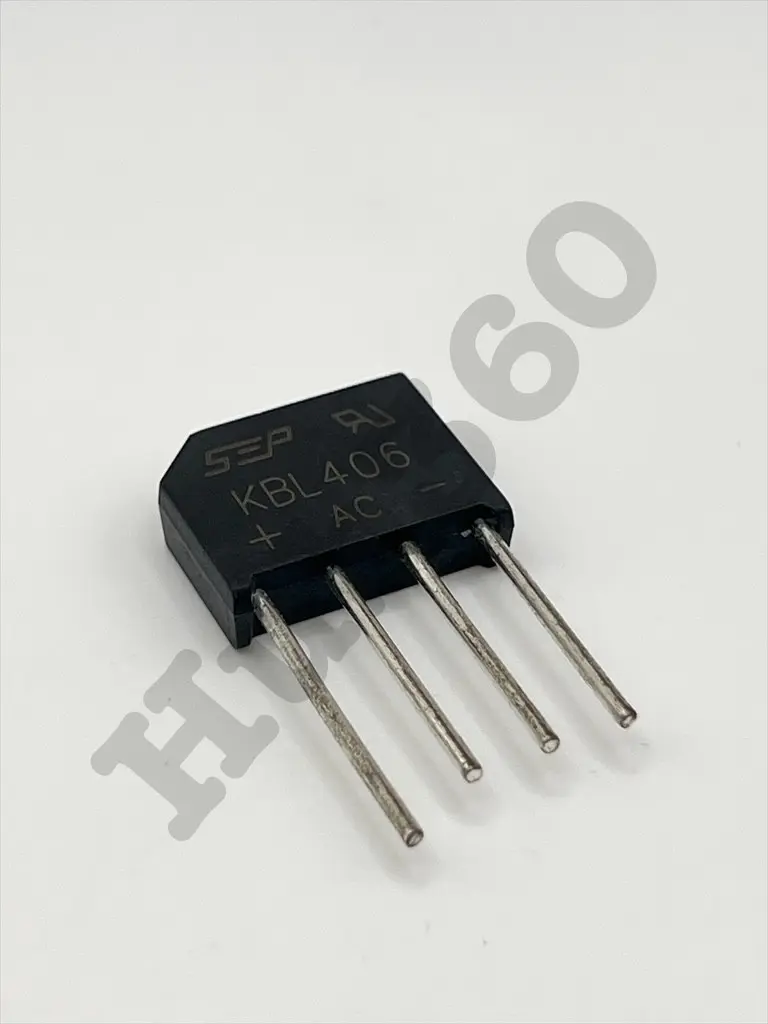

KBL406 4A 600V bridge rectifier

Description: The KBL406 is a bridge rectifier designed for converting alternating current (AC) to direct current (DC) in various electronic applications. It consists of four diodes configured in a bridge arrangement, allowing efficient rectification of AC voltage to DC voltage. The KBL406 is suitable for use in power supplies, battery chargers, consumer electronics, and other circuits where reliable rectification and high current capability are essential. Key Features:

• Bridge rectifier configuration
• Maximum Average Rectified Output Current (I_O): 4A
• Maximum Repetitive Peak Reverse Voltage (V_RRM): 600V
• Low forward voltage drop
• High surge current capability
• Compact and durable construction

Technical Specifications:

• Maximum Average Rectified Output Current (I_O): 4A
• Peak Repetitive Reverse Voltage (V_RRM): 600V
• Maximum RMS Bridge Input Voltage (V_RMS): 420V
• Maximum DC Blocking Voltage (V_DC): 600V
• Maximum Forward Voltage Drop (V_F): 1.1V (at I_F = 4A, T_A = 25°C)
• Operating Temperature Range: -55°C to +150°C
• Package Type: KBL (DIP-4)

Applications:

• Power supplies
• Battery chargers
• Consumer electronics
• LED lighting
• Industrial automation

Datasheet: For detailed technical information, refer to the KBL406 bridge rectifier datasheet.
