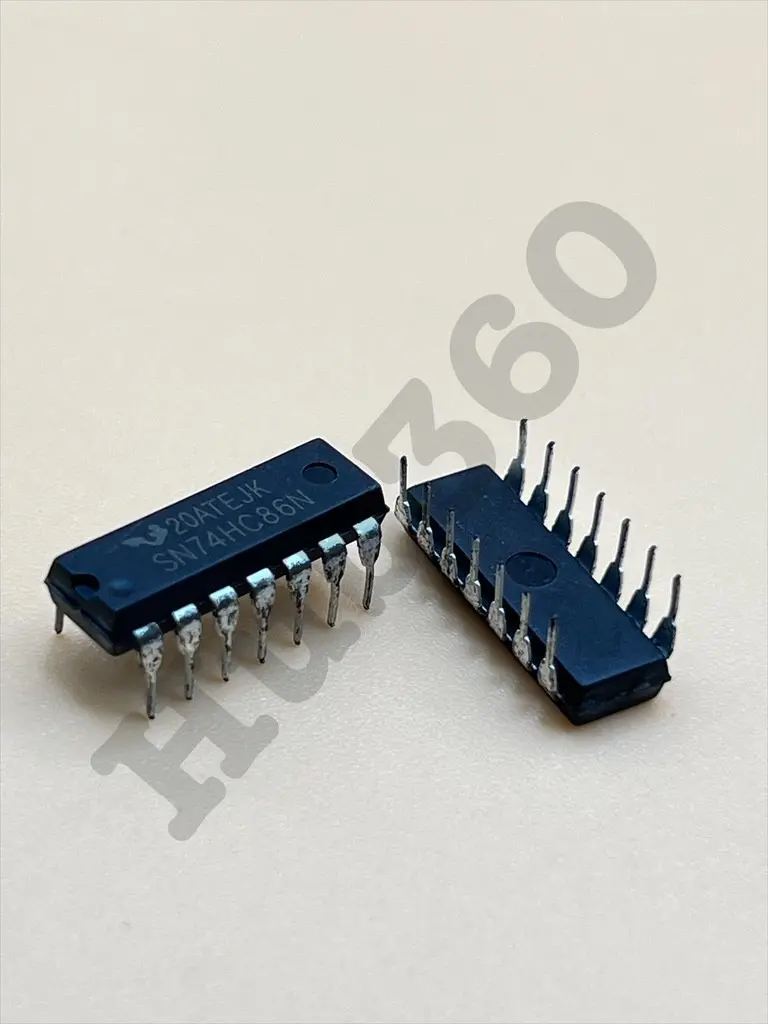

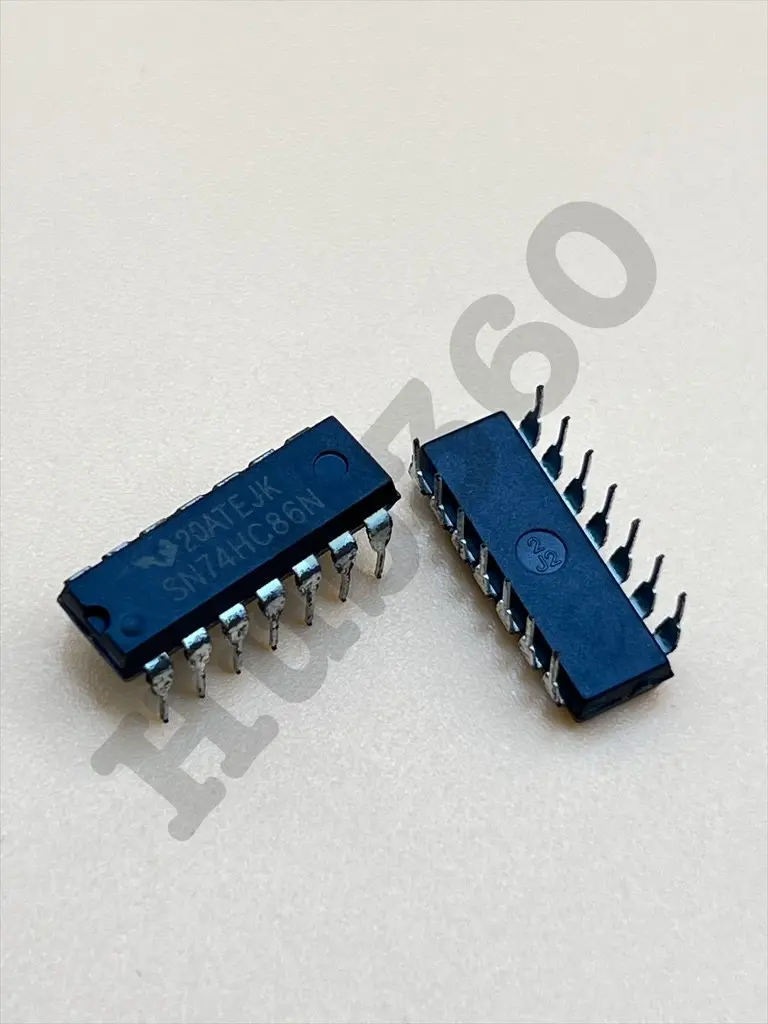

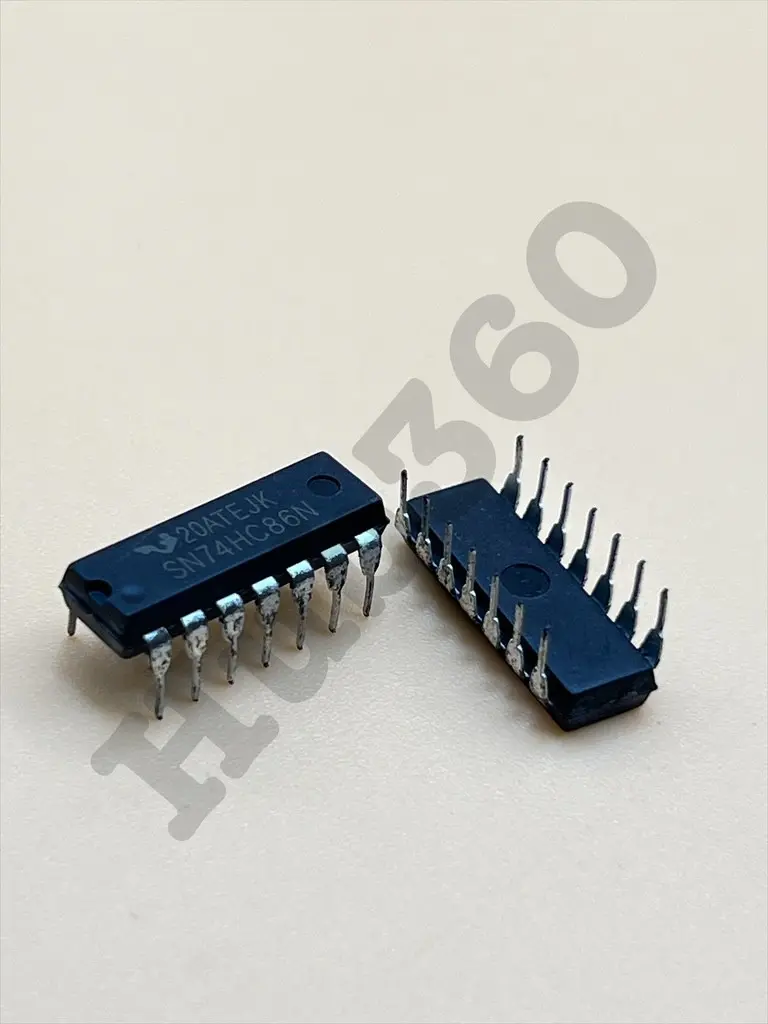

M74HC86 four input XOR gate
Description:
The M74HC86 IC includes four XOR gates, labeled as XOR1 to XOR4, with two inputs (A and B) and one output (Y) per gate. The XOR operation results in a high output (logic 1) only when the number of high inputs is odd. This IC is designed for high-speed operation and low power consumption, making it suitable for a variety of digital logic applications requiring XOR functionality.
Key Features:
- Quad 2-input XOR gates
- High-speed CMOS technology
- Low power consumption
- Wide operating voltage range: 2V to 6V
- Typical propagation delay: 12 ns at VCC = 5V, CL = 15 pF
- High output drive capability: ±5.2 mA at VCC = 5V
- Direct compatibility with TTL input levels
- Package Type: 14-pin DIP (Dual In-line Package)
- Supply Voltage (VCC): 2V to 6V
- Input Voltage (VIN): 0V to VCC
- Output Voltage (VOUT): 0V to VCC
- Input High Voltage (VIH): 3.15V (min) at VCC = 6V
- Input Low Voltage (VIL): 1.35V (max) at VCC = 6V
- Output Current (IO): ±5.2 mA (max)
- Quiescent Supply Current (ICC): 4 µA (max)
- Operating Temperature Range: -55°C to +125°C
- Arithmetic operations in digital systems
- Error detection and correction circuits
- XOR-based signal processing
- Data encryption and decryption
- Clock synchronization in microprocessor systems
