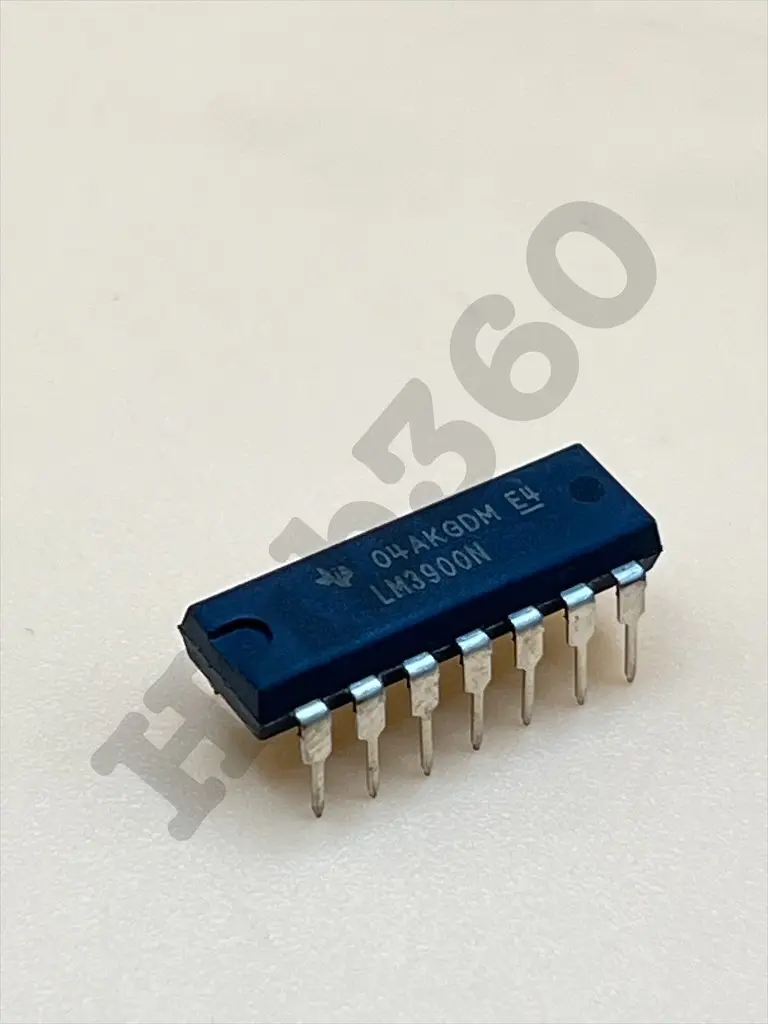

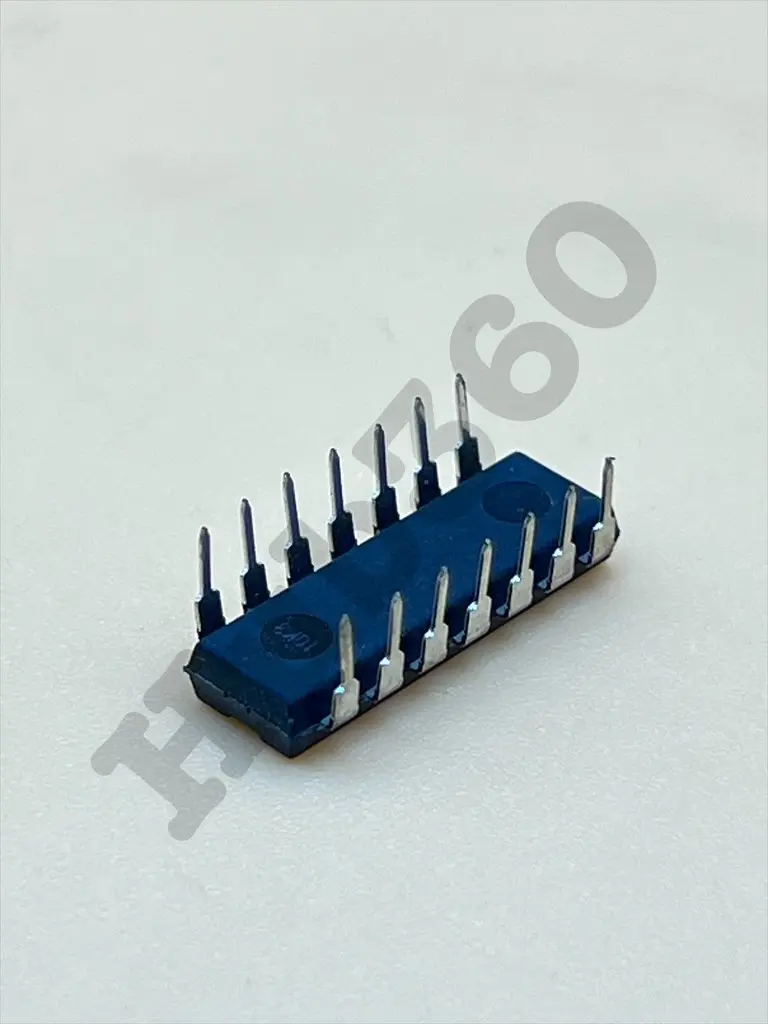

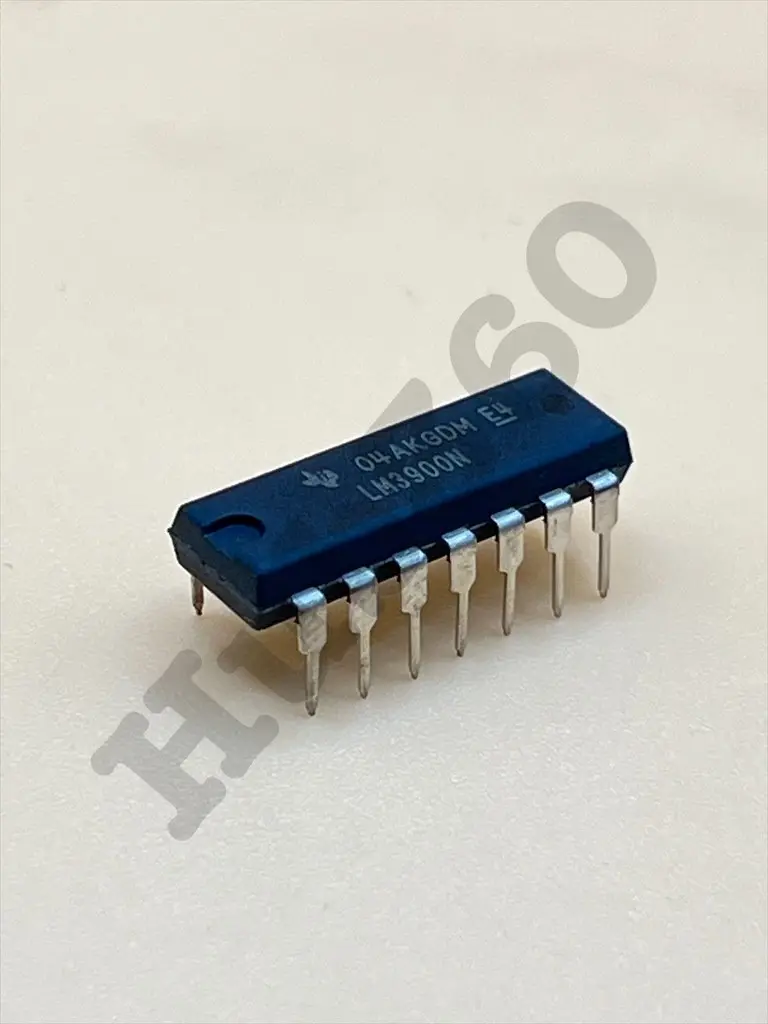

LM3900 amplifier

Description: The LM3900 is a quad operational amplifier (op-amp) with a unique design that allows single-supply operation. Unlike traditional op-amps, the LM3900 can operate with input and output voltages very close to the ground or zero voltage, making it ideal for low-voltage and single-supply applications. Each of the four op-amps in the LM3900 is designed to be used independently, providing versatility in various analog signal processing tasks. Key Features:

• Quad op-amp in a single package
• Single supply operation from 4V to 32V
• Input voltage range includes ground
• Output voltage swing includes ground
• High gain and wide bandwidth
• Low power consumption
• Low input bias current
• Compatible with common CMOS logic levels

Technical Specifications:

• Supply Voltage (Vcc): 4V to 32V
• Input Voltage Range: 0V to (Vcc - 1.5V)
• Output Voltage Swing: 0V to (Vcc - 1.5V)
• Gain Bandwidth Product: 2.5 MHz
• Input Bias Current: 30 nA (typical)
• Input Offset Voltage: 3 mV (typical)
• Output Current: 16 mA (max)
• Package Types: PDIP-14, SOIC-14
• Operating Temperature Range: 0°C to +70°C

Applications:

• Signal conditioning
• Analog computation
• Low voltage signal processing
• Audio amplification
• Sensor interfacing
• General-purpose amplification

Datasheet: For detailed technical information, refer to the LM3900 datasheet.
