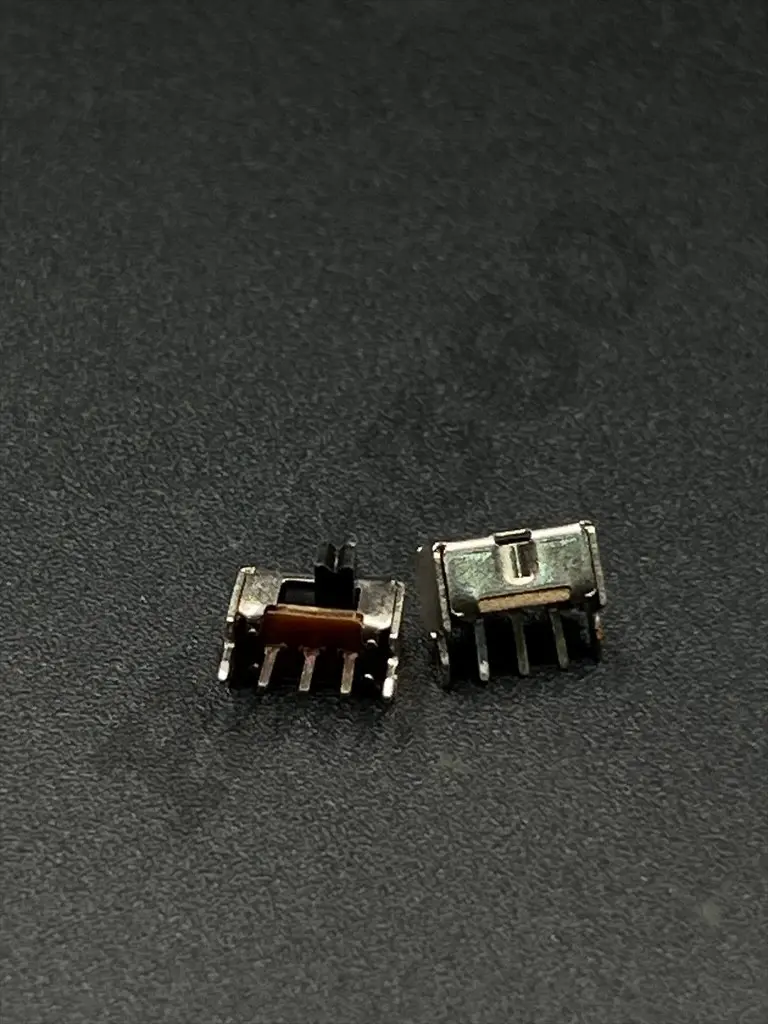

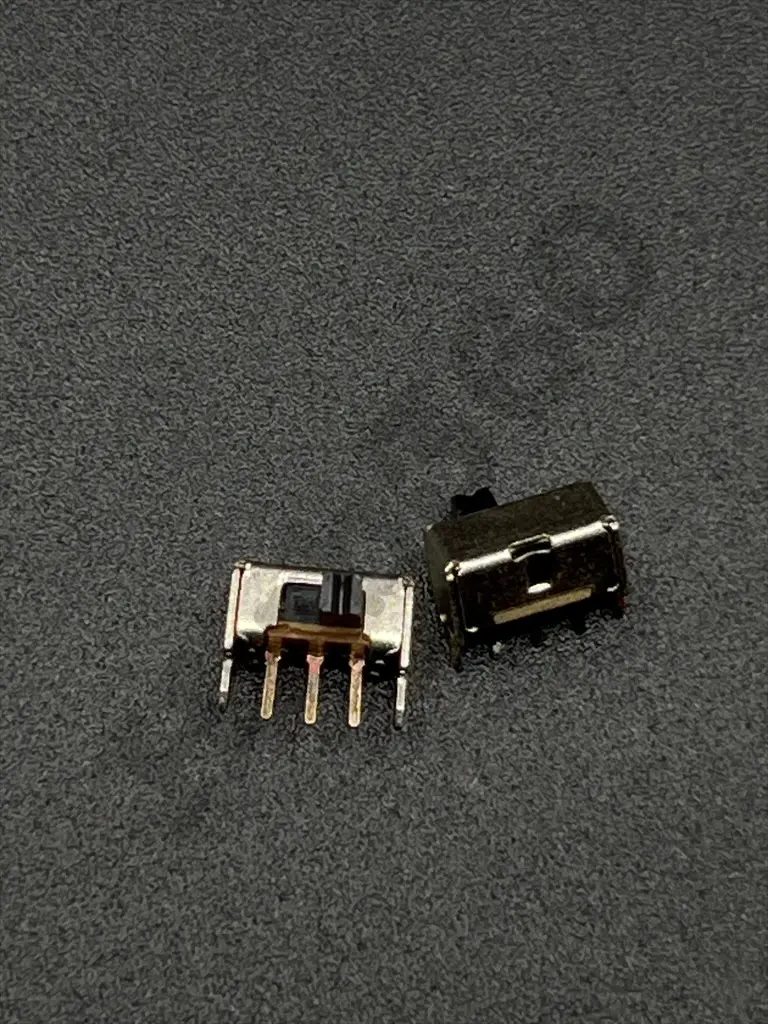

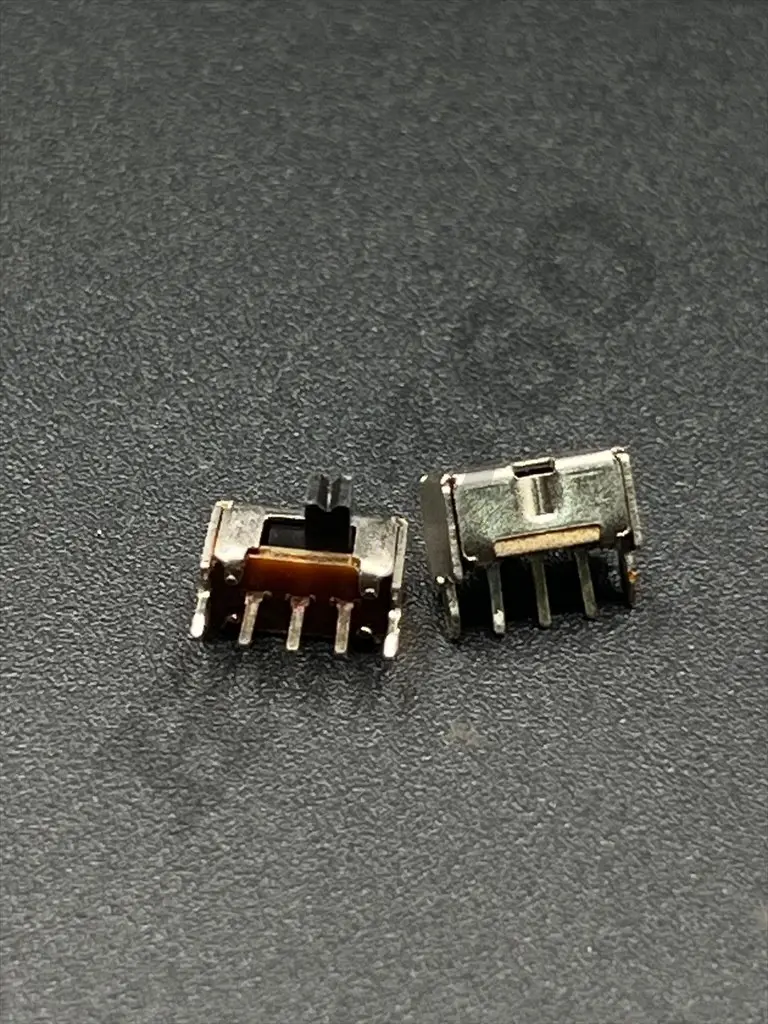

SK12D07VG5 slide switch
Description: The SK12D07VG5 is a miniature slide switch commonly used in electronic circuits for its compact size and reliable switching functionality. It features a single pole, double throw (SPDT) configuration, allowing for simple ON-OFF or ON-ON switching options. The switch is designed for low voltage and current applications where space is limited but precise control is required.
Key Features:
- Miniature slide switch
- Single pole, double throw (SPDT) configuration
- Compact size
- Reliable switching action
- Suitable for low voltage and current applications
- Contact Rating: Up to 0.3A @ 6V DC
- Contact Resistance: 30mΩ (max)
- Insulation Resistance: 100MΩ (min)
- Dielectric Strength: 500V AC for 1 minute
- Operating Temperature Range: -40°C to +85°C
- Mechanical Life: 10,000 cycles
- Consumer electronics
- Small appliances
- DIY electronics projects
- Control panels
