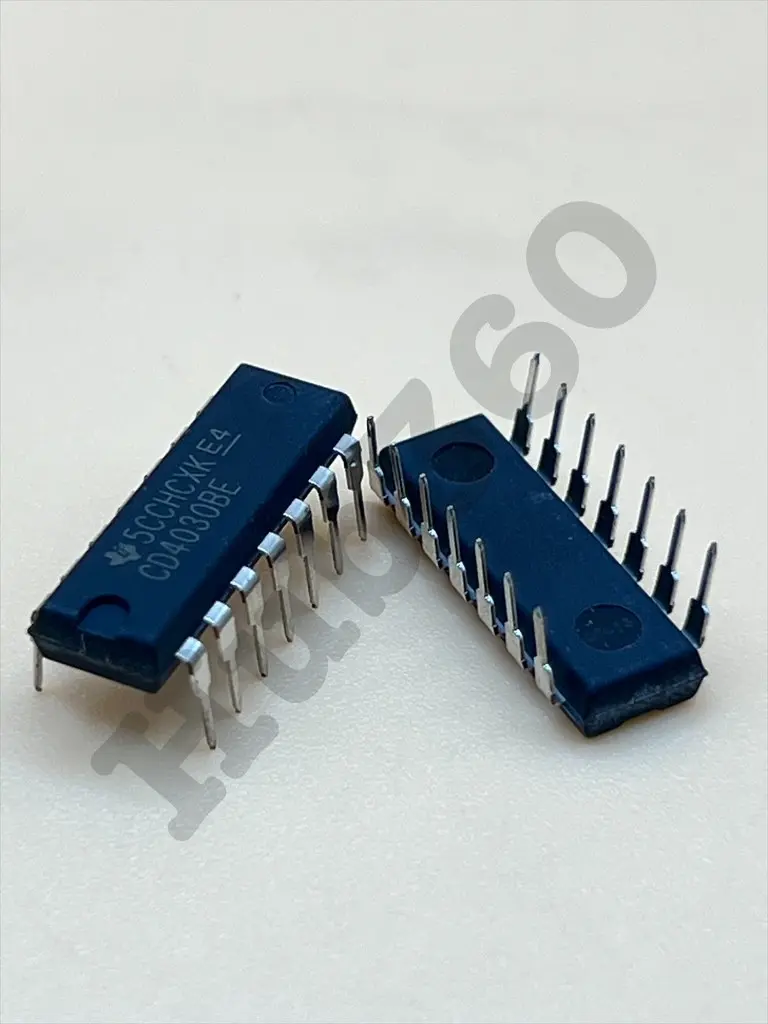

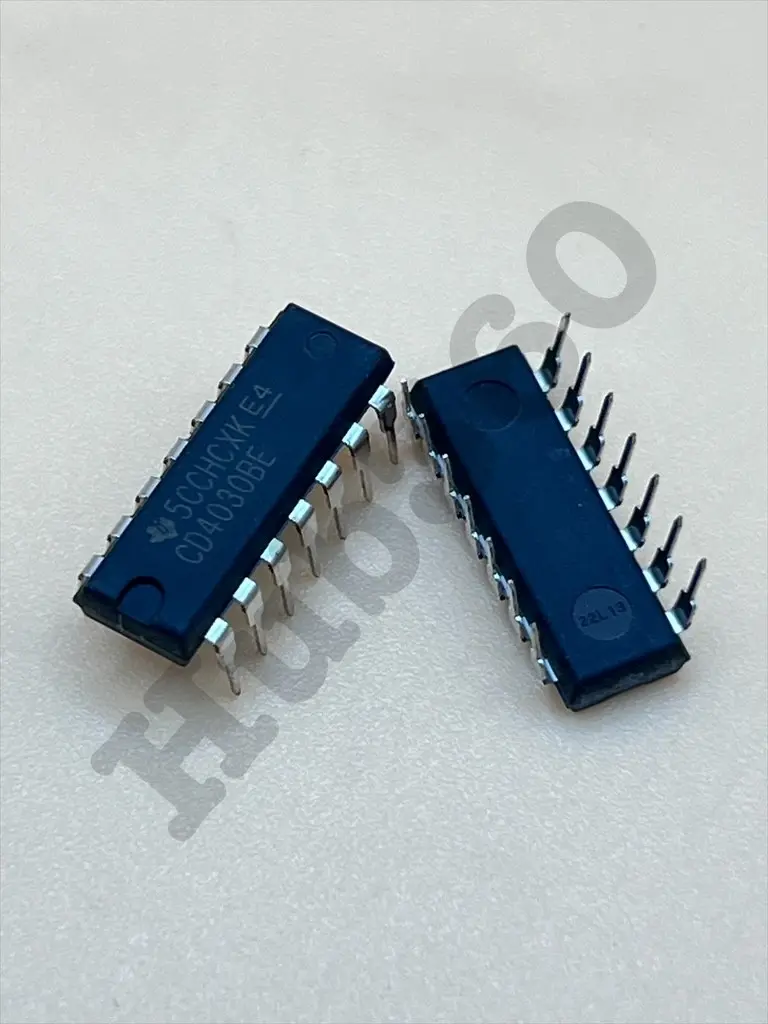

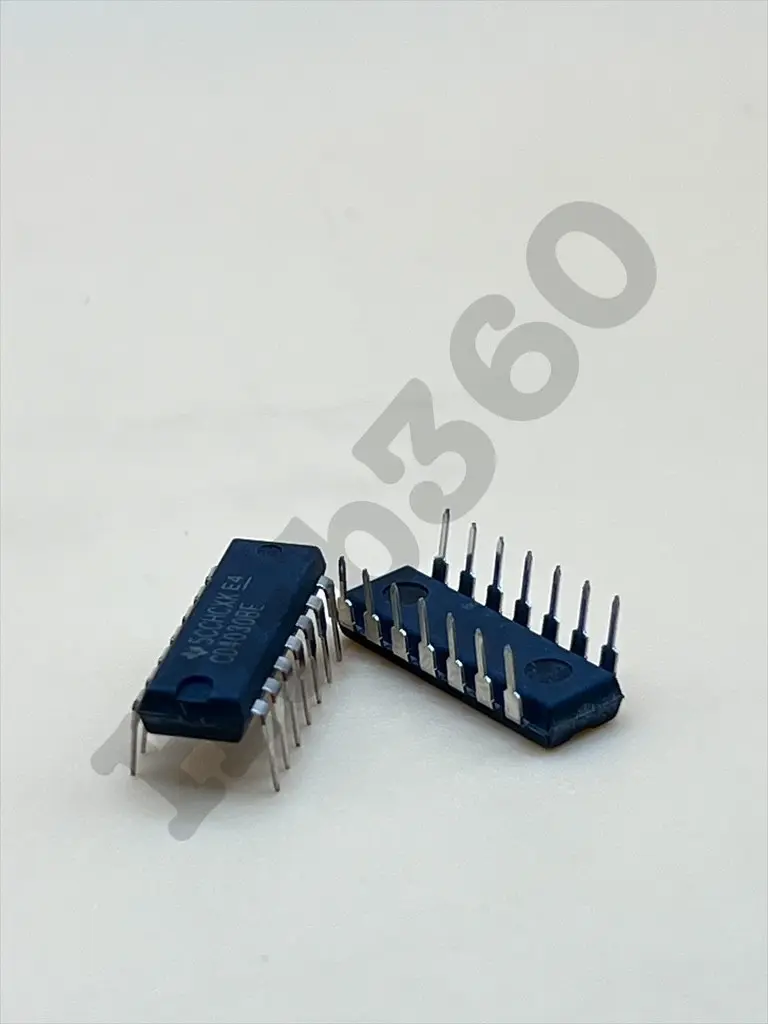

CD4030 TI Gate and Inverter
The CD4030 is a quad 2-input exclusive-OR (XOR) gate IC from the CD4000 series of CMOS logic devices. It consists of four independent XOR gates, each with two inputs, that perform the logical exclusive-OR function. This IC is designed for use in a wide range of digital applications, including arithmetic operations, parity generation and checking, and signal processing. The CD4030 is known for its high noise immunity, low power consumption, and wide operating voltage range.
Key Features:
- Quad 2-input exclusive-OR gates
- High noise immunity
- Low power consumption
- Wide supply voltage range
- Standardized, symmetrical output characteristics
- 100% tested for quiescent current at 20V
- Maximum input current of 1µA at 18V over full package-temperature range; 100nA at 18V and 25°C
- Logic Family: CMOS
- Number of Gates: 4
- Number of Inputs per Gate: 2
- Supply Voltage Range: 3V to 15V
- High-Level Output Voltage (V_OH): 2.5V min at V_DD = 5V, 9.5V min at V_DD = 10V
- Low-Level Output Voltage (V_OL): 0.4V max at V_DD = 5V, 0.5V max at V_DD = 10V
- High-Level Input Voltage (V_IH): 3.5V min at V_DD = 5V, 7V min at V_DD = 10V
- Low-Level Input Voltage (V_IL): 1.5V max at V_DD = 5V, 3V max at V_DD = 10V
- Propagation Delay Time: 200ns max at V_DD = 10V, C_L = 50pF
- Operating Temperature Range: -55°C to +125°C
- Package Types: PDIP, SOIC, TSSOP
- Arithmetic operations
- Parity generation and checking
- Signal processing
- Data comparison
- Control systems
- Digital electronics
