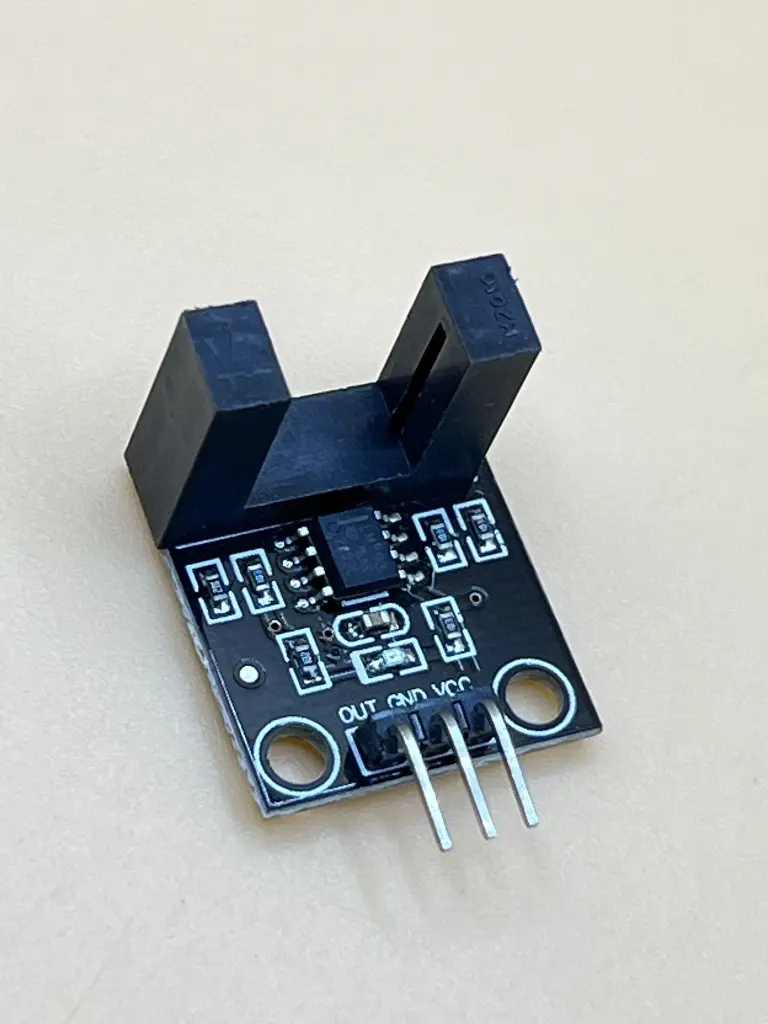

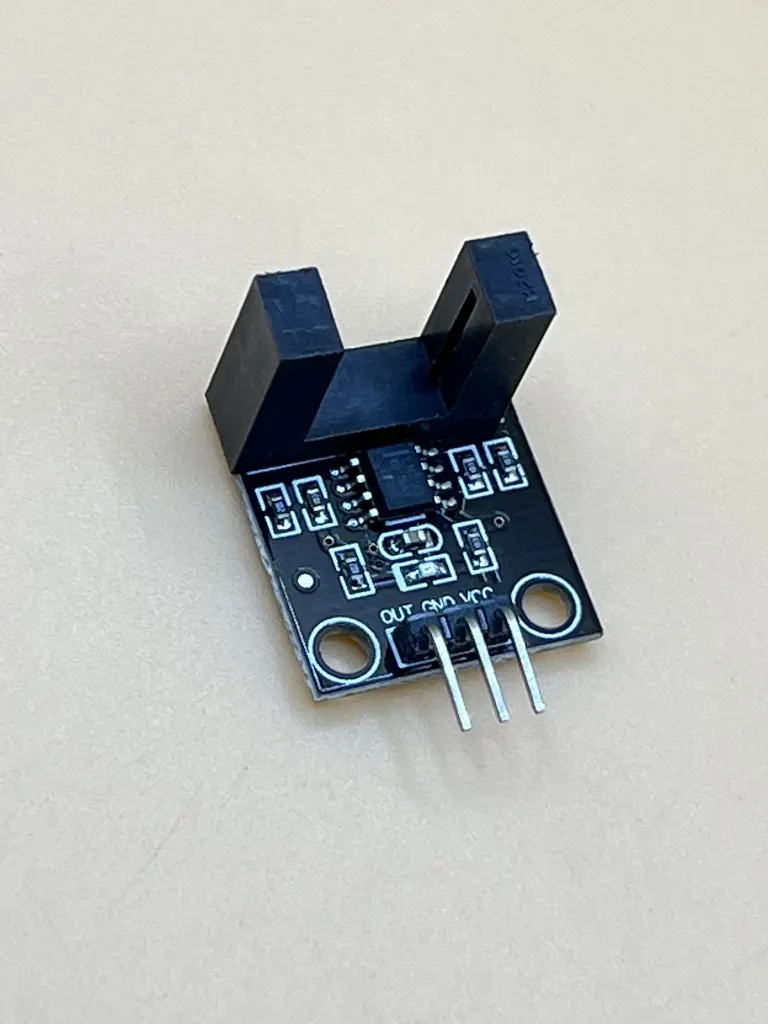

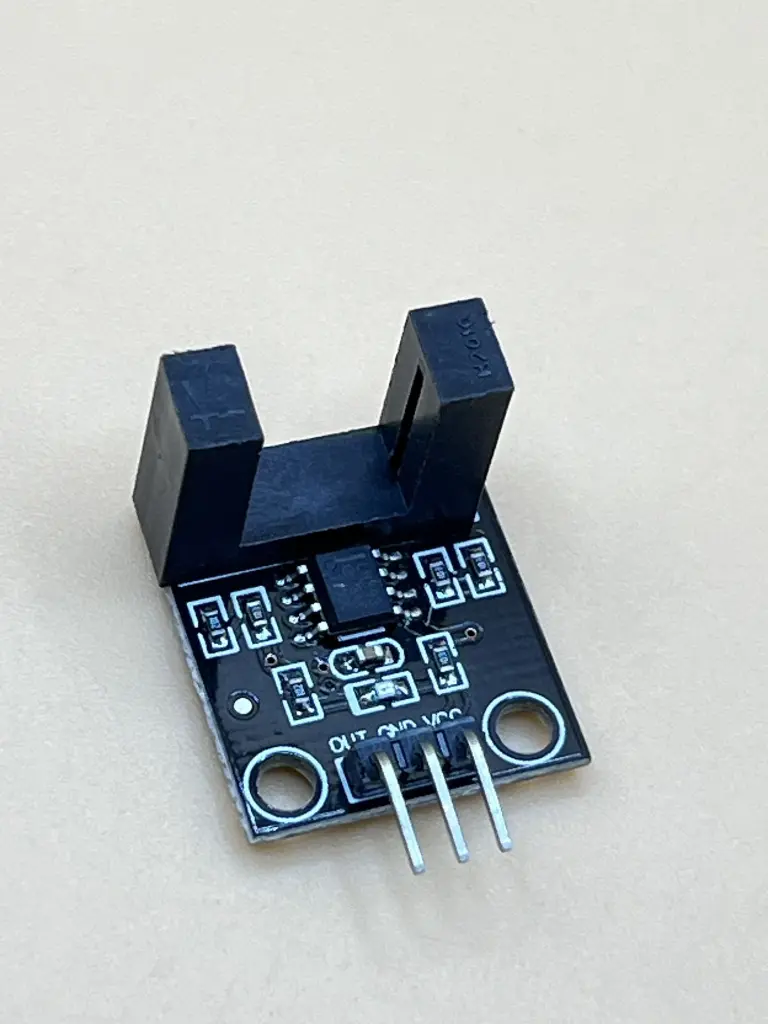

photoelectric sensor module
The Photoelectric Sensor Module is an infrared-based detection system designed to sense objects within a range of 2cm to 30cm. It emits IR light and measures the reflected signal to determine object presence, making it ideal for obstacle detection, line-following, and object counting applications.
Key Features:
-
Adjustable Sensitivity: Tune detection distance via onboard potentiometer
-
Low Power Operation: Suitable for battery-powered devices
-
Digital Signal Output: Easily read with microcontrollers' digital pins
-
Compact Design: Fits in space-constrained embedded systems
-
Plug-and-Play: No complex setup, ideal for beginners
Technical Specifications:
-
Operating Voltage: 3.3V – 5V DC
-
Detection Range: 2cm – 30cm (adjustable)
-
Output Type: Digital (High/Low based on detection)
-
PCB Dimensions: 32mm × 14mm
-
Interface: 3-pin (VCC, GND, OUT)
Applications:
-
Obstacle Avoidance in Robots
-
Line-Following Robots
-
Object and People Counting Systems
-
Motor Speed & RPM Detection
-
Basic Automation Projects
-
Rotary Encoder Pulse Counting
