Description

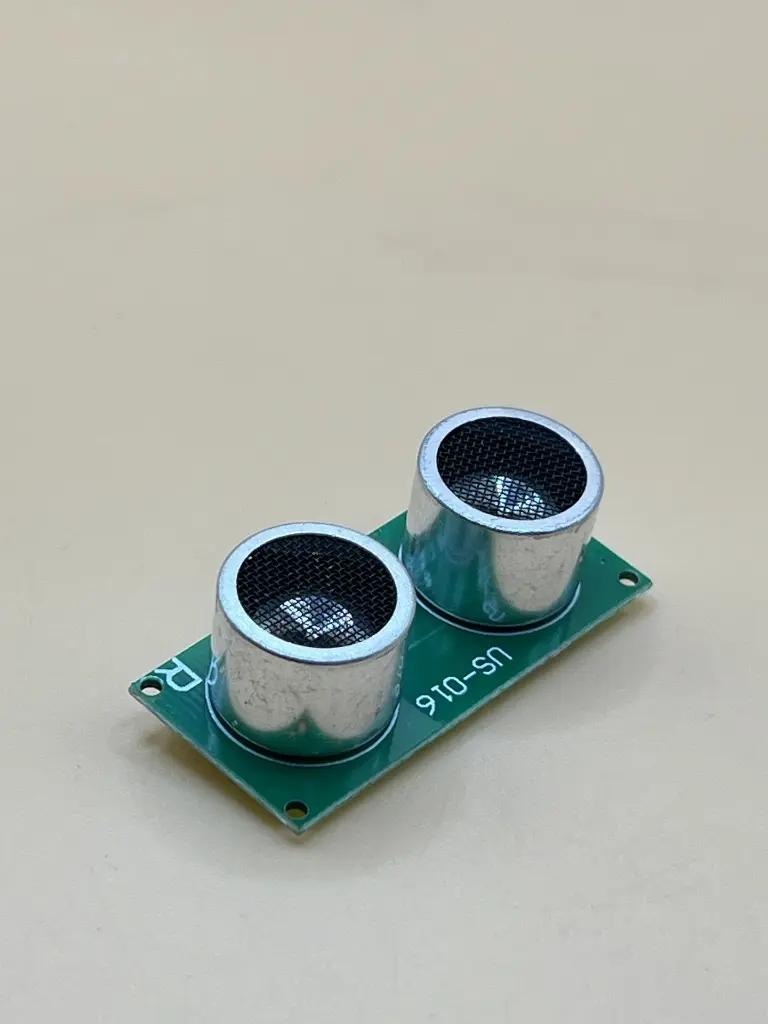

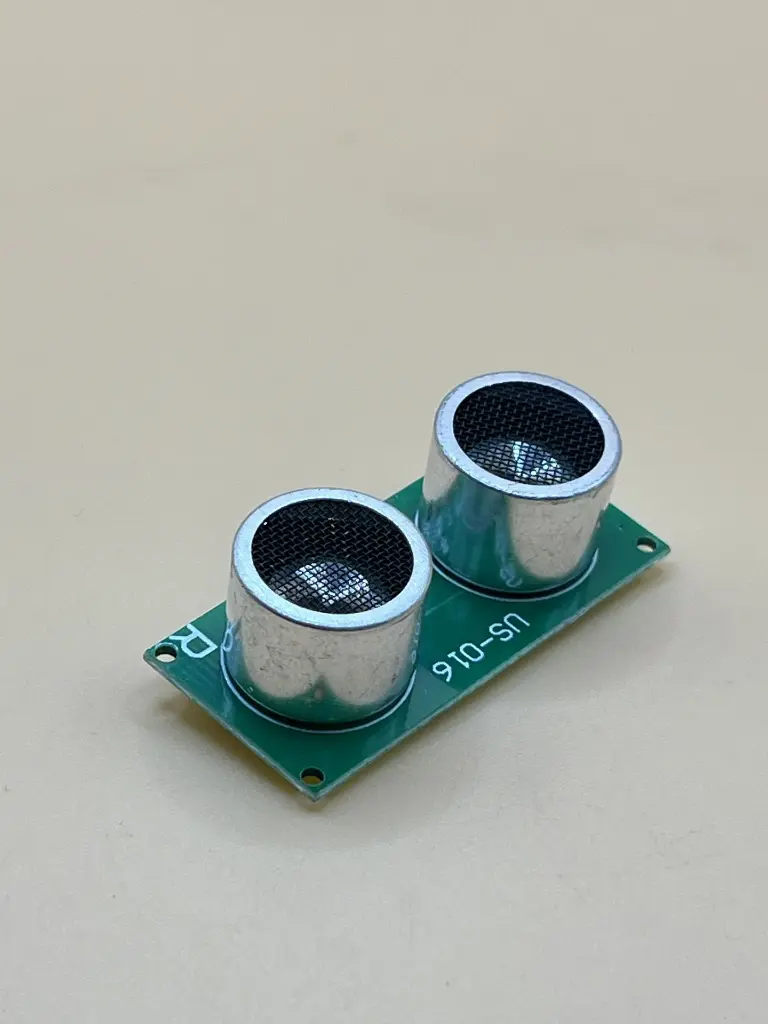

The US-016 is a flexible ultrasonic distance sensor offering both analog voltage and digital output, making it well suited for real-time distance measurement in robotics, automation, and embedded systems. Its analog voltage output changes proportionally with the measured distance, enabling smooth integration with microcontrollers that have ADC inputs.
Key Features
- Dual output modes: analog voltage and digital pulse output
- Real-time analog feedback: voltage changes with measured distance
- Long detection range: up to 400 cm with consistent stability
- Simple interfacing: works with ADC and digital input pins
- Compact design: ideal for space-limited applications
- Low power consumption: efficient for battery-powered embedded use
- Plug-and-play: minimal setup needed for distance sensing
Specification
- Model: US-016
- Measuring range: 2 cm to 400 cm
- Analog output voltage: 0V to ~3.3V proportional to distance
- Digital output: echo pulse (similar to HC-SR04)
- Operating voltage: 3V – 5.5V
- Accuracy: ±1 cm
- Current consumption: less than 15 mA
- Trigger signal: 10µs or higher HIGH pulse
- Response time: under 50 ms

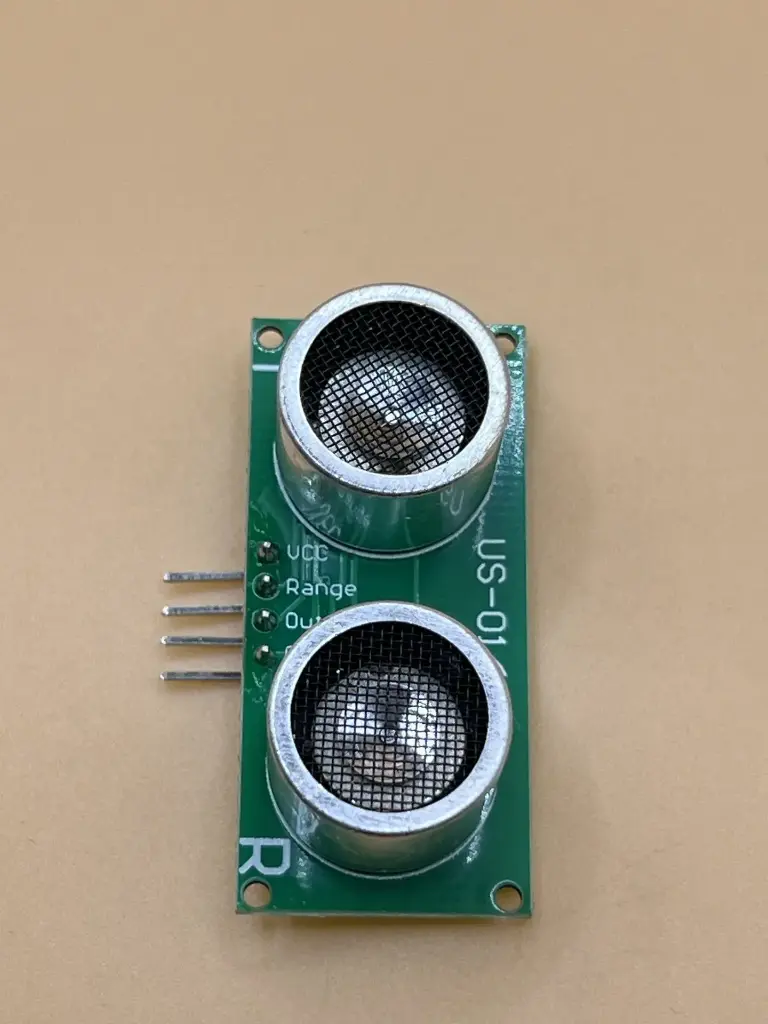

- Interface pins: VCC, GND, TRIG, ECHO, AN (analog out)
Applications
- Obstacle detection and avoidance
- Smart bins and proximity sensing
- Distance-based automation systems
- DIY robotics and rangefinding
- Water level monitoring
- Real-time analog distance feedback for analog meters or ADC inputs
