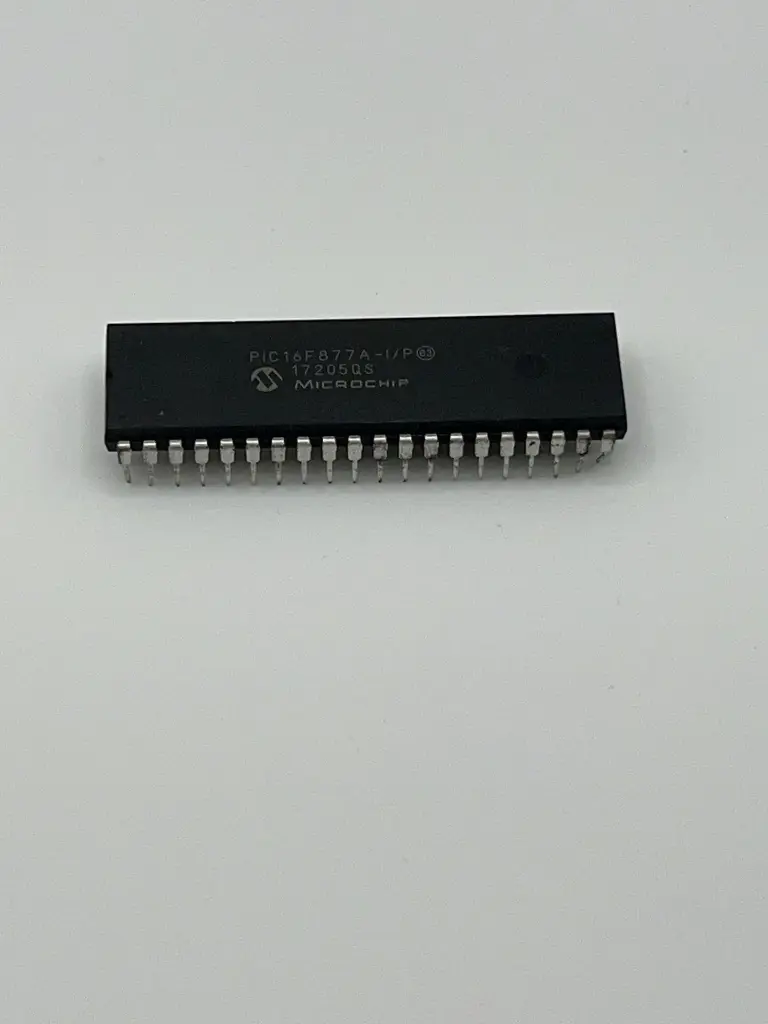

PIC16F877A
The PIC16F877A is a high-performance 8-bit microcontroller from Microchip Technology. It features a robust set of peripherals and ample memory, making it suitable for a wide range of embedded applications, including industrial control systems, consumer electronics, and automotive systems. The PIC16F877A is known for its ease of use, reliable performance, and versatility.
Key Features:
- 8-bit microcontroller with 14-bit instruction set
- 14-bit instruction set for enhanced performance
- 368 bytes of RAM
- 256 bytes of EEPROM for non-volatile data storage
- 33 I/O pins for interfacing with external devices
- 2 Timers, 8-bit and 16-bit
- Integrated Watchdog Timer and Brown-out Reset
- Internal oscillator up to 20 MHz
- Supports various serial communication protocols (USART, SPI, I²C)
- Low power consumption with multiple power-saving modes
- CPU: 8-bit core with 14-bit instruction set
- Flash Memory: 14 KB
- RAM: 368 bytes
- EEPROM: 256 bytes
- I/O Pins: 33
- Timers/Counters: 2 (8-bit and 16-bit)
- Serial Communication: USART, SPI, I²C
- Operating Voltage: 2.0V to 5.5V
- Clock Speed: Up to 20 MHz
- Power Consumption: Low power modes available
- Operating Temperature Range: -40°C to +85°C
- Package Type: DIP-40, PLCC-44, QFP-44
- Industrial automation and control systems
- Consumer electronics
- Automotive electronics
- Data acquisition and measurement systems
- Robotics and automation
- Educational and prototyping projects
- Program the PIC16F877A using a compatible programmer or development kit.
- Connect external peripherals and sensors to the microcontroller’s I/O pins.
- Configure the microcontroller’s settings and features via software.
- Integrate the microcontroller into your electronic circuit for specific tasks and control functions.
- Handle the microcontroller with care to avoid damage from electrostatic discharge (ESD).
- Verify correct power supply voltage and connections before powering the device.
- Follow the manufacturer’s guidelines for programming and operation.
