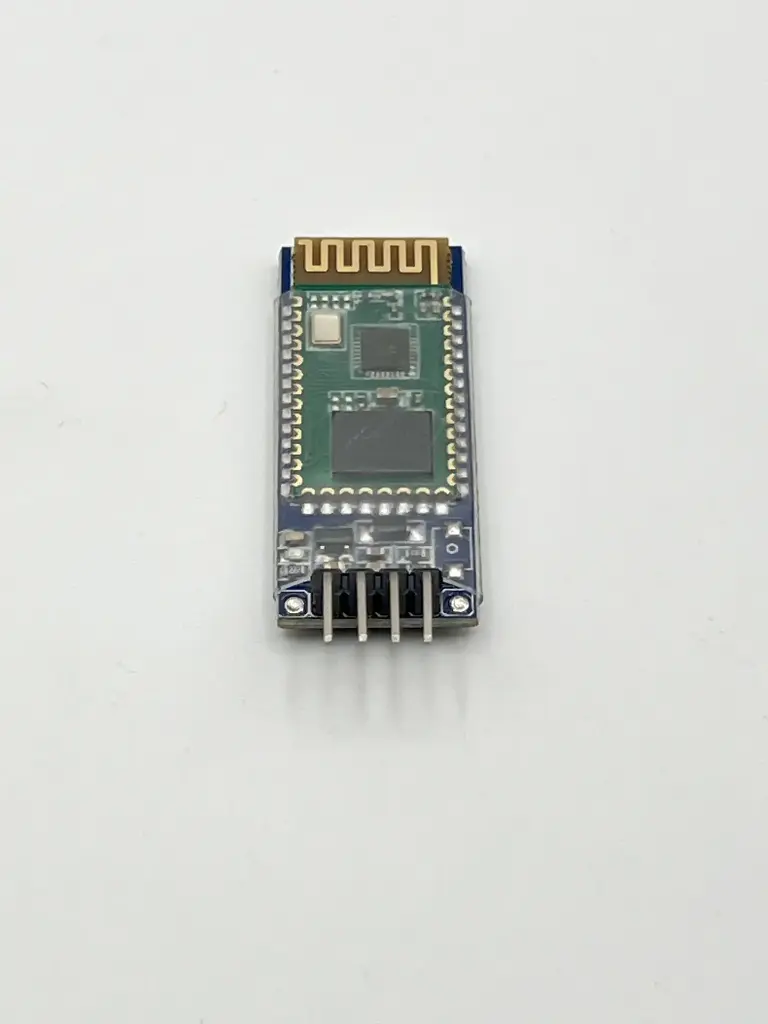

    hc-06 bluetooth module

    https://gh.hub360.cc/web/image/product.template/11851/image_1920?unique=1c4a6b4

    GH¢ 40.00 40.0 GHS GH¢ 40.00

    ₦ 6,500.00

    Not Available For Sale

    (GH¢ 0.00 / Units)

    This combination does not exist.

    Contact Us


    The HC-06 Bluetooth Module is a low-cost, easy-to-use Bluetooth SPP (Serial Port Protocol) module designed for transparent wireless serial communication. It enables devices to communicate wirelessly over a short range, making it ideal for use in wireless communication projects, home automation, and other embedded systems. Key Features:
    • Bluetooth V2.0+EDR (Enhanced Data Rate) compliant
    • Serial port Bluetooth module for wireless communication
    • Easy to interface with microcontrollers using UART
    • Default baud rate of 9600 bps (configurable)
    • Supports both Master and Slave modes
    • Compact design with built-in antenna
    • Low power consumption
    • LED indicator for connection status
    Technical Specifications:
    • Bluetooth Standard: Bluetooth V2.0+EDR
    • Frequency Range: 2.4 GHz ISM band
    • Operating Voltage: 3.3V to 5V
    • Operating Current: 30 mA (typical)
    • Communication Range: Up to 10 meters (unobstructed)
    • Default Baud Rate: 9600 bps (configurable from 4800 bps to 115200 bps)
    • Data Bits: 8
    • Stop Bits: 1
    • Parity: None
    • UART Interface: TX, RX, VCC, GND
    • Dimensions: Approximately 28mm x 15mm x 2.5mm
    • Weight: 2g
    Applications:
    • Wireless serial communication
    • Home automation systems
    • Remote control systems
    • Data acquisition systems
    • Wireless sensors
    • Robotics and DIY projects
    • Wireless data logging
    Usage:
    1. Connection:
      • Connect the VCC pin to a 3.3V to 5V power supply.
      • Connect the GND pin to ground.
      • Connect the TX pin of the module to the RX pin of the microcontroller.
      • Connect the RX pin of the module to the TX pin of the microcontroller.
    2. Pairing:
      • Power on the module; it will enter pairing mode, indicated by a flashing LED.
      • Search for the module using a Bluetooth-enabled device (e.g., smartphone, tablet, PC) and pair with it. The default pairing code is usually "1234" or "0000."
      • Once paired, the LED will stop flashing and remain on, indicating a successful connection.
    3. Communication:
      • Use serial communication commands to send and receive data between the microcontroller and the paired device.
      • Configure the module's settings (e.g., baud rate) if necessary using AT commands.
    Caution:
    • Ensure proper voltage levels to avoid damaging the module.
    • Handle the module carefully to avoid static discharge and physical damage.
    • Avoid placing the module near metal objects to maintain optimal signal strength.
    Datasheet: For detailed technical specifications, refer to the HC-06 Bluetooth Module Datasheet.
