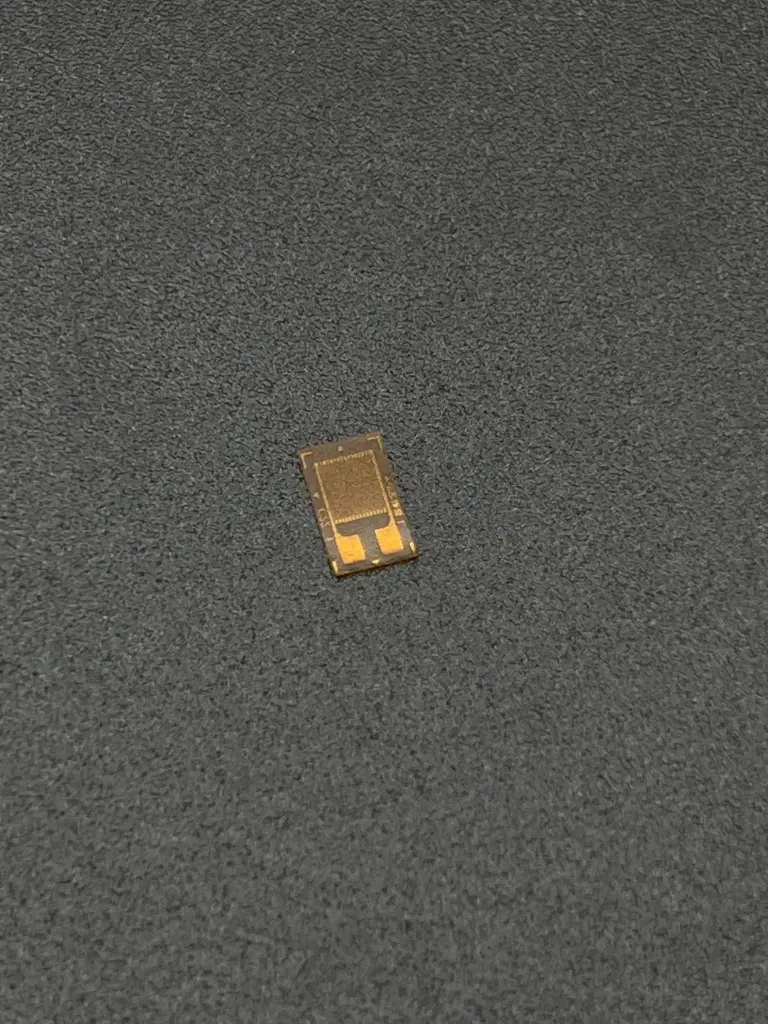

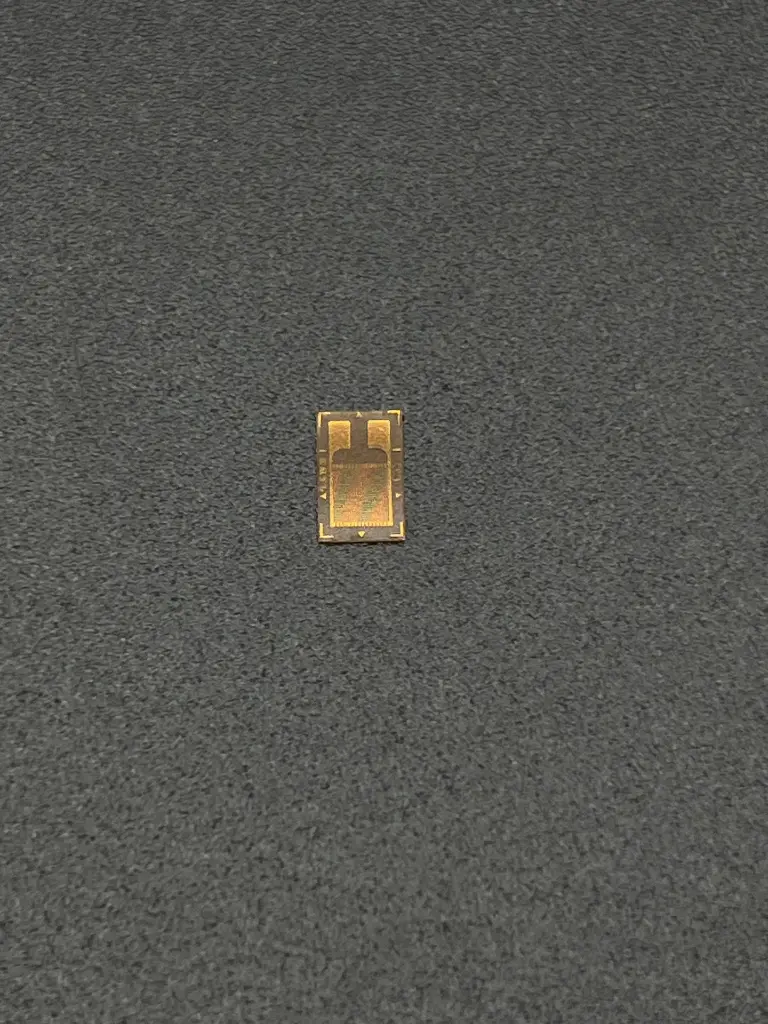

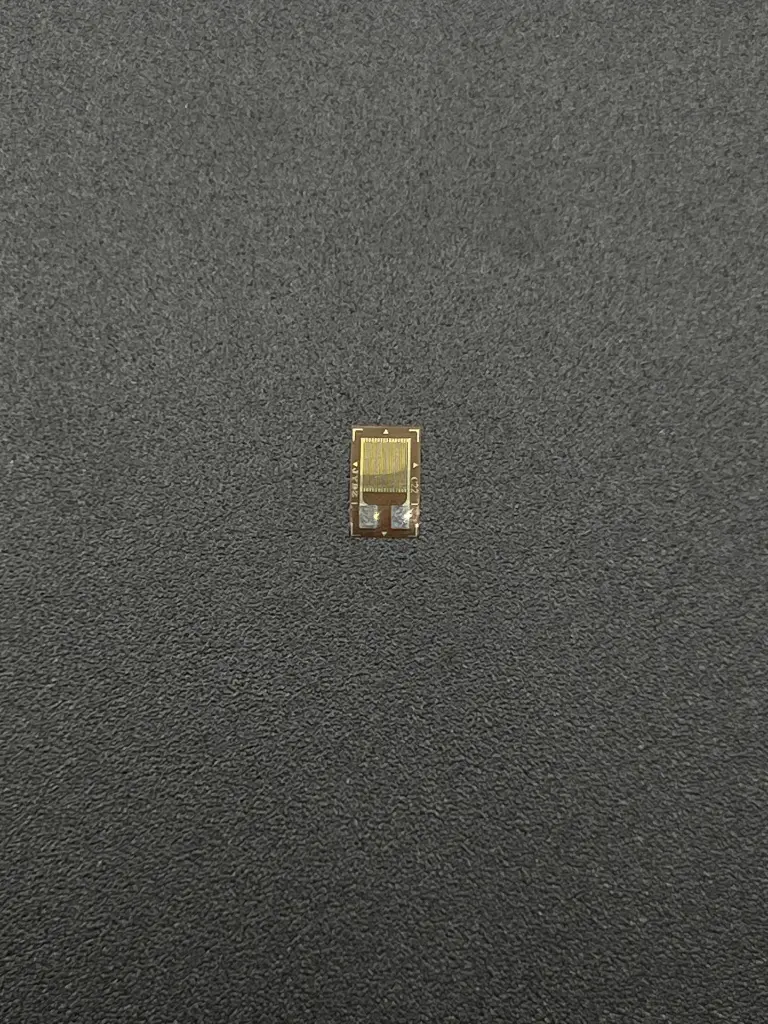

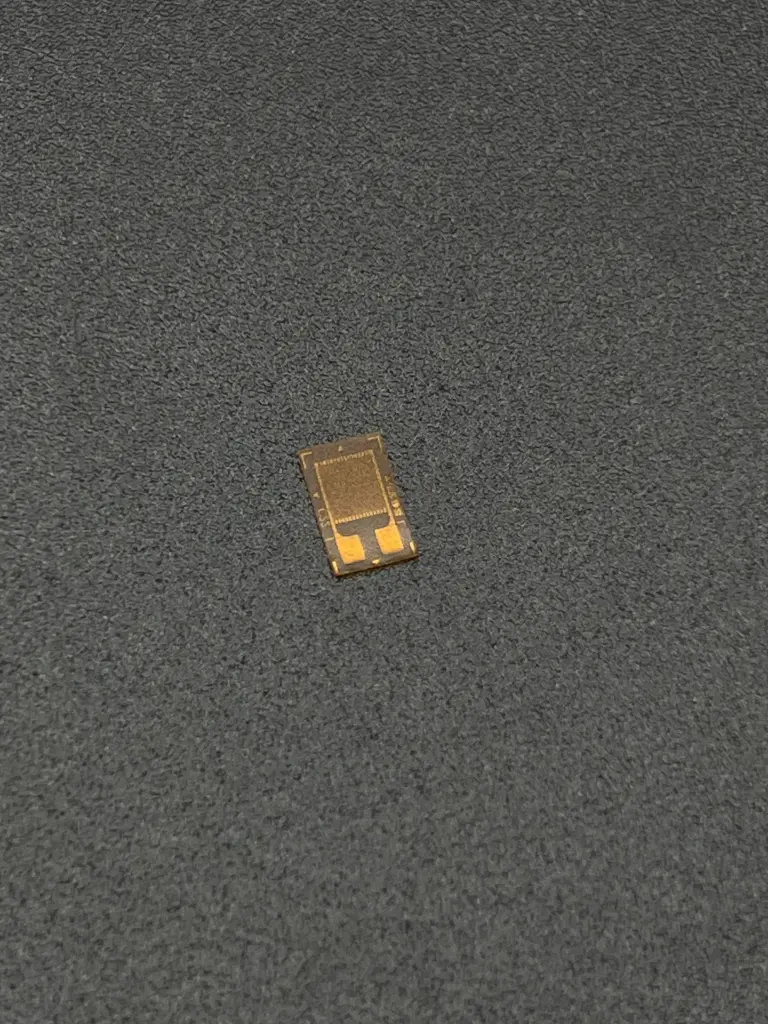

BF350 High Precision Resistance Strain Gauge
8 sold in last 24 hours
The BF350 High Precision Resistance Strain Gauge is a sensitive device used to measure strain (deformation) in various materials. It converts mechanical deformation into an electrical signal, allowing precise monitoring of structural changes. With its high accuracy and stability, the BF350 is ideal for applications in mechanical testing, structural health monitoring, and experimental stress analysis.
Key Features:
- High precision and sensitivity
- Stable performance over a wide range of temperatures
- Easy to install and use
- Low power consumption
- Durable and reliable construction
- Compatible with standard Wheatstone bridge circuits
- Gauge Factor: 2.0 ± 1%
- Resistance: 350Ω ± 0.1%
- Temperature Coefficient of Gauge Factor: ≤ 0.02%/°C
- Operating Temperature Range: -30°C to +80°C
- Dimensions: 7mm x 4mm (approximate)
- Weight: Negligible
- Adhesive: Recommended use with cyanoacrylate adhesive for mounting
- Lead Wire: Copper, tinned, 3mm length (standard)
- Mechanical Testing: Used in materials testing for precise strain measurements.
- Structural Health Monitoring: Applied in bridges, buildings, and other structures to monitor stress and detect potential failures.
- Experimental Stress Analysis: Utilized in laboratories and research to analyze stress distribution in materials.
- Load Cells: Integrated into load cells for accurate force measurement.
- Industrial Equipment: Installed in machinery to monitor strain and prevent overload conditions.
No Specifications
