HX711 Weighing sensor
6 sold in last 24 hours

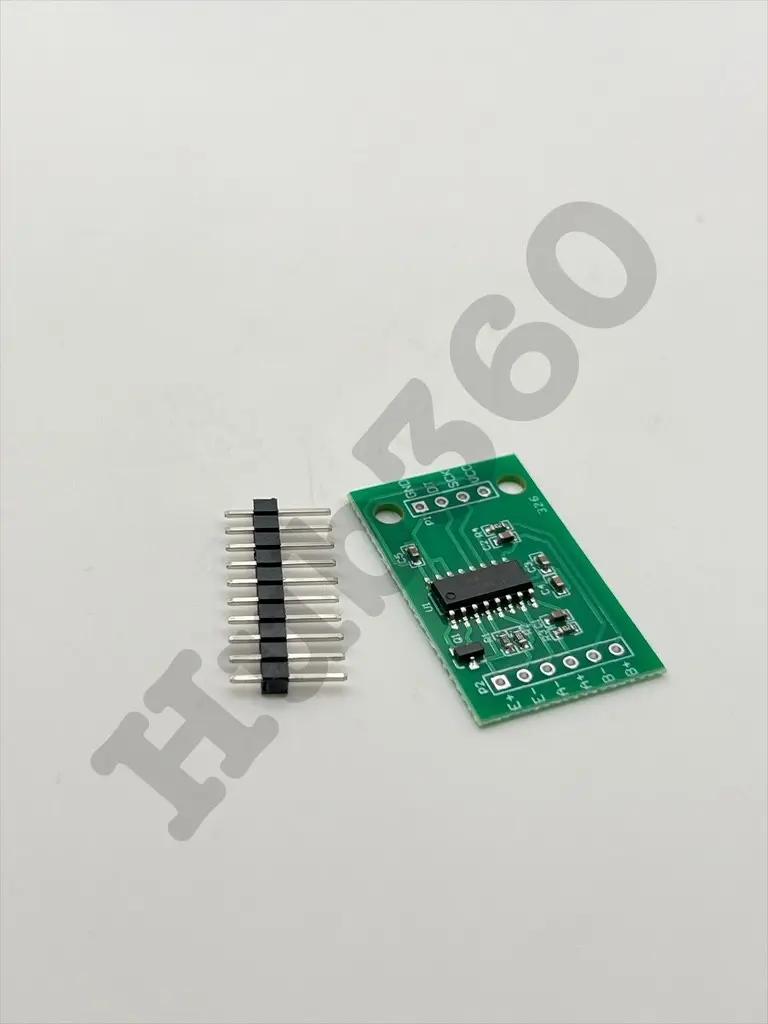

The HX711 Weighing Sensor is a precision 24-bit analog-to-digital converter (ADC) designed specifically for weigh scale applications. It is used to interface load cells to microcontrollers for accurate weight measurement. The HX711 provides high precision and low-noise performance, making it ideal for electronic scales, industrial weight measurement systems, and other precision weighing applications.
Key Features:
- 24-bit ADC: High-resolution 24-bit analog-to-digital conversion
- Dual-Channel: Two differential input channels for multiple load cells
- Low Noise: Low-noise performance for accurate weight measurements
- Integrated Power Supply Regulator: Provides stable voltage for the load cell
- Serial Interface: Simple two-wire serial interface (Clock and Data) for easy integration with microcontrollers
- Programmable Gain: Selectable gain of 32, 64, and 128 for different load cell sensitivity
- Resolution: 24-bit
- Channels: 2 differential input channels
- Gain Options: 32, 64, 128
- Operating Voltage: 2.7V to 5.5V
- Supply Current: Typically 1.5mA
- Power Down Current: Less than 1µA
- Input Differential Range: ±40mV (Gain = 128)
- Data Output Rate: 10Hz or 80Hz
- Interface: Two-wire serial interface (Clock and Data)

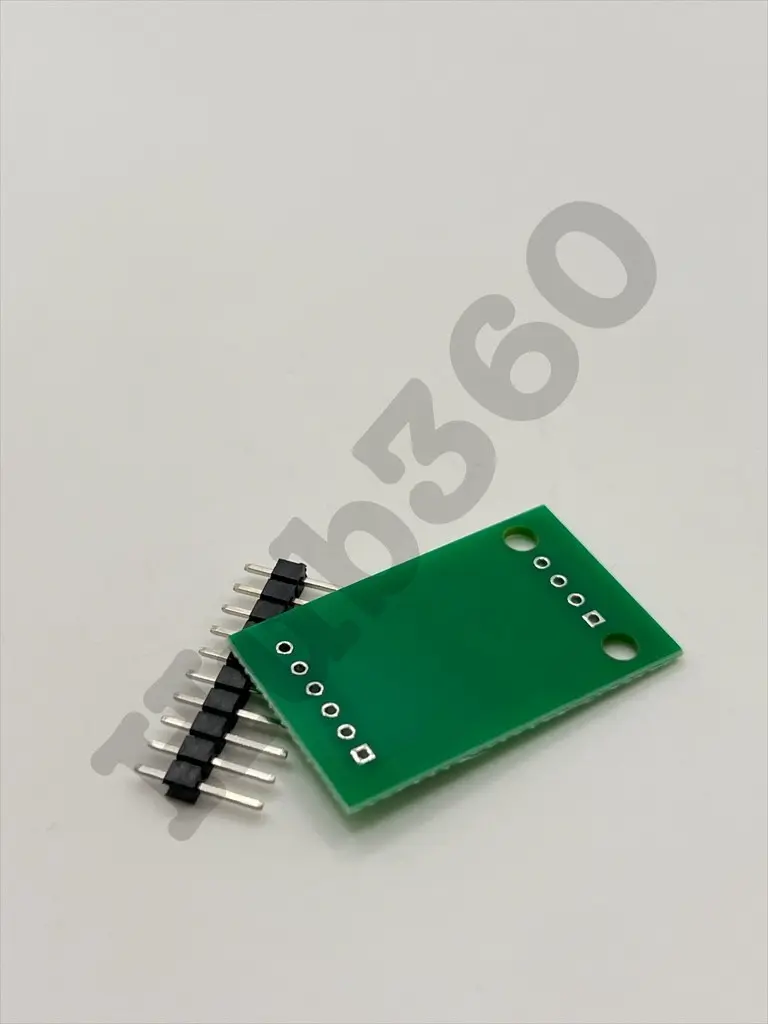

- Dimensions: Typically around 18mm x 18mm (for breakout boards)
- Operating Temperature Range: -40°C to +85°C
- Electronic Scales: Ideal for digital weighing scales and balances
- Industrial Weighing Systems: Used in industrial weight measurement and monitoring systems
- Force Measurement: Suitable for force measurement applications in engineering and testing
- DIY Projects: Perfect for hobbyists and makers building custom weighing devices
- Agricultural and Medical Devices: Used in specialized weighing equipment for agriculture and medical applications

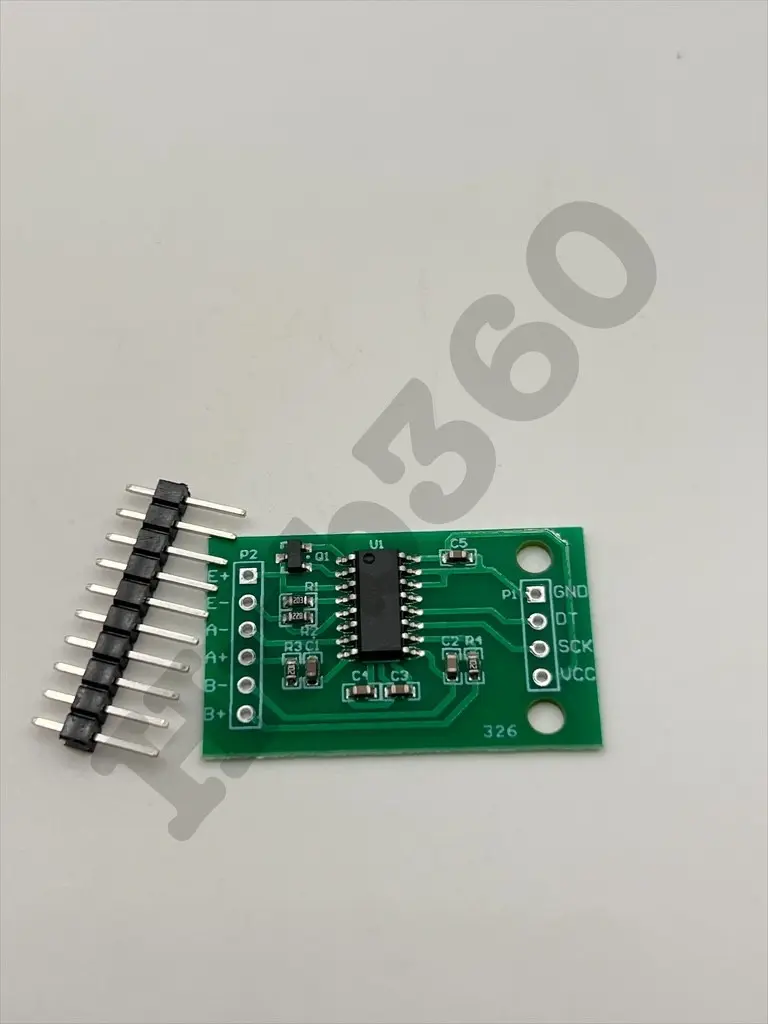

- Connection: Connect the load cell to the HX711 module's input channels.
- Power Supply: Provide a stable 2.7V to 5.5V power supply to the HX711 module.
- Microcontroller Interface: Connect the data and clock pins to the corresponding microcontroller pins.
- Programming: Use appropriate libraries or code to read and process the data from the HX711.
- Calibration: Calibrate the system using known weights to ensure accurate measurements.
- Wiring: Ensure correct wiring to avoid damage to the module and inaccurate readings.
- Power Supply: Use a stable power supply to minimize noise and ensure accurate measurements.
- Calibration: Regularly calibrate the sensor for maintaining measurement accuracy.
- Handling: Handle the sensor module carefully to avoid physical damage.
