Description

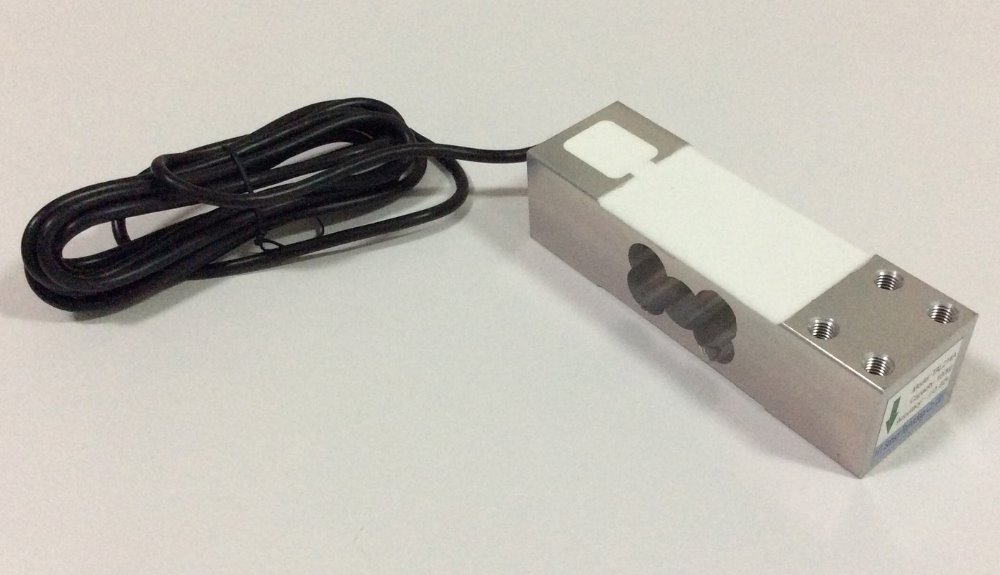

The 350kg Load Cell is a high-precision weight and force sensor designed for industrial and commercial applications. With a maximum capacity of 350kg and superior accuracy, it is ideal for weighing systems, force measurement setups, and material testing equipment. Its robust construction, temperature compensation, and IP66 protection ensure long-lasting performance even in harsh environments.
Key Features
- High Capacity: Measures loads up to 350kg
- Precision Accuracy: Provides reliable and consistent results
- Rugged Design: Built to withstand industrial use and harsh conditions
- Temperature Compensated: Stable performance across a wide range of temperatures
- Compact & Versatile: Fits space-constrained setups, compatible with different weighing systems
- Easy Integration: Standard wiring and compatibility with most signal conditioners and controllers
Technical Specification
- Capacities Available: 50, 75, 120, 200, 250, 350, 400 kg
- Accuracy Class: 4000 n.OIML
- Rated Output: 2 mV/V ± 10%
- Combined Error: < ±0.017%
- Non-Repeatability: < ±0.01%
- Creep (30 min): < ±0.016%
- Zero Balance: < ±2%
- Temperature Effect on Zero Balance: < ±0.002% / °C
- Temperature Effect on Span: < ±0.0012% / °C
- Compensated Temperature Range: -10°C to +40°C
- Operating Temperature Range: -20°C to +70°C
- Safe Overload: 150%
- Ultimate Overload: 200%
- Deflection at Nominal Capacity: 0.3 – 0.5 mm
- Input Resistance: 400Ω ± 20
- Output Resistance: 350Ω ± 3
- Insulation Resistance: > 5000 MΩ @ 100V
- Recommended Supply Voltage: 10V (max 15V)
- Environmental Protection: IP66
- Cable Length: 5m
- Platform Size (Max):
- 600 × 600 mm (for 50–350kg capacities)
- 800 × 800 mm (for 250 & 400kg capacities)
- Shipping Weight: 1.8kg (for 50–350kg versions)
Application
- Platform scales
- Hopper & tank weighing systems
- Industrial automation
- Material testing machines
- Force measurement setups
- Process control in manufacturing
Wiring Connections
Black power: E− (Excitation −)
White power: E+ (Excitation +)
Red: S− (Signal −)
Green: S+ (Signal +)
For more detailed technical information, refer to the Load Cell Datasheet.
Caution
- Do not exceed the rated capacity to avoid permanent damage.
- Handle carefully to prevent mechanical or electrical failure.
- Protect from moisture, corrosive substances, and extreme conditions.
