Description

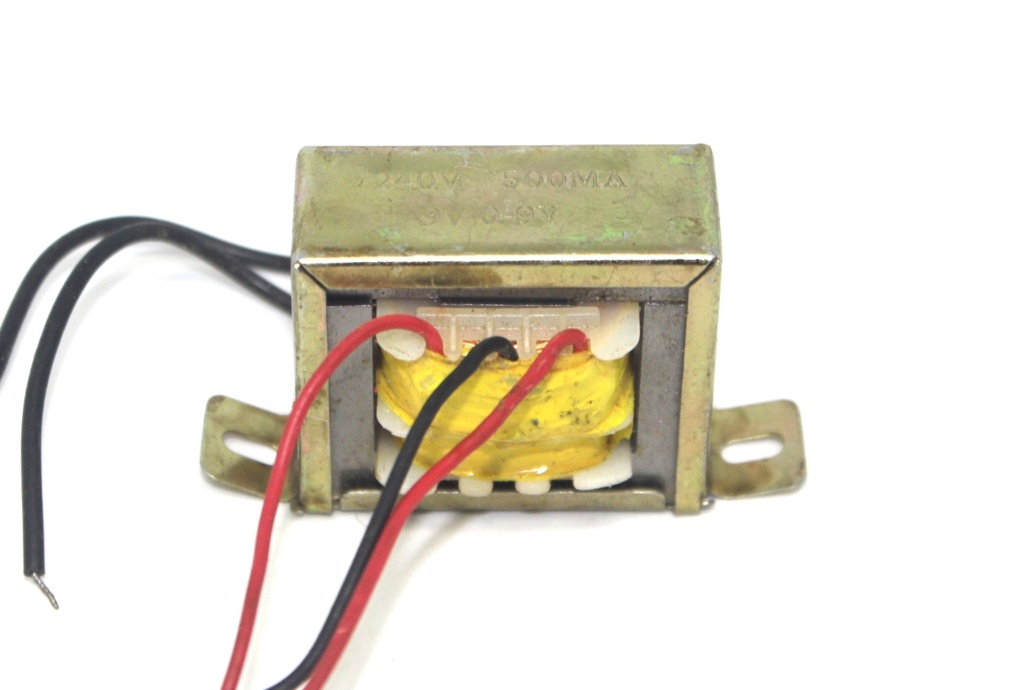

This small transformer provides dual 6V AC outputs with a center tap, offering a stable 6V AC supply for low-power applications. The center tap allows for versatile configurations, including 6V AC, 12V AC (by combining both outputs), and full-wave rectified DC outputs . Ideal for electronic projects, small appliances, and DIY electronics that require a 6V AC supply with a neutral point.
Key Features
- Input Voltage: 220V AC (50/60Hz)
- Output Voltage: 6V-0-6V AC (dual 6V with center tap)
- Current Rating: 300mA
- Center-tap configuration for versatile applications, supports both 6V and 12V rectified outputs, full-wave rectification, and dual-rail power supplies
- Reliable step-down conversion: efficiently reduces 220V mains voltage to safe, usable levels
- Galvanic isolation between primary and secondary windings enhances safety in electrical circuits
- Laminated iron core with copper windings for durability, low energy loss, and stable performance
- Class B insulation (up to 130°C) for safe operation under load
Specification
| Parameter | Specification |
|---|---|
| Transformer Type | Center-Tapped Step-Down |
| Primary Voltage | 220V AC (50/60Hz) |
| Secondary Voltage | 6V-0-6V AC |
| Current Rating | 300mA |
| Power Rating | ~3.6VA |
| Core Type | Laminated Iron Core |
| Winding Material | Copper Wire |
| Insulation Class | Class B (up to 130°C) |
| Efficiency | 85% – 90% |
| Frequency | 50Hz / 60Hz |
Application
- Electronic projects and DIY circuits
- Low-power DC power supplies: use with bridge rectifier and filter capacitor
- Audio amplifier circuits: provides dual-rail power for analog audio
- Battery charging circuits and power adapters
- Embedded systems and control boards
- LED drivers and instrumentation circuits
