Description

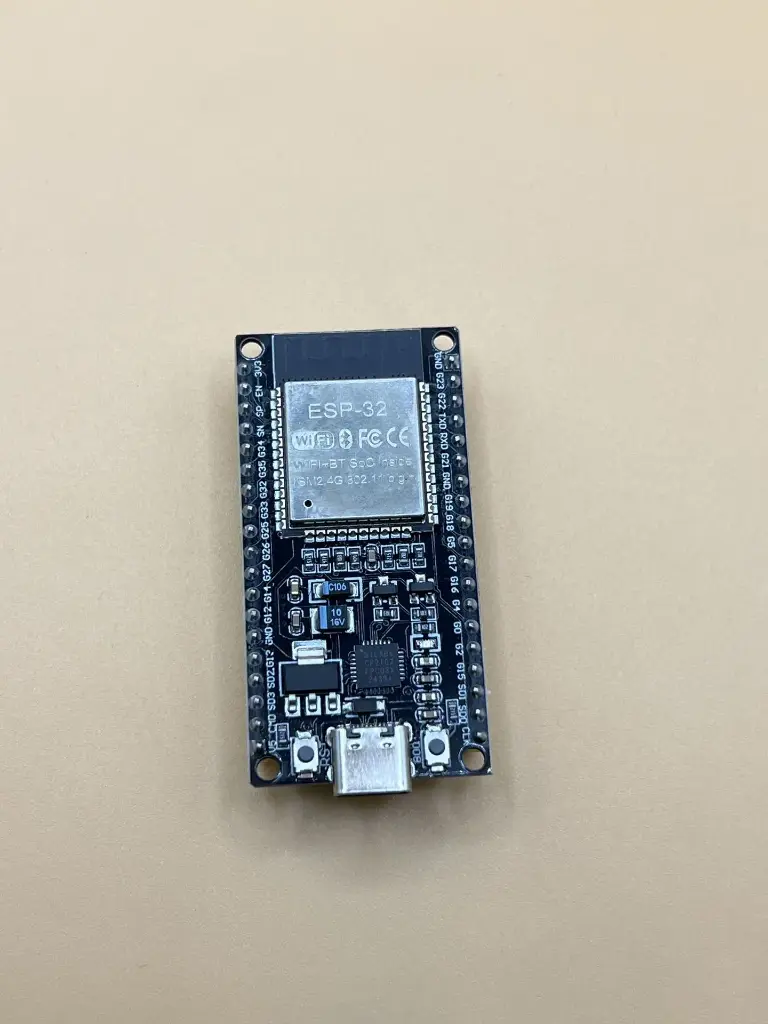

The ESP32 Development Board (38 pins, CP2102, Type-C) is a high-performance microcontroller board designed for IoT, robotics, and embedded system projects. Featuring the powerful ESP32-WROOM module, it integrates dual-core 32-bit processing, Wi-Fi, and Bluetooth v4.2 connectivity, making it ideal for wireless communication and control applications. With 38 pins including GPIOs, ADCs, DACs, PWM, SPI, I2C, and UART, this board offers extensive versatility for developers, students, and makers. The USB Type-C connector ensures reliable programming and power delivery for modern workflows.
Key Features
- Based on ESP32-WROOM module with CP2102 USB-to-UART chip
- Dual-core Xtensa® 32-bit processor, clocked up to 240 MHz
- Integrated Wi-Fi (802.11 b/g/n) for 2.4 GHz networks
- Bluetooth v4.2 BR/EDR + BLE for seamless connectivity
- 38 pins total with up to 34 GPIOs (ADC, DAC, PWM, SPI, I2C, UART)
- 12-bit ADC resolution with up to 18 input channels
- USB Type-C interface for power and programming
- Breadboard-friendly compact design
- Compatible with Arduino IDE, ESP-IDF, PlatformIO
Specification
- Processor: 32-bit Dual-Core Xtensa® LX6, up to 240 MHz
- USB-UART Chip: CP2102
- Flash Memory: 4 MB
- Power Supply: 5V (via USB Type-C)
- I/O Voltage: 3.3V
- Wi-Fi: 802.11 b/g/n (2.4 GHz)
- Bluetooth: v4.2 (Classic + BLE)
- ADC: 12-bit (up to 18 channels)
- GPIO: Up to 34
- Dimensions: Breadboard-friendly, 38-pin layout
Application
- IoT devices and smart home automation
- Robotics and motor control
- Wireless sensor networks
- Data logging and remote monitoring
- DIY electronics and STEM education
- Rapid prototyping and product development
