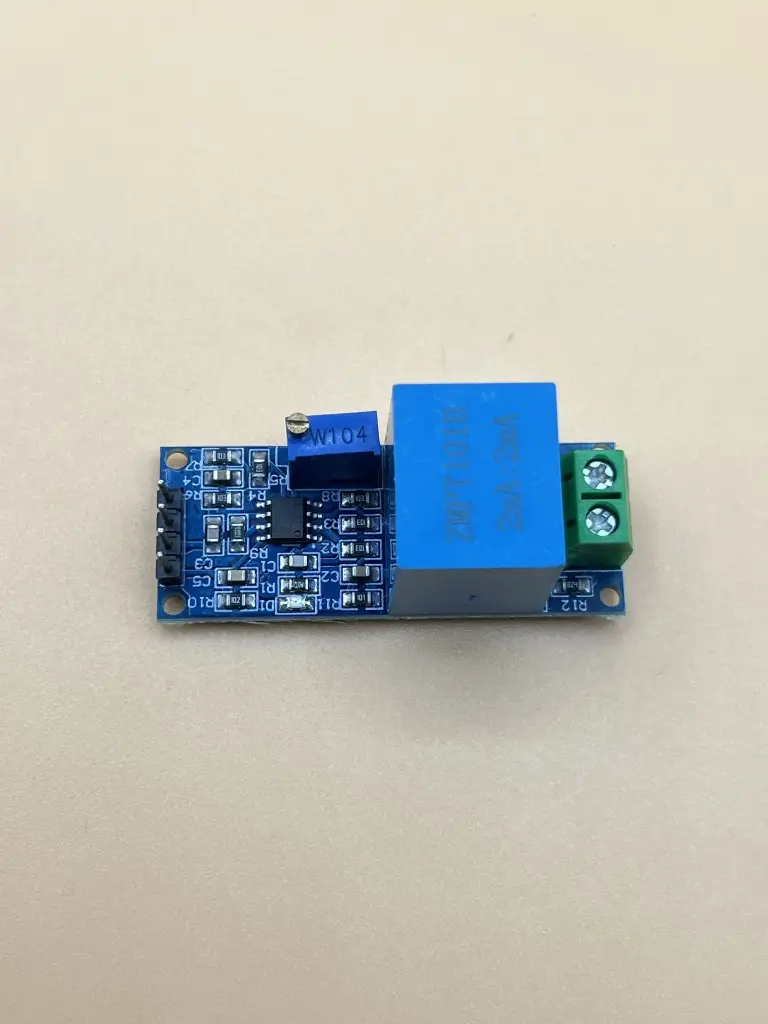

ZMPT101b Single phase AC Active Output Voltage Transformer, voltage Sensor Module
The Single Phase AC Active Output Voltage Transformer, Voltage Sensor Module is designed to accurately measure AC voltage in single-phase systems. This module is ideal for use in various applications, including energy monitoring, home automation, and industrial control systems, providing reliable and precise voltage readings.
Key Features:
- High Accuracy: Provides precise voltage measurements.
- Wide Voltage Range: Suitable for a wide range of AC voltages.
- Active Output: Delivers active voltage output proportional to the input AC voltage.
- Easy Integration: Simple to integrate with microcontrollers and other monitoring systems.
- Compact Design: Small and lightweight for easy installation.
- Isolation: Provides electrical isolation between the input and output.
- Input Voltage Range: 0-250V AC
- Output Voltage Range: 0-5V DC (proportional to input AC voltage)
- Accuracy: ±1%
- Operating Temperature Range: -40°C to +85°C
- Isolation Voltage: 3000V AC
- Response Time: < 200ms
- Frequency Range: 50/60Hz
- Power Supply: 5V DC
- Dimensions: 40mm x 25mm x 15mm
- Energy Monitoring: Used in energy meters and power monitoring systems.
- Home Automation: Integrates into smart home systems for voltage monitoring.
- Industrial Control: Suitable for industrial automation and control systems.
- Power Quality Monitoring: Helps in monitoring and analyzing power quality.
- Safety Systems: Used in safety monitoring and alarm systems.
No Specifications
