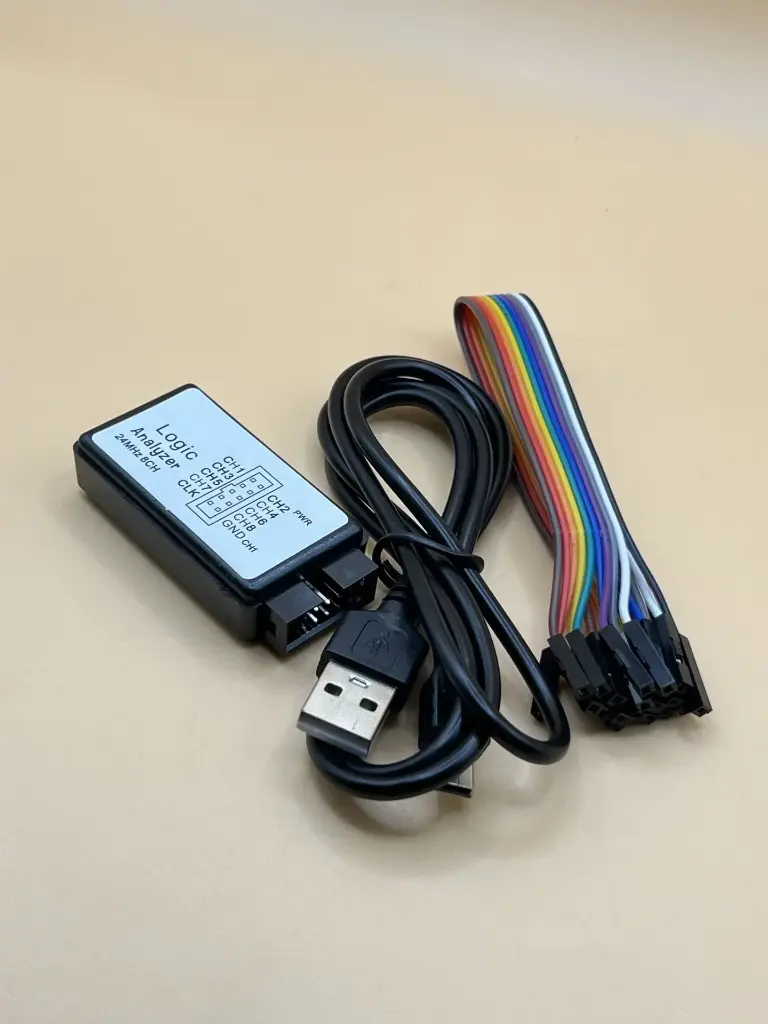

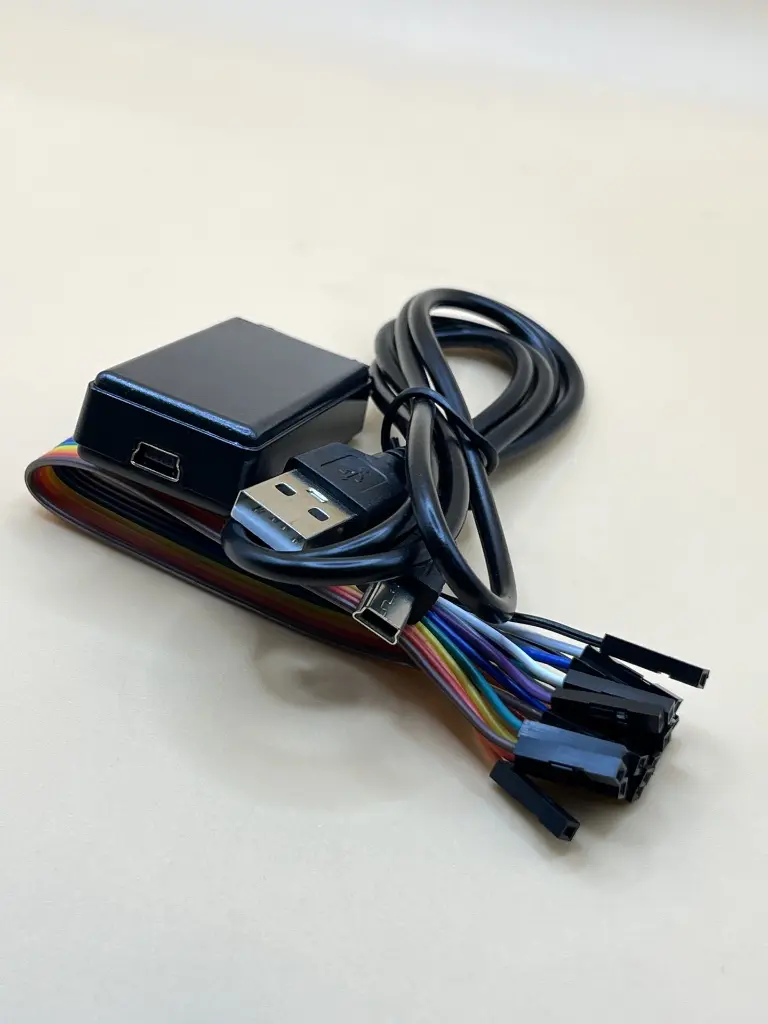

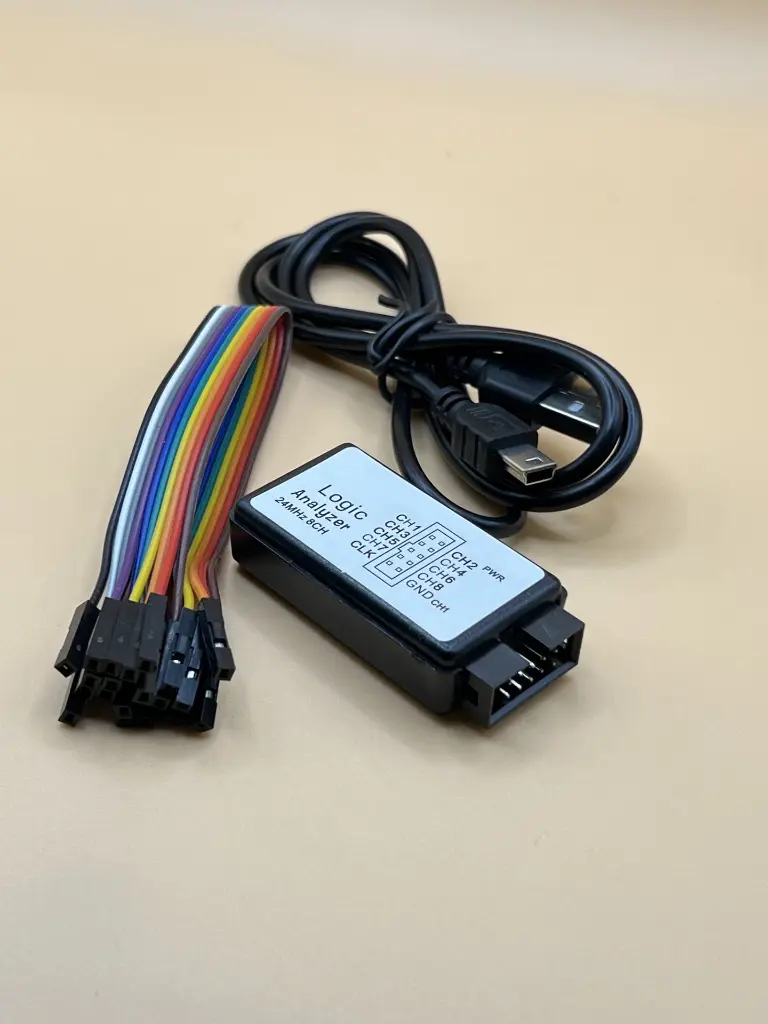

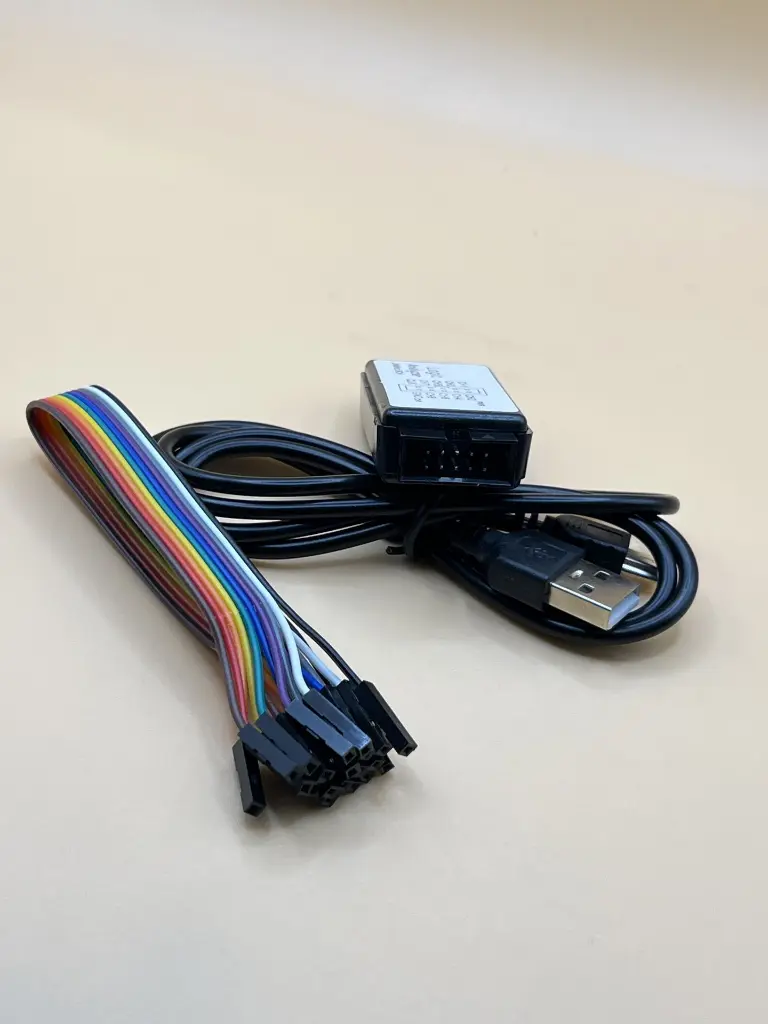

Description: The USB Logic Analyzer is a powerful and versatile tool designed for capturing and analyzing digital signals. It is particularly suitable for debugging ARM and FPGA systems, offering high-speed sampling, multiple channels, and a user-friendly interface. This logic analyzer provides real-time data acquisition and detailed signal analysis, making it an essential tool for engineers and developers working with complex digital systems.
Key Features:
- High-speed sampling rate for accurate signal capture
- Multiple channels for comprehensive signal analysis
- USB interface for easy connection to a PC
- Compatible with popular logic analysis software
- Real-time data acquisition and analysis
- Compact and portable design
- Sampling Rate: Up to 24 MHz
- Number of Channels: 8 or 16
- Input Voltage Range: 1.8V to 5.5V
- Communication Interface: USB 2.0
- Compatible Software: Sigrok, Saleae Logic, etc.
- Operating System Compatibility: Windows, macOS, Linux
- Operating Temperature Range: 0°C to +50°C
- ARM and FPGA debugging
- Digital signal analysis
- Protocol analysis (I2C, SPI, UART, etc.)
- Embedded system development
- Electronics testing and troubleshooting
No Specifications
