Description

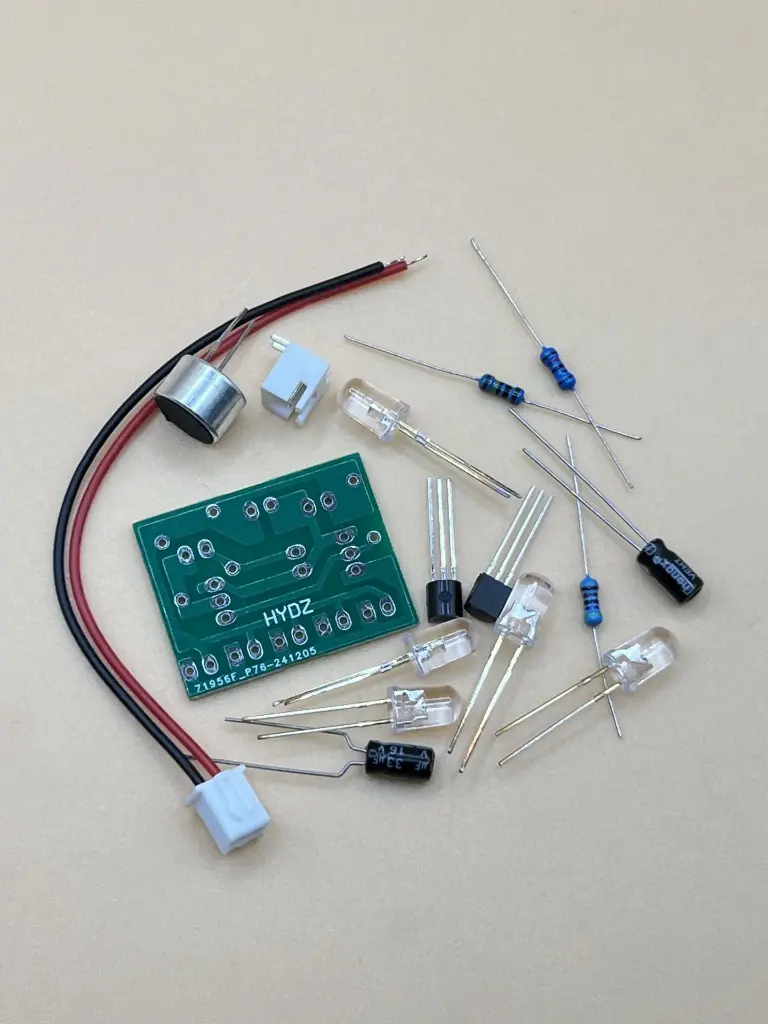

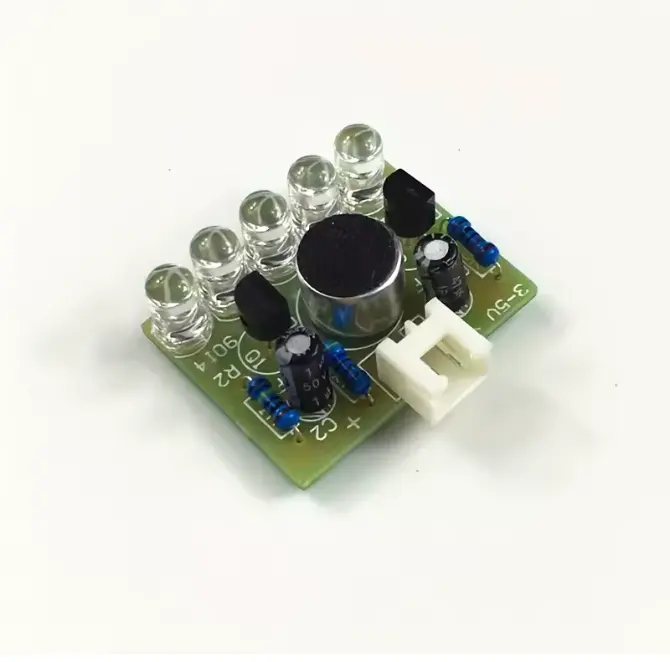

The Voice-Controlled LED Melody Light Kit is a fun and educational DIY soldering project that combines sound and light. It consists of a power supply circuit, a microphone amplification circuit, and an LED indicator circuit. Once assembled, the five LEDs flash and dance in rhythm with music or other sounds—the louder the sound, the brighter the LEDs. Place it near a speaker and watch the lights move to the beat, creating a wonderful melody of sound and light.
Key Features
- Sound-Reactive LEDs: Five LEDs flash and move with the rhythm and volume of music or sound
- Volume-Proportional Brightness: The louder the sound, the brighter the LEDs glow
- Educational Value: Learn basic electronics, microphone amplification, and soldering skills
- Beginner-Friendly: Simple circuit design suitable for children, beginners, and father-son DIY projects
- Compact Size: Small 34×25mm board fits easily into tight spaces and custom enclosures
Specifications
| Parameter | Specification |
|---|---|
| Operating Voltage | DC 3V – 5.5V |
| Operating Temperature | -25°C to +85°C |
| Operating Humidity | 5% – 95% RH |
| Board Size | 34mm × 25mm |
| LED Count | 5 |
| Input | 3.5mm audio jack (J1) or onboard microphone (varies by kit) |
| Circuit Sections | Power supply, microphone amplifier, LED driver |
Applications
- Soldering Practice: Ideal for learning soldering techniques and circuit assembly
- Educational Projects: Teach children and beginners about electronics and sound amplification
- DIY Fun: Father-son bonding project or classroom activity
- Decorative Lighting: Add a sound-reactive light display near speakers, TVs, or music systems
- Prototyping: Learn how microphone amplification and LED drivers work
