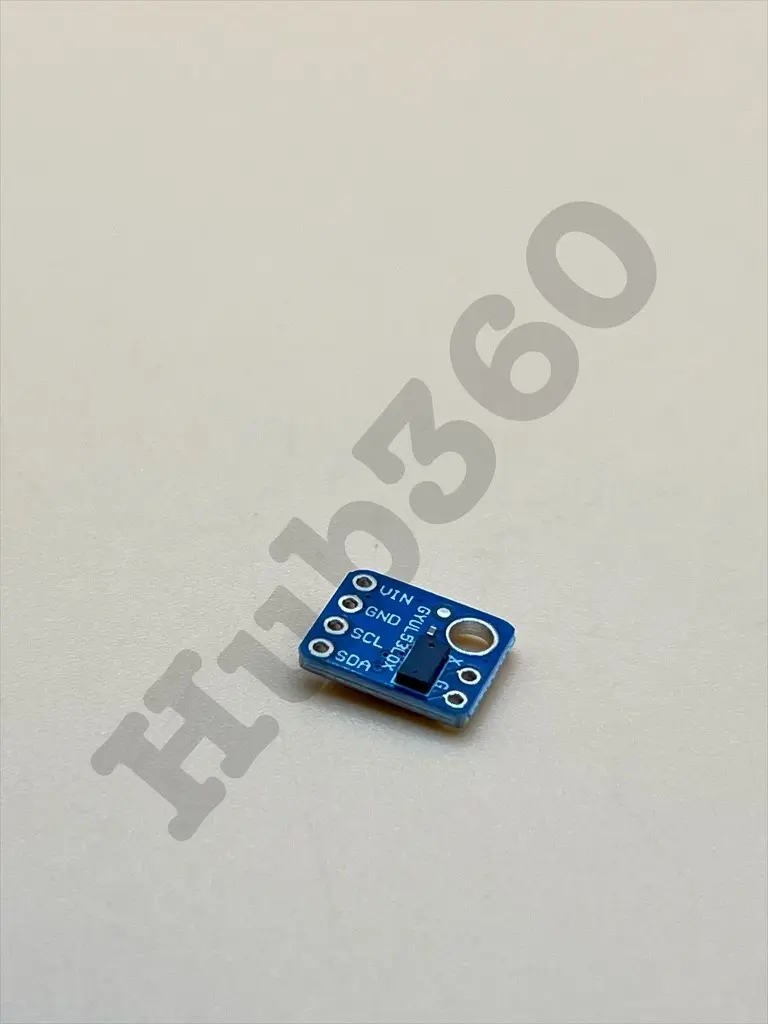

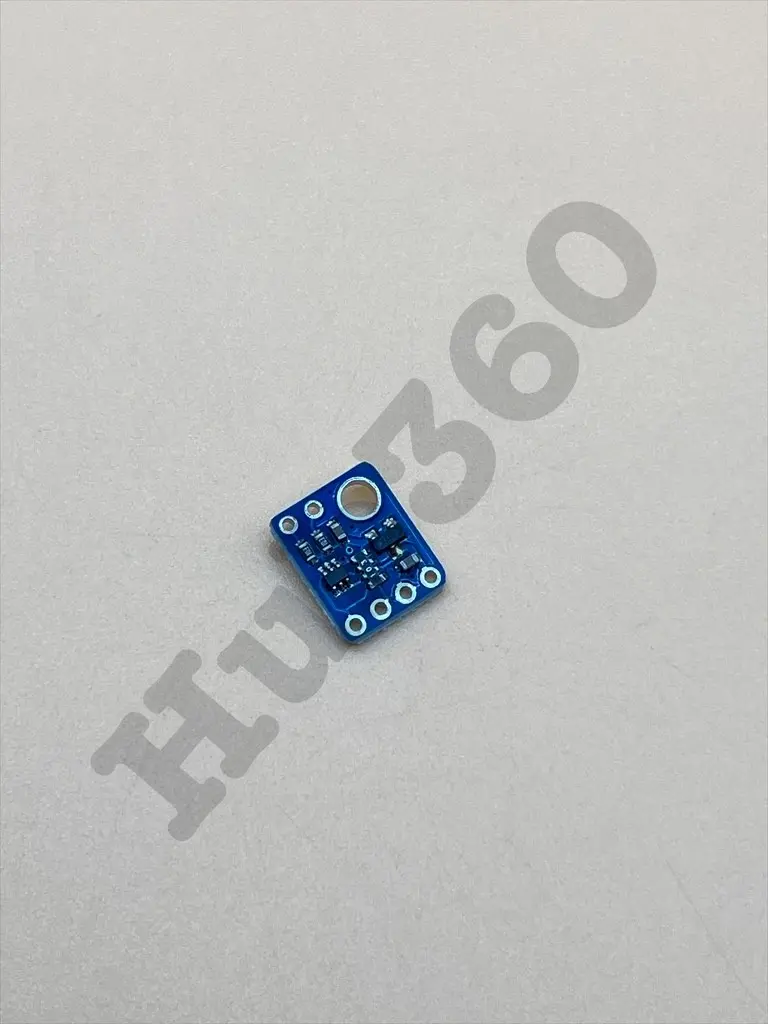

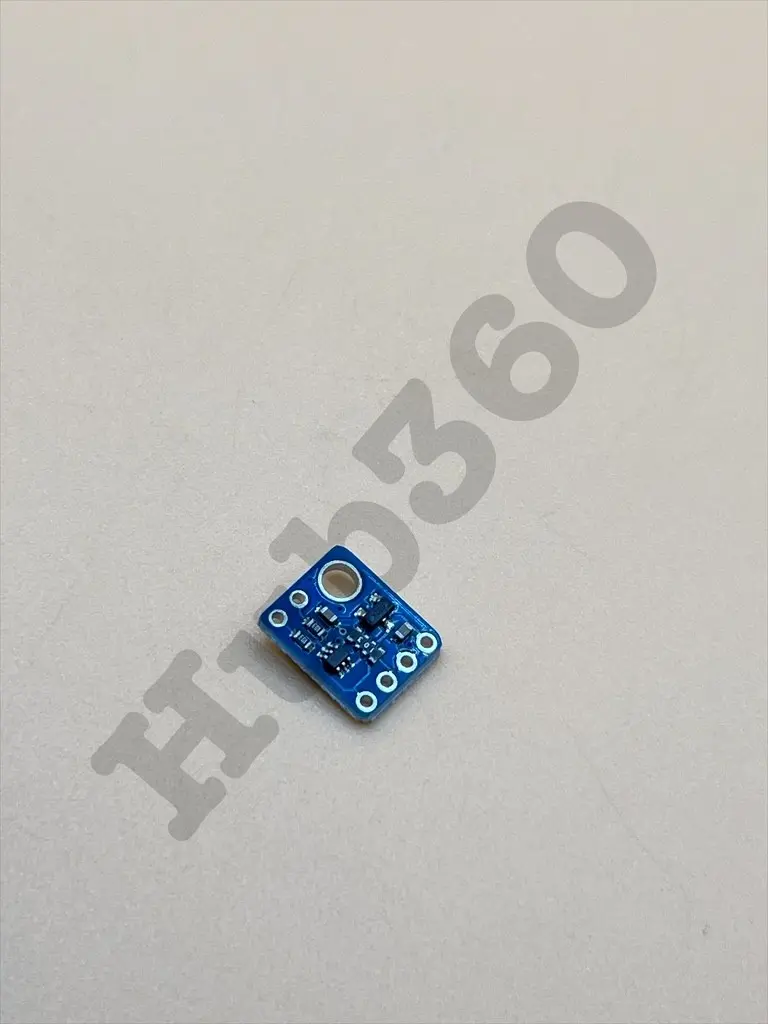

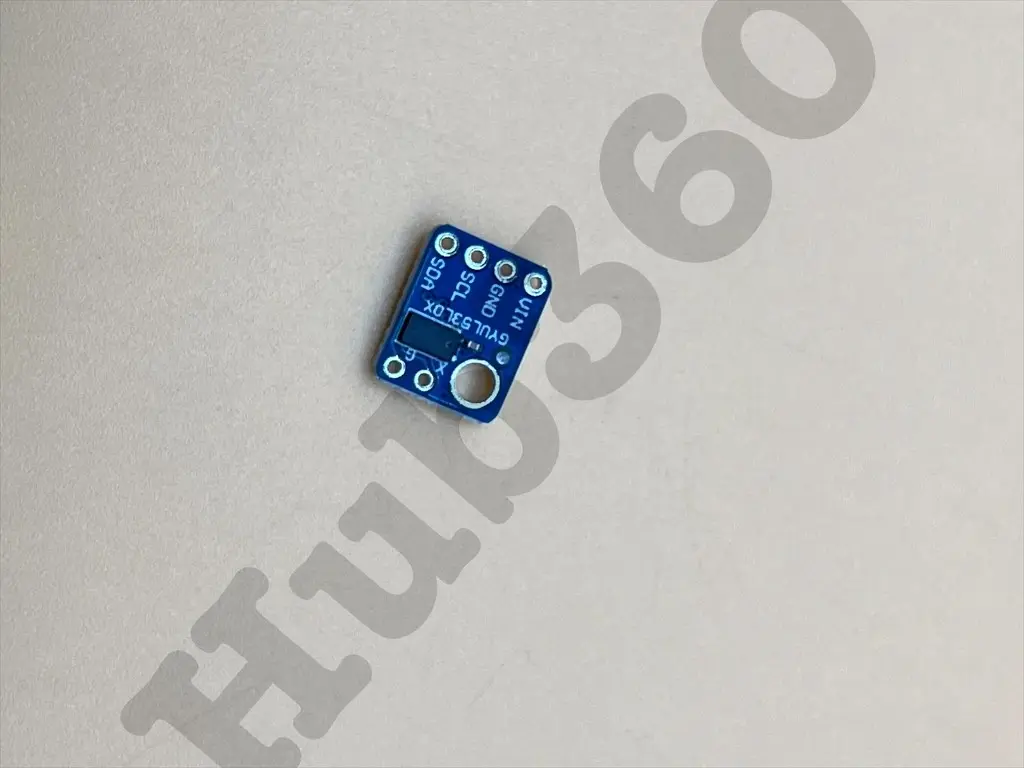

GY-530 VL53LOX Laser Ranging sensor
8 sold in last 24 hours
Description:
The GY-530 VL53L0X Laser Ranging Sensor is a compact and high-precision distance measurement module based on the VL53L0X sensor. It uses Time-of-Flight (ToF) technology to accurately measure distances up to 2 meters. This sensor is ideal for applications requiring precise distance measurement, such as robotics, drones, and proximity sensing.
Key Features:
- High-precision distance measurement: Uses ToF technology for accurate ranging.
- Measurement range: Up to 2 meters.
- Fast ranging speed: Provides quick distance readings.
- I2C interface: Easy communication with microcontrollers and development boards.
- Low power consumption: Suitable for battery-operated devices.
- Compact size: Small form factor for easy integration into various projects.
- Multi-object detection: Capable of detecting multiple objects within its range.
- Sensor: VL53L0X
- Operating Voltage: 2.6V to 5.5V DC
- Communication Interface: I2C (default address: 0x29)
- Measurement Range: 30mm to 2000mm
- Ranging Speed: Up to 50 Hz
- Resolution: 1mm
- Field of View (FoV): 25 degrees
- Dimensions: Compact module size (refer to datasheet for exact dimensions)
- Weight: Lightweight design
- Robotics: Provides accurate distance measurement for obstacle avoidance and navigation.
- Drones: Used for altitude holding and collision avoidance.
- Proximity sensing: Ideal for applications requiring precise proximity detection.
- Consumer electronics: Enhances user experience with accurate distance sensing.
- Industrial automation: Used in systems requiring precise distance measurements for automation.
- Security systems: Provides reliable ranging for intrusion detection.
