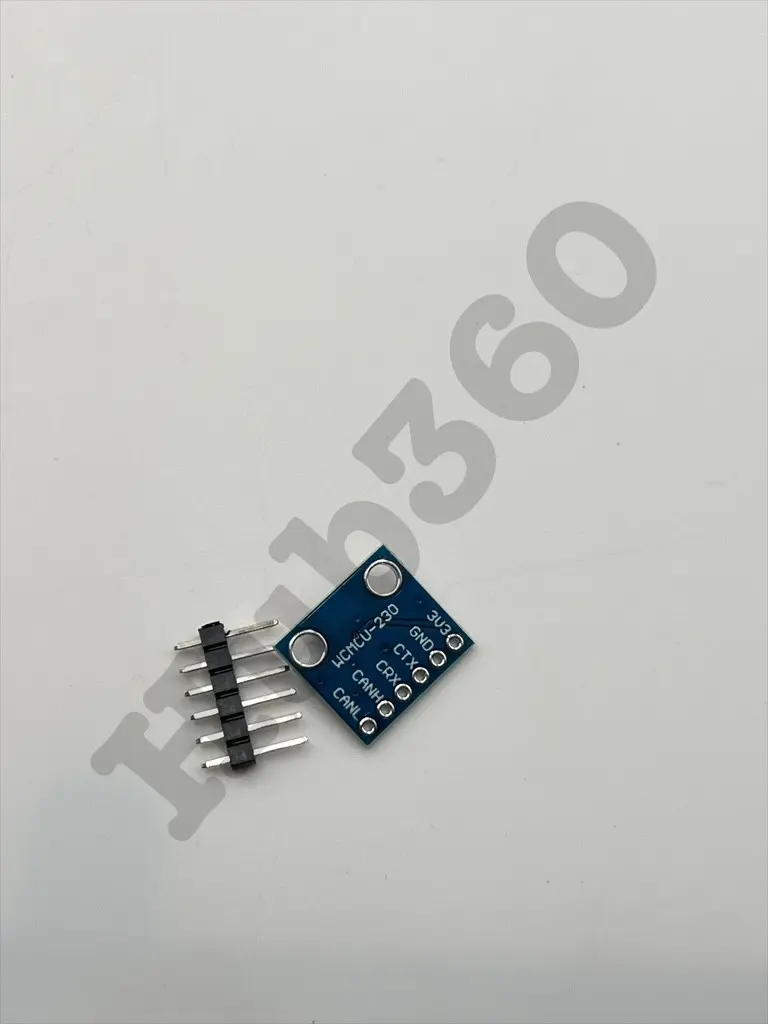

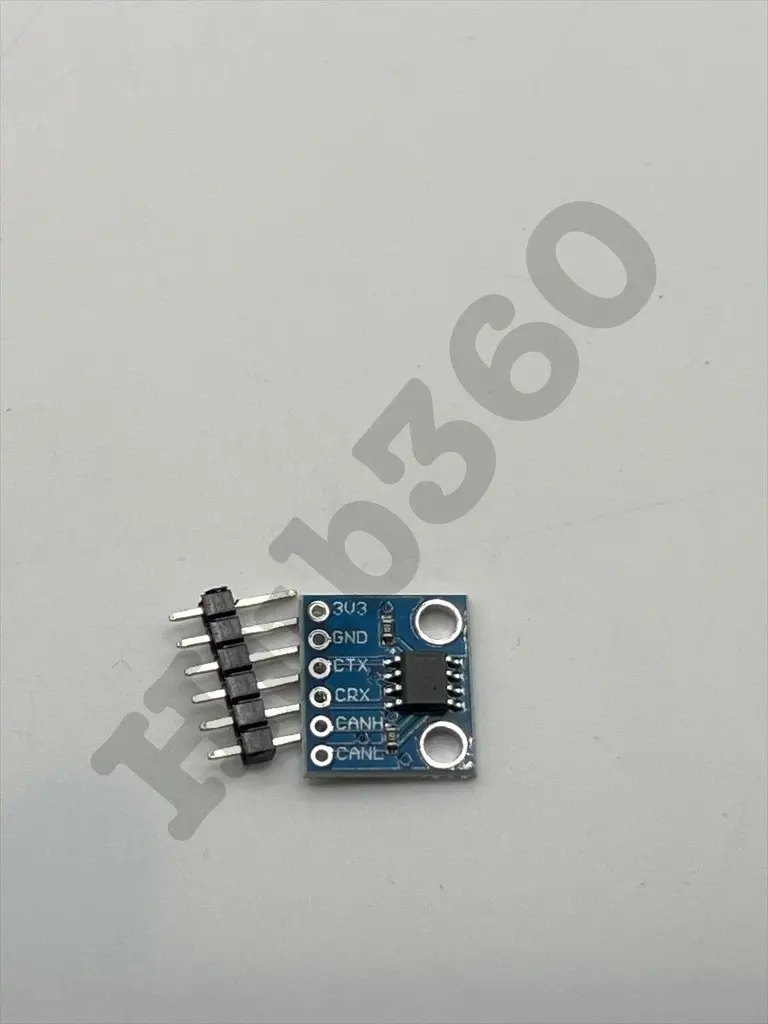

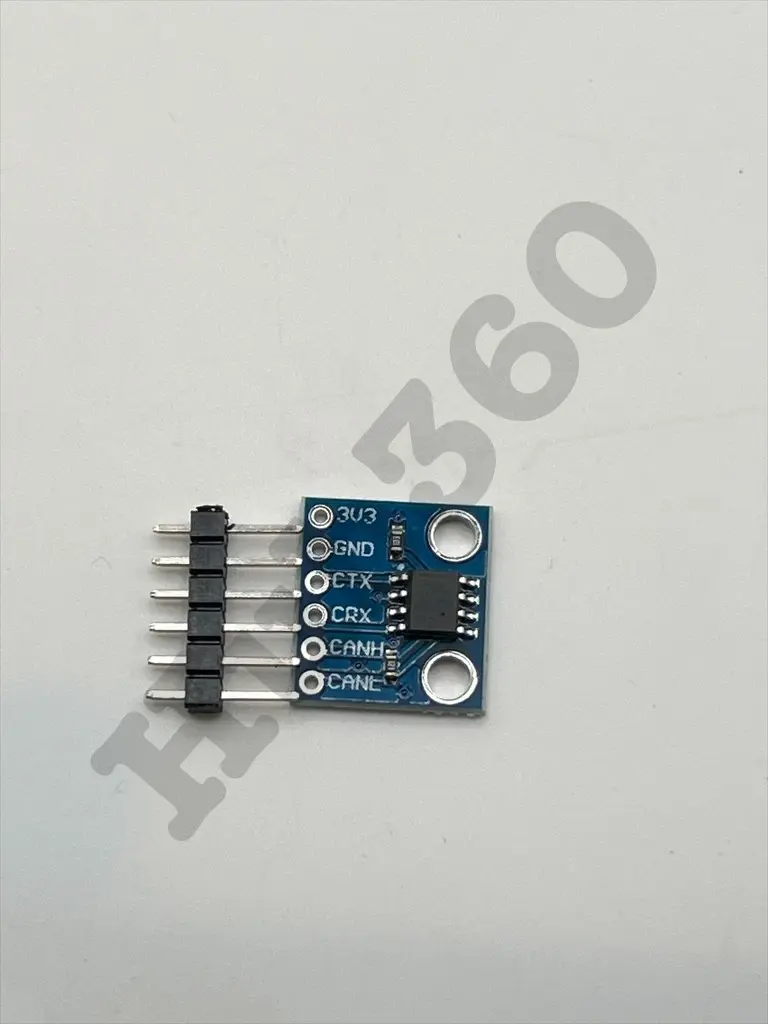

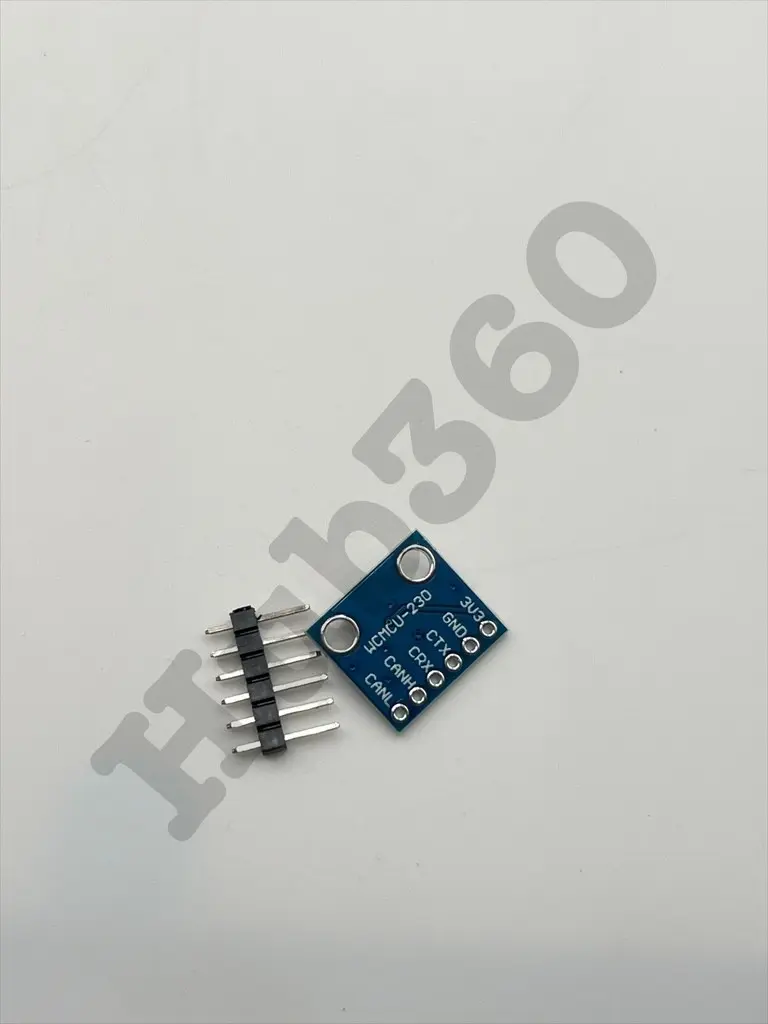

MCU-230 SN65HVD230 BUS CAN Transceiver module

The MCU-230 SN65HVD230 BUS CAN Transceiver module is a high-speed and reliable device designed for Controller Area Network (CAN) communication. It integrates the SN65HVD230 transceiver chip, which ensures robust and stable data transfer in automotive and industrial applications. This module supports both high-speed and fault-tolerant CAN networks, making it ideal for applications requiring dependable communication over long distances and in harsh environments. Key Features:

• High-speed CAN transceiver
• Compatible with ISO 11898-2 standard
• Wide operating voltage range
• Low current consumption
• High ESD protection
• Thermal shutdown protection
• Supports up to 1 Mbps data rates
• Robust against electromagnetic interference

Technical Specifications:

• Transceiver Chip: SN65HVD230
• Operating Voltage Range: 3.3V to 5.5V
• Data Rate: Up to 1 Mbps
• Bus Pin ESD Protection: ±16 kV Human Body Model (HBM)
• Thermal Shutdown: Yes
• Operating Temperature Range: -40°C to 85°C
• Package Type: Module
• Dimensions: Compact size for easy integration
• Weight: Lightweight for portability

Applications:

• Automotive CAN networks
• Industrial automation
• Building automation
• Medical equipment
• Robotics
• Any application requiring robust and reliable CAN communication

Datasheet: For detailed technical information, refer to the MCU-230 SN65HVD230 BUS CAN Transceiver Module Datasheet.
