Description

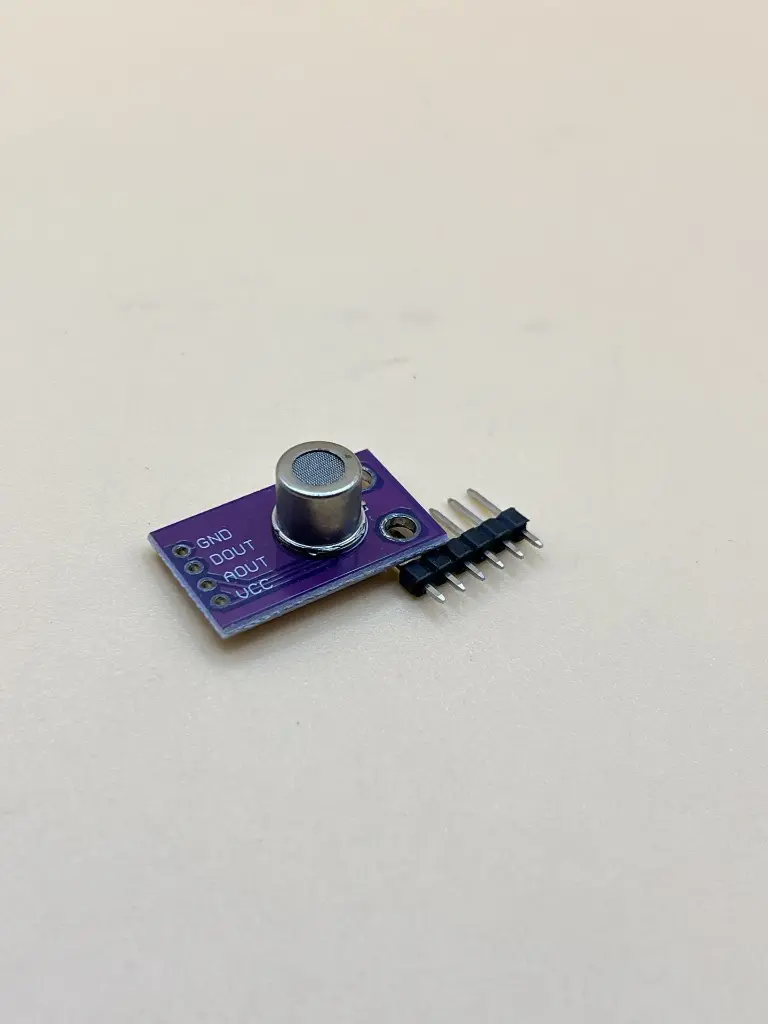

The MS1100 sensor is designed to detect various volatile organic compounds (VOCs) including formaldehyde and benzene in the air. It is widely used in indoor air quality monitoring systems to measure the concentration of harmful gases that can affect health. The sensor module provides analog voltage output corresponding to the concentration of VOCs detected, making it suitable for integration with microcontrollers and monitoring systems.
Key Features:
- Detects VOCs, formaldehyde, and benzene gases
- Analog voltage output proportional to gas concentration
- High sensitivity and fast response time
- Suitable for indoor air quality monitoring
- Low power consumption
- Compact size for easy integration into systems
- Operating voltage: 5V DC
Technical Specifications:
- Detection Gases: VOCs, Formaldehyde, Benzene
- Output: Analog voltage
- Sensing Principle: Semiconductor gas sensor
- Operating Voltage: 5V DC
- Power Consumption: 350 - 380 mW
- Operating Temperature Range: -10„ƒ ~ 50„ƒ
Applications:
- Indoor air quality monitoring
- Environmental monitoring
- HVAC systems
- Smart homes and buildings
- Safety and security systems
Datasheet:
For detailed technical information, please refer to the MS1100 Datasheet.
