Description

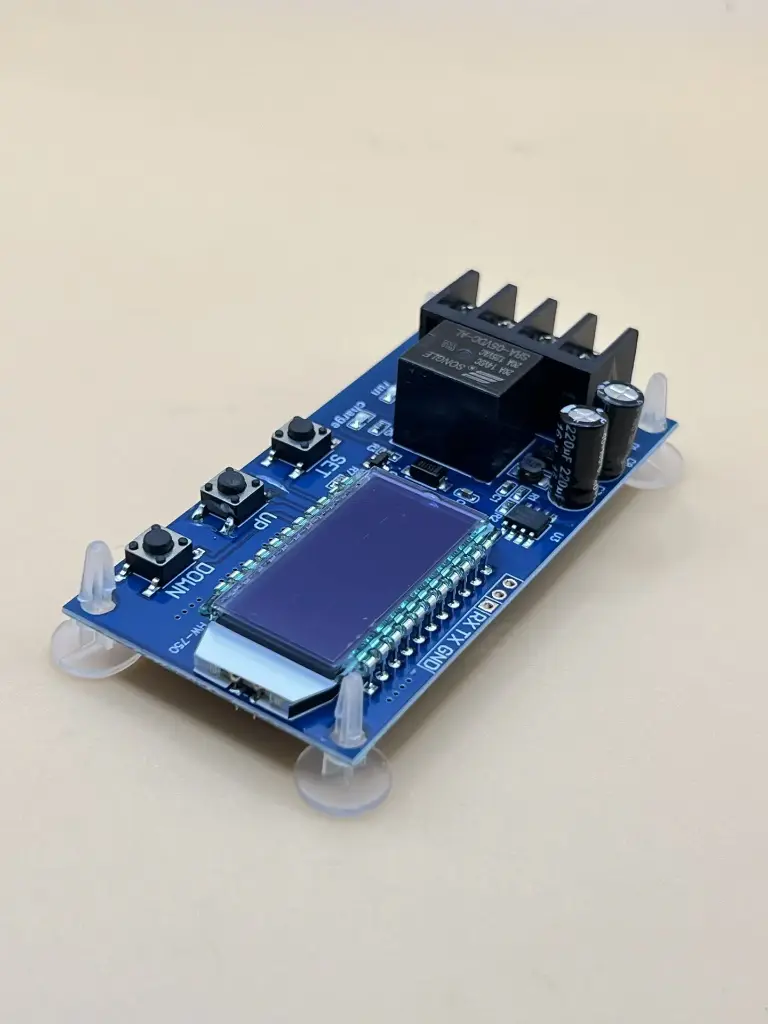

The XY-L10A Battery Charging Control Board is designed to manage the charging process of various types of batteries, ensuring safe and efficient charging. It is equipped with multiple features to protect against overcharging, over-discharging, and short circuits, making it ideal for maintaining battery health and longevity. The board is suitable for use with lithium, lead-acid, and other rechargeable batteries
Key Features:
- Intelligent charging control for various battery types
- Overcharge protection
- Over-discharge protection
- Short circuit protection
- Automatic charging cut-off when the battery is fully charged
- LED indicators for charging status
- Adjustable charge voltage and current
- Compact and easy to integrate into battery management systems
Specifications:
- Input Voltage: DC 5V-30V
- Output Voltage: 1.5V-30V
- Maximum Output Current: 10A
- Charging Method: Constant current/constant voltage (CC/CV)
- Battery Types: Compatible with lithium, lead-acid, and other rechargeable batteries
- Protection Features: Overcharge, over-discharge, and short circuit protection
- Dimensions: 79 * 42mm
- Weight: N/A
Applications:
- Battery charging stations
- Portable electronics
- Power tools
- Renewable energy systems
- Automotive battery management
Datasheet:
For detailed technical information, please refer to the datasheet.
