Description

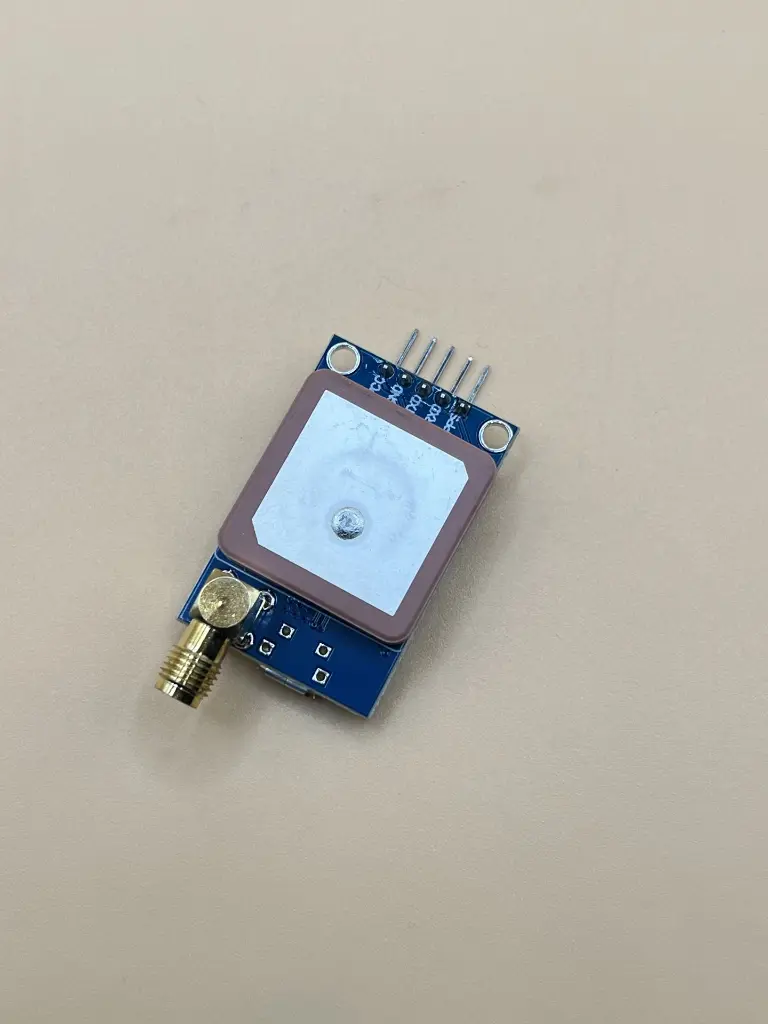

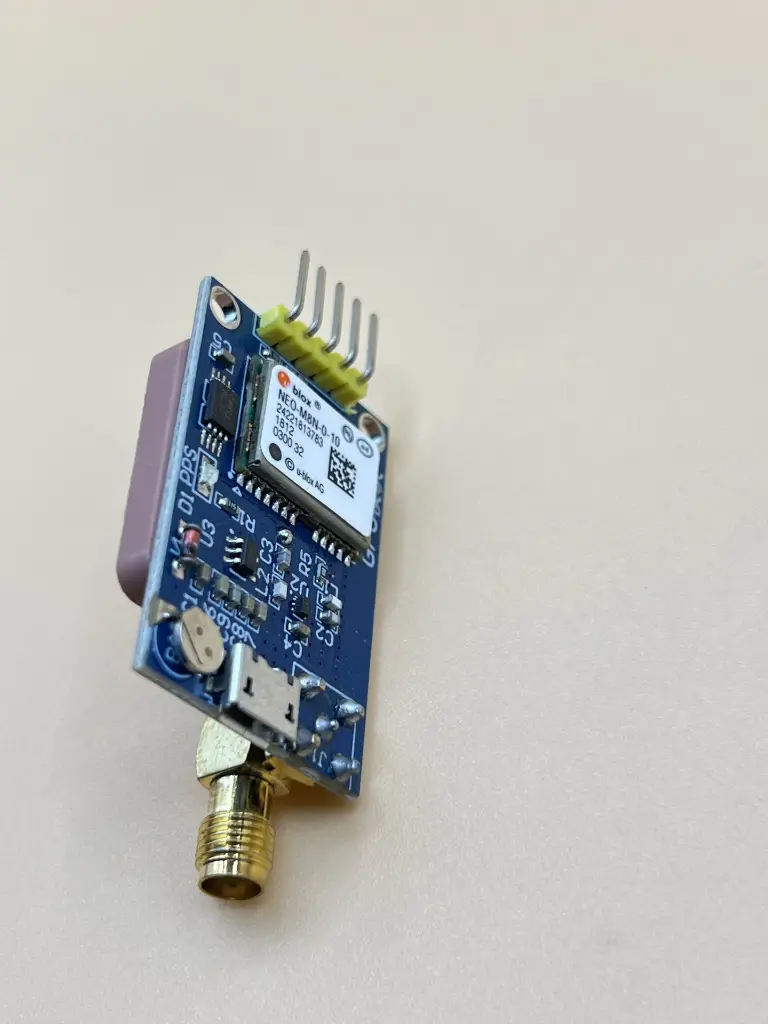

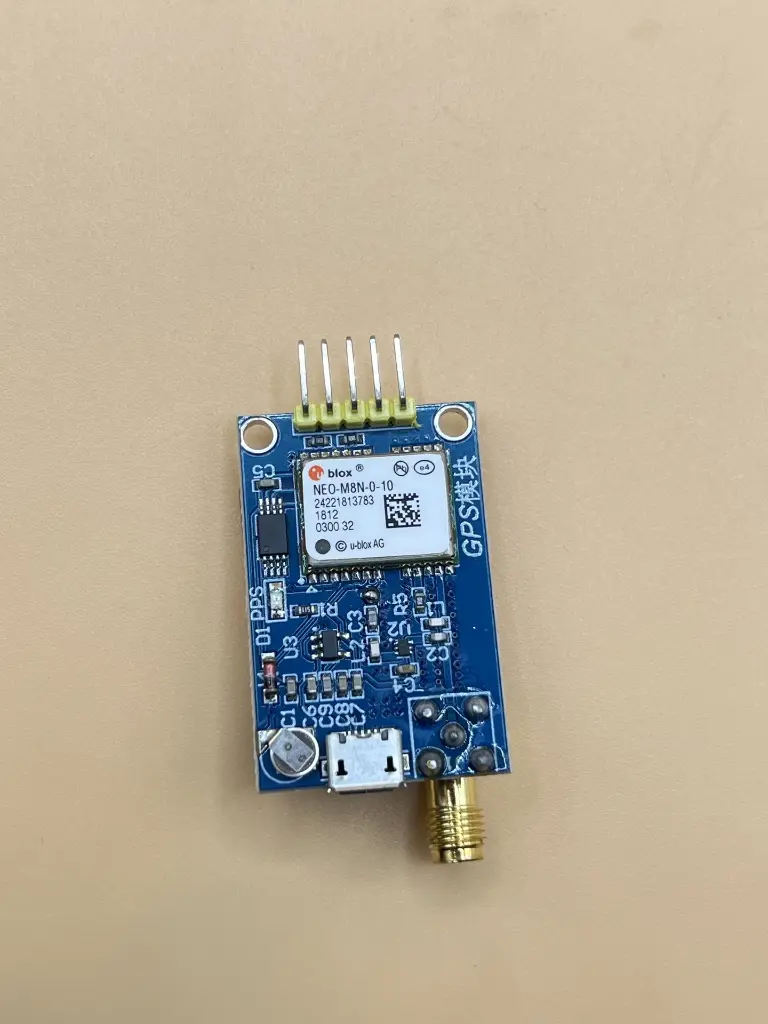

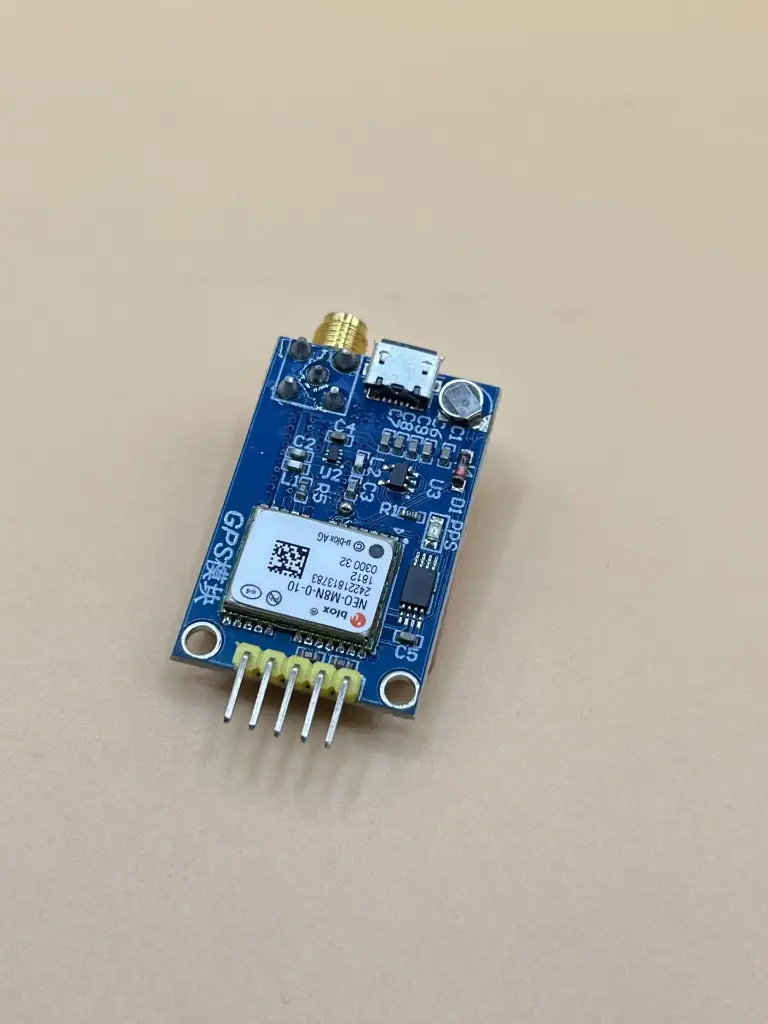

The NEO-8M is a compact and highly accurate GPS module designed for navigation and positioning applications. It utilizes the u-blox M8 GNSS (Global Navigation Satellite System) engine, which supports multiple satellite systems including GPS, GLONASS, Galileo, and BeiDou. The module provides reliable positioning data with fast time-to-first-fix (TTFF) and high sensitivity, making it suitable for both outdoor and urban environments. It features a UART interface for communication and is easy to integrate into various projects requiring precise location information.
Key Features:
- u-blox M8 GNSS chipset
- Supports GPS, GLONASS, Galileo, and BeiDou satellite systems
- High sensitivity for reliable signal acquisition
- Fast TTFF (Time To First Fix)
- UART interface for communication
- Built-in low-noise amplifier (LNA) for improved performance
- Supports SBAS (Satellite-Based Augmentation System) for enhanced accuracy
- Small form factor for easy integration
Technical specifications
- Chipset: u-blox M8
- Satellite Systems: GPS, GLONASS, Galileo, BeiDou
- Sensitivity: -167 dBm
- Operating Voltage: 2.7V to 3.6V
- Current Consumption: < 30 mA
- Antenna Interface: SMA (optional)
- Update Rate: Up to 10 Hz
- Position Accuracy: < 2.5 meters (CEP 50%)
Applications:
- Vehicle tracking and navigation systems
- UAVs (Unmanned Aerial Vehicles) and drones
- Marine navigation
- Asset tracking
- Geotagging for photography
- IoT (Internet of Things) devices requiring location-awareness
Datasheet: For detailed technical information, please refer to the datasheet .
