Description

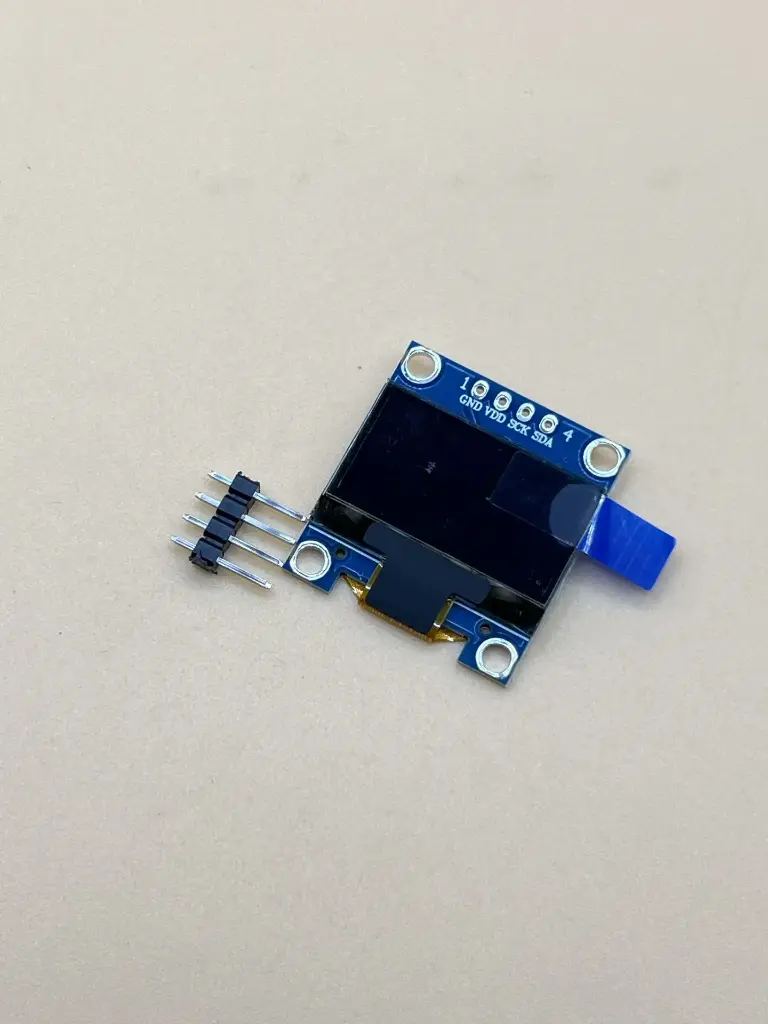

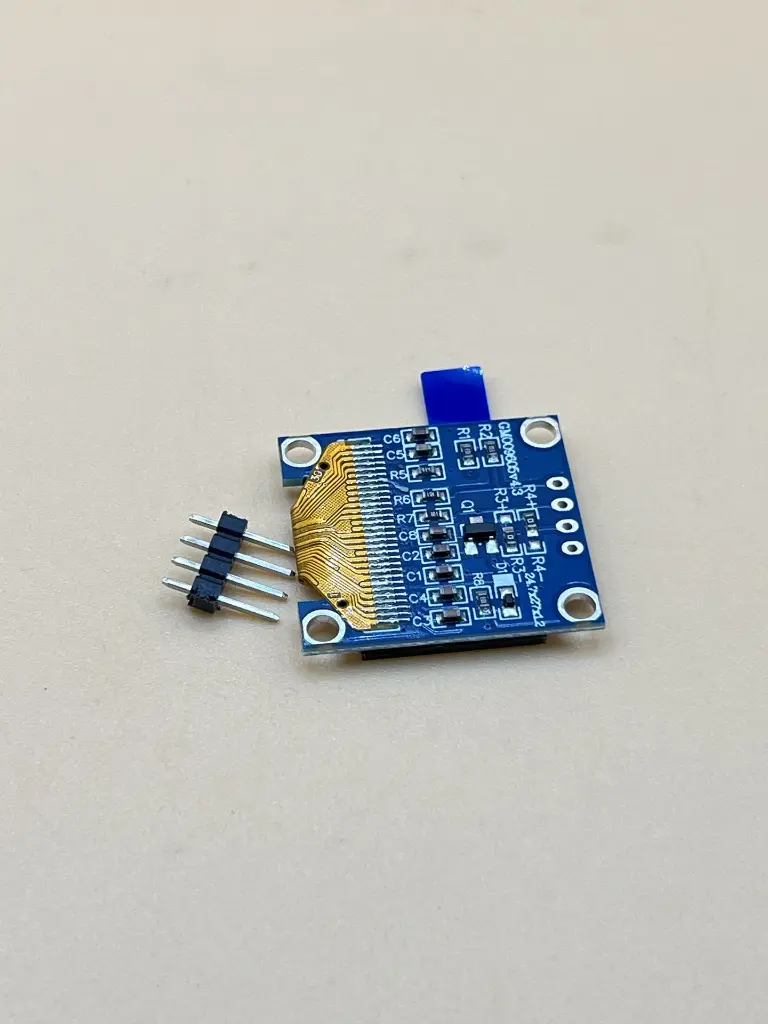

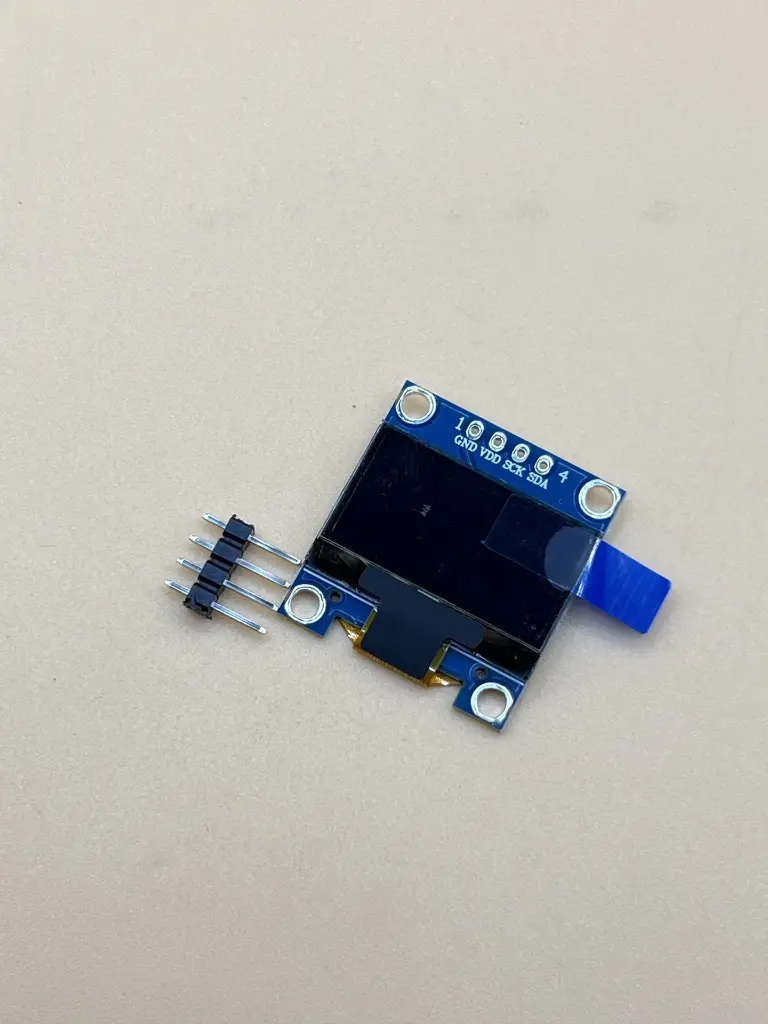

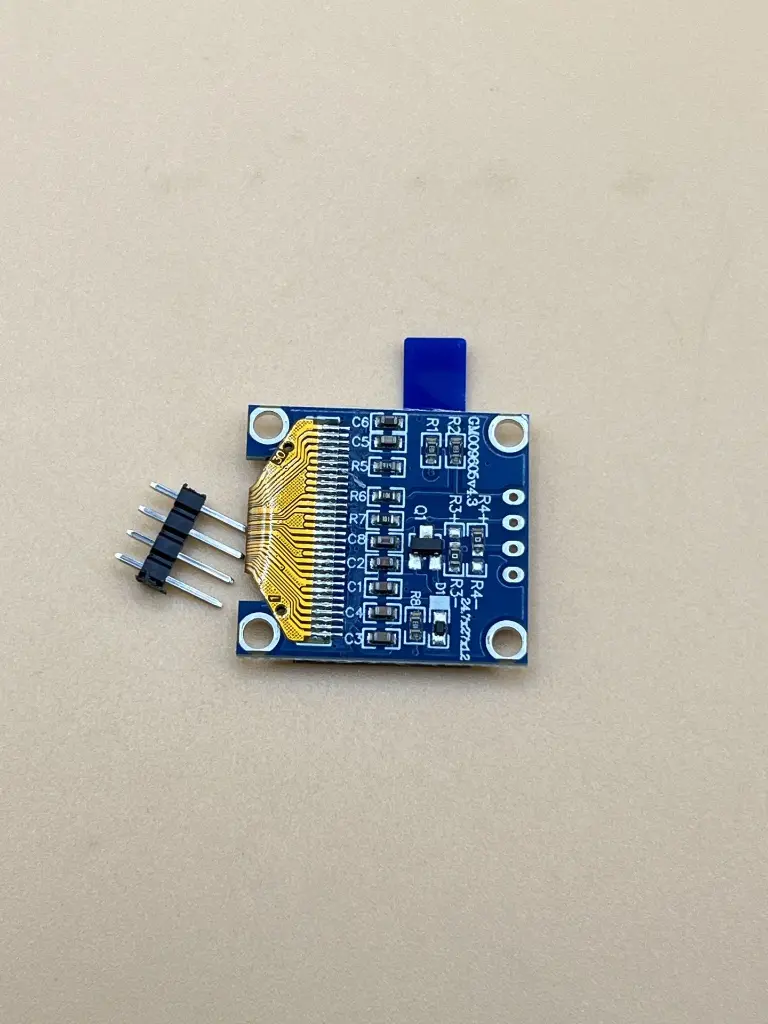

The 0.96 inch OLED screen is a compact, high-resolution display module widely used in various electronics projects. Its organic light-emitting diode (OLED) technology provides bright, clear, and high-contrast images while consuming low power. This makes it ideal for wearable devices, IoT projects, and other compact applications requiring a vibrant and efficient display
Key Features:
- High-contrast OLED display
- Compact 0.96 inch size
- Resolution: 128 x 64 pixels
- Low power consumption
- Wide viewing angle
- Fast response time
- I2C or SPI communication interface
- Long operational life
- Lightweight and thin design
Technical Specifications:
- Display Size: 0.96 inch
- Resolution: 128 x 64 pixels
- Display Type: OLED (organic light-emitting diode)
- Color: Monochrome (usually white, blue, or yellow)
- Interface: I2C or SPI
- Operating Voltage: 3.3V to 5V
- Current Consumption: Typically 20mA to 30mA
- Viewing Angle: >160°
- Operating Temperature: -40°C to 85°C
- Dimensions: Approximately 27mm x 27mm x 4mm (varies by manufacturer)
- Weight: Approximately 5g
Applications:
- Wearable devices
- IoT projects
- Home automation displays
- Handheld devices
- Portable electronics
- Data loggers
- Sensors and monitoring systems
Datasheet:
For detailed technical information, please refer to the 0.96 inch OLED Screen Datasheet.
