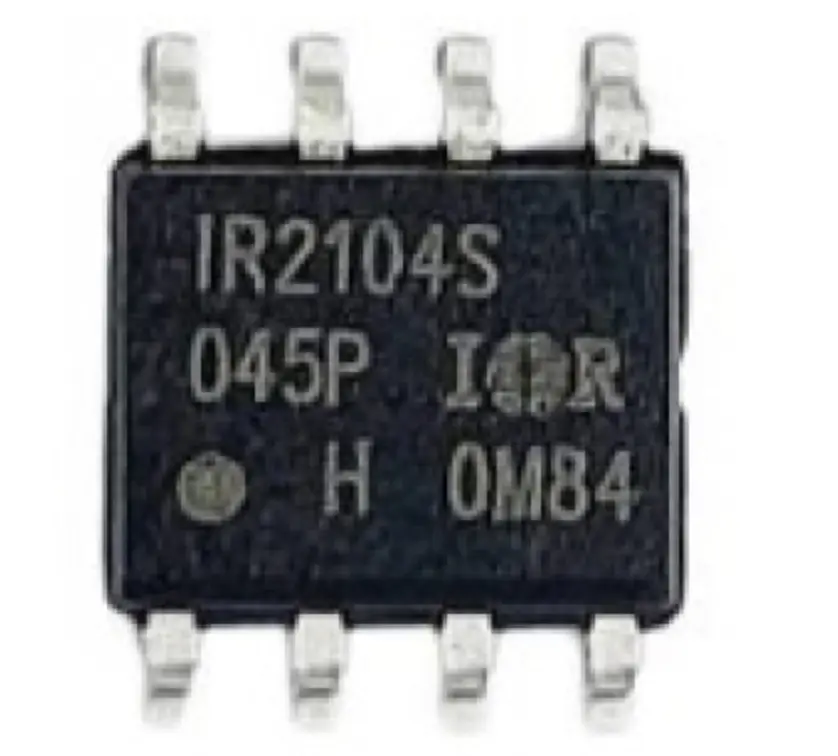

IR2104
The IR2104 is a high and low side driver IC designed for driving MOSFETs and IGBTs in half-bridge and full-bridge configurations. It provides robust performance and precise control over switching operations in applications requiring high efficiency and reliability, such as motor drives, inverters, and power supplies.
Key Features:
Key Features:
- High and low side driver outputs
- Floating channel design for bootstrap operation
- Independent high and low side inputs
- CMOS Schmitt-triggered inputs with pull-down
- Built-in dead-time generation for improved switching performance
- Under-voltage lockout protection on both channels
- Output fault status indicators
- High current drive capability
- Number of Channels: 2 (High and Low Side)
- Supply Voltage: Up to 20V
- Output Voltage: Up to Vcc (supply voltage)
- Output Current Capability: High peak output current
- Operating Temperature Range: -40°C to +150°C
- Package Type: SMD
- Half-bridge and full-bridge circuits for motor drives
- Inverter systems
- Switching power supplies
- DC-DC converters
- UPS (Uninterruptible Power Supplies)
- Industrial automation
