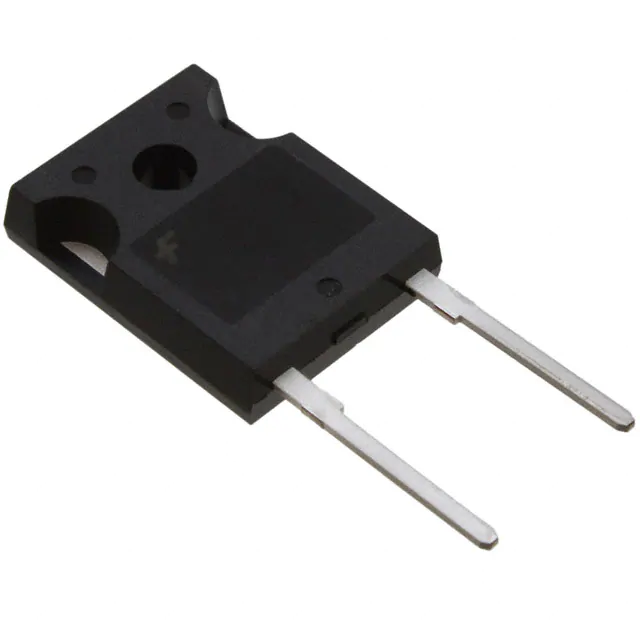

RHRG30120
7 sold in last 24 hours
The RHRG30120 is a high-efficiency Hyperfast diode designed for use in high-frequency switching power supplies, inverters, and freewheeling diode applications. It features low forward voltage drop and fast switching capability, making it suitable for high-speed switching circuits where efficiency and performance are critical.
Key Features:
- Diode Type: Hyperfast recovery rectifier
- Reverse Voltage: 1200V
- Forward Voltage Drop: Typically 1.7V at 150A
- Forward Surge Current: 250A
- Reverse Recovery Time: Typically 30ns
- Package Type: TO-247AD, providing excellent thermal performance and high reliability
- Mounting: Through-hole mounting for secure and efficient heat dissipation
- Applications: High-frequency rectification, snubber circuits, freewheeling diodes in power electronics, and industrial applications.
- Maximum Average Forward Current: 30A
- Operating Temperature Range: -55°C to +175°C
- Storage Temperature Range: -55°C to +175°C
- Forward Voltage Drop: 1.7V at 150A
- Reverse Leakage Current: 30µA at 1200V
