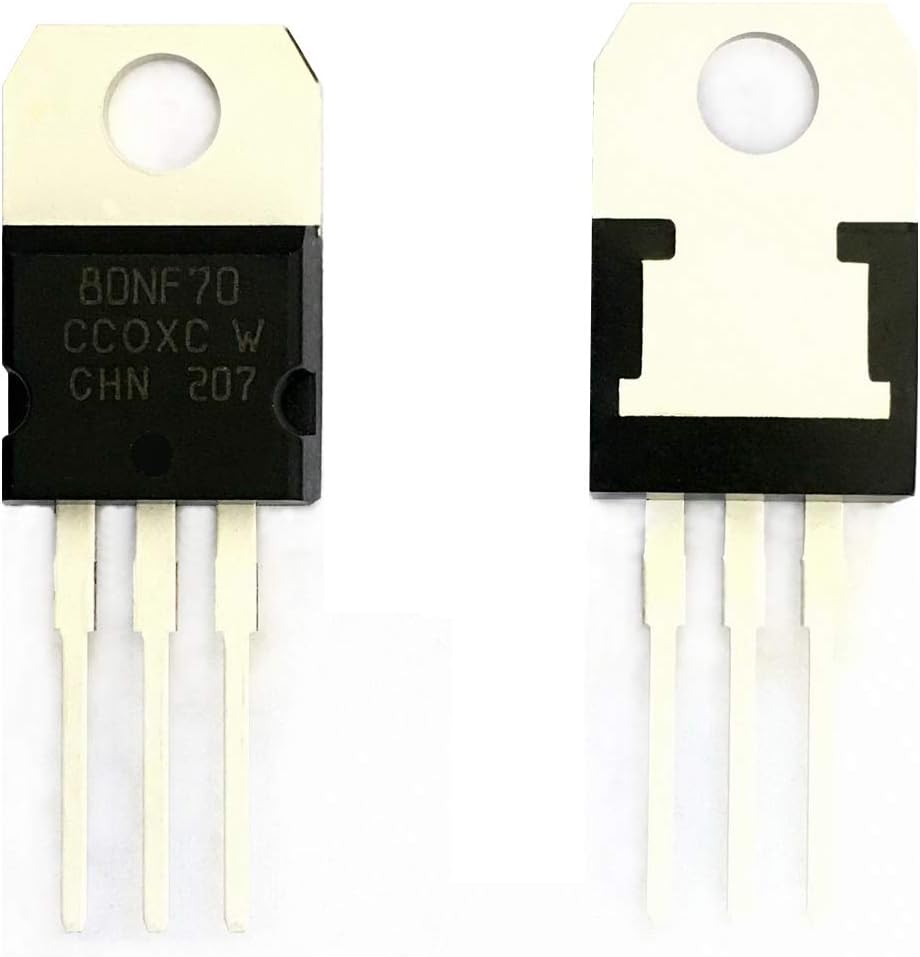

STP80NF70
The STP80NF70 is an N-channel power MOSFET designed for high-speed switching applications. It offers low on-state resistance (RDS(on)) and low gate charge, making it suitable for use in power supplies, motor control, and other high-current switching circuits.
Key Features:
- Low On-Resistance (RDS(on)): 0.0092 ohms (max) at VGS = 10V, ID = 40A
- Low Gate Charge (Qg): 106 nC (typical)
- Avalanche Energy Rating: 360 mJ
- Low Input Capacitance (Ciss)
- Fast Switching Speed
- Drain-Source Voltage (VDS): 68V
- Continuous Drain Current (ID): 80A
- Pulsed Drain Current (IDM): 320A
- Gate-Source Voltage (VGS(th)): 2V (max)
- Total Power Dissipation (PD): 300W
- Operating Temperature Range: -55°C to 175°C
- Switching Power Supplies
- Motor Control
- DC-DC Converters
- Class D Amplifiers
No Specifications
