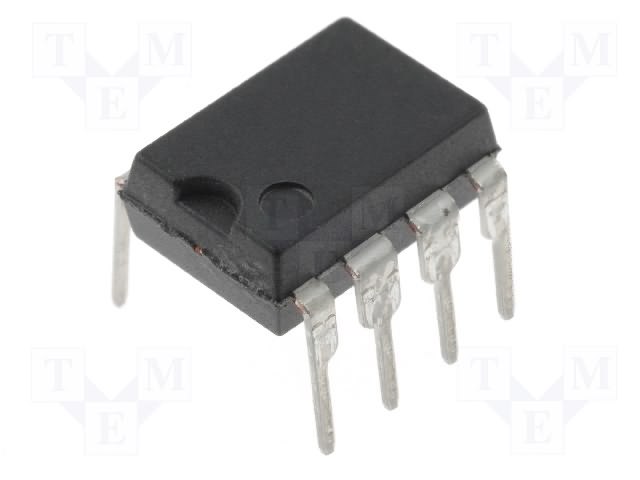

TOP210 power IC driver management chip
Description: The TOP210 is a monolithic high-voltage, high-performance power IC designed for offline switch mode power supply applications. It integrates a 700V power MOSFET, high voltage startup, current mode PWM control, fault protection, and other necessary functions onto a single chip. The TOP210 is known for its efficiency, reliability, and versatility in various power supply designs, offering enhanced performance and ease of use in both isolated and non-isolated configurations.
Key Features:
- Integrated 700V MOSFET
- Current mode PWM control
- Programmable switching frequency up to 200 kHz
- Built-in frequency jittering for EMI reduction
- Auto-restart and fault protection features
- Line undervoltage lockout (UVLO)
- Thermal shutdown protection
- Soft start
- Input Voltage Range: 85VAC to 265VAC
- Maximum Output Power: Up to 150W (depending on application and thermal conditions)
- Efficiency: Up to 85% (typical)
- Operating Frequency: Up to 200 kHz
- Startup Voltage: 20V (typical)
- Package Type: 8-pin DIP, 8-pin SOP
- AC-DC power supplies
- LED lighting drivers
- Battery chargers
- Auxiliary power supplies
- Industrial and consumer electronics
No Specifications
