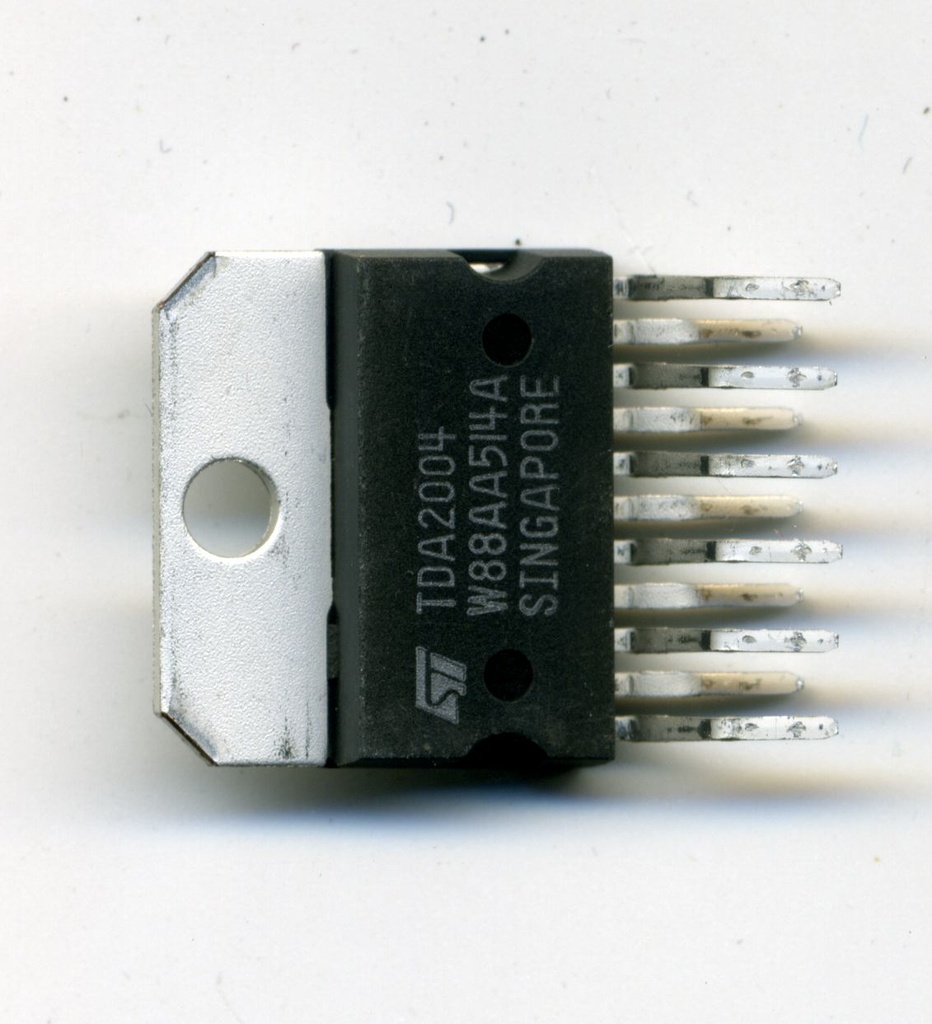

TDA2004R power amplifier
15 sold in last 24 hours
The TDA2004R is a class B dual audio power amplifier specifically designed for car radio applications. It provides high power output, low distortion, and good frequency response, making it ideal for enhancing audio systems in vehicles.
Key Features:
- Dual power amplifier
- High output power: 2 x 10W (at 14.4V, 4 ohm load)
- Low harmonic distortion
- Short-circuit protection
- Thermal overload protection
- High supply voltage range
- Few external components needed
- Supply Voltage (Vcc): 18V max
- Output Power (Pout): 2 x 10W (at Vcc = 14.4V, 4 ohm load)
- Total Harmonic Distortion (THD): 0.1% (typical)
- Quiescent Current (Iq): 60mA (typical)
- Operating Temperature Range: -40°C to 150°C
- Car audio systems
- Portable audio systems
- General-purpose audio amplification
No Specifications
