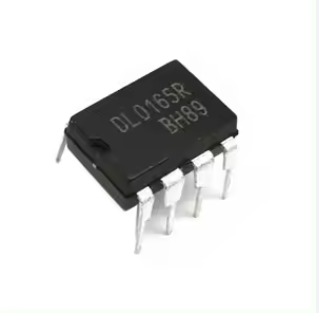

DL0165R LCD Power supply chip

Description: The DL0165R is a high-performance LCD power supply chip optimized for universal mains applications. It integrates a high-voltage power MOSFET, PWM controller, startup control, and various protection features into a single package, simplifying the design of power supply circuits for LCDs. The DL0165R is suitable for use in a wide range of applications, including LCD monitors, LCD TVs, and other display systems. Key Features:

• High-voltage power MOSFET
• Wide operating voltage range
• Integrated PWM controller
• Low standby power consumption
• Overload protection
• Over-voltage protection
• Thermal shutdown protection

Technical Specifications:

• Package Type: DIP-8
• Supply Voltage (Vcc): 8V to 23V
• Output Current (Io): 650mA
• Switching Frequency: 100 kHz
• Thermal Shutdown: Yes
• Dimensions: 9.81 mm x 6.35 mm x 4.57 mm
• Weight: 1 g

Applications:

• LCD Monitors: Used for designing efficient power supplies for LCD monitors.
• LCD TVs: Ideal for power supplies in LCD television sets.
• Display Systems: Suitable for various types of display systems requiring reliable power.
• Consumer Electronics: Used in consumer electronics that feature LCD displays.
• Industrial Control: Suitable for power supply in industrial control systems with LCD interfaces.

Datasheet: For detailed technical information, refer to the DL0165R Datasheet.
