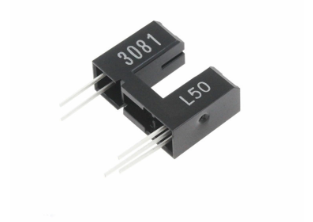

    The EE-SX1055 is a slot-type photoelectric switch sensor designed for accurate detection of objects passing through the slot. It integrates a phototransistor and an infrared LED, providing reliable performance in various industrial applications. Key Features:
    • Slot-type design for easy object detection
    • High-speed response
    • Reliable performance in industrial environments
    • Compact size for space-saving installation
    Technical Specifications:
    • Slot Width: 5 mm
    • Forward Voltage (Vf): 1.2 V max at 20 mA
    • Collector-Emitter Voltage (Vceo): 30 V
    • Collector Current (Ic): 20 mA max
    • Operating Temperature Range: -25°C to 85°C
    Applications:
    • Object detection in automation systems
    • Position sensing in manufacturing processes
    • General-purpose slot-type sensing
    Usage:
    • Ideal for use in confined spaces requiring precise object detection.
    • Ensure the slot is clear of obstructions for optimal performance.
    Caution:
    • Avoid direct exposure to sunlight or strong ambient light, which can affect sensor performance.
    Datasheet: For more detailed information, refer to the datasheet here.
