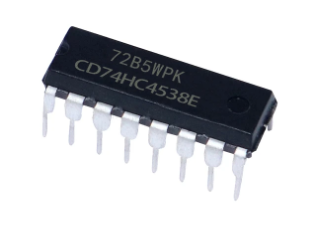

CD74HC4538E (74HC4538) multivibrator

Description: The CD74HC4538E IC includes two monostable multivibrator circuits, each with a trigger input (A and B), an output (Q), and timing components (R and C) to set the pulse width. Monostable multivibrators, also known as one-shots, generate a single output pulse of a specified duration in response to an input trigger. This IC is designed for high-speed operation and low power consumption, making it suitable for precise timing applications. Key Features:

• Dual precision monostable multivibrator circuits
• High-speed CMOS technology
• Low power consumption
• Wide operating voltage range: 2V to 6V
• Typical propagation delay: 9 ns at VCC = 5V, CL = 15 pF
• Schmitt-trigger inputs for improved noise immunity
• Direct compatibility with TTL input levels

Technical Specifications:

• Package Type: 16-pin DIP (Dual In-line Package)
• Supply Voltage (VCC): 2V to 6V
• Trigger Voltage (VIN): 0V to VCC
• Output Voltage (VOUT): 0V to VCC
• Trigger Pulse Width: Adjustable using external timing components (R and C)
• Triggering Edge: Positive or negative edge-triggered
• Output Pulse Width: Determined by external timing components
• Quiescent Supply Current (ICC): 1 µA (max)
• Operating Temperature Range: -55°C to +125°C

Applications:

• Precision timing circuits
• Pulse width modulation (PWM) generators
• Frequency dividers and counters
• Delay circuits and timers
• Event synchronization and sequencing

Datasheet: For detailed technical information, refer to the CD74HC4538E datasheet.
