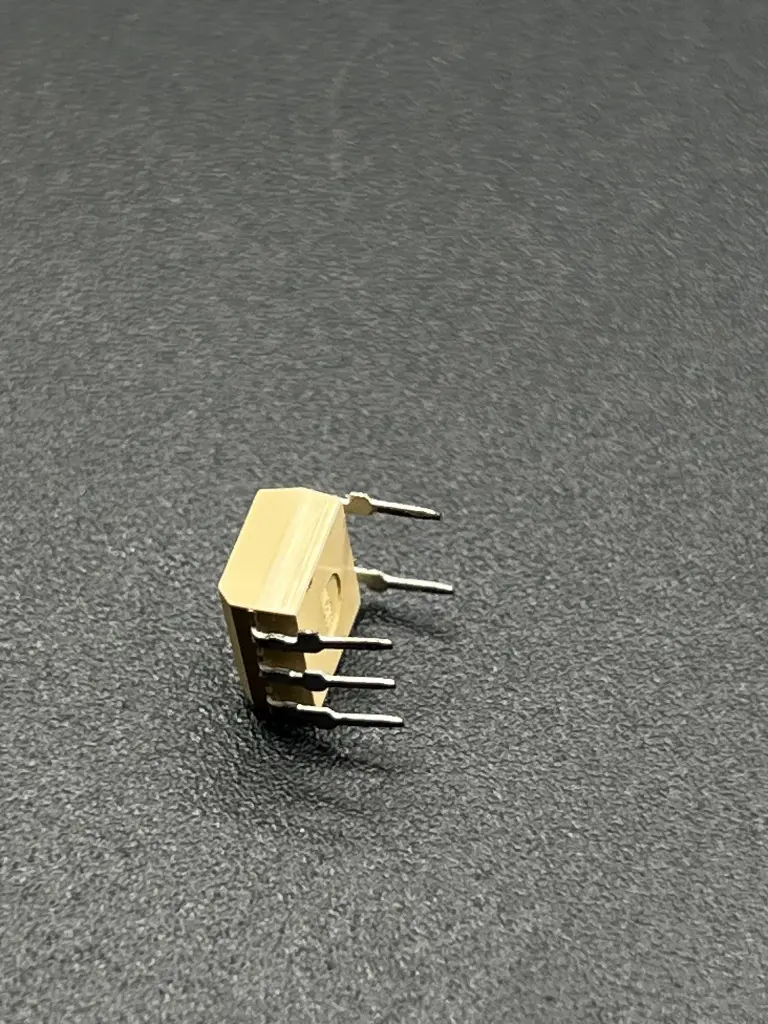

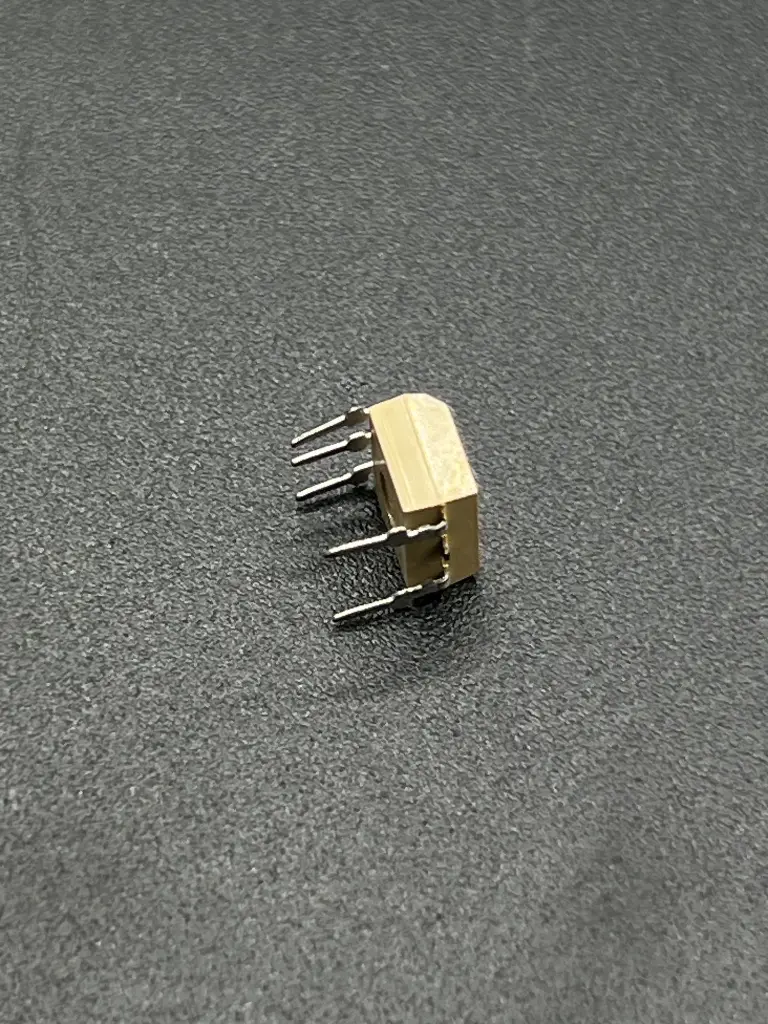

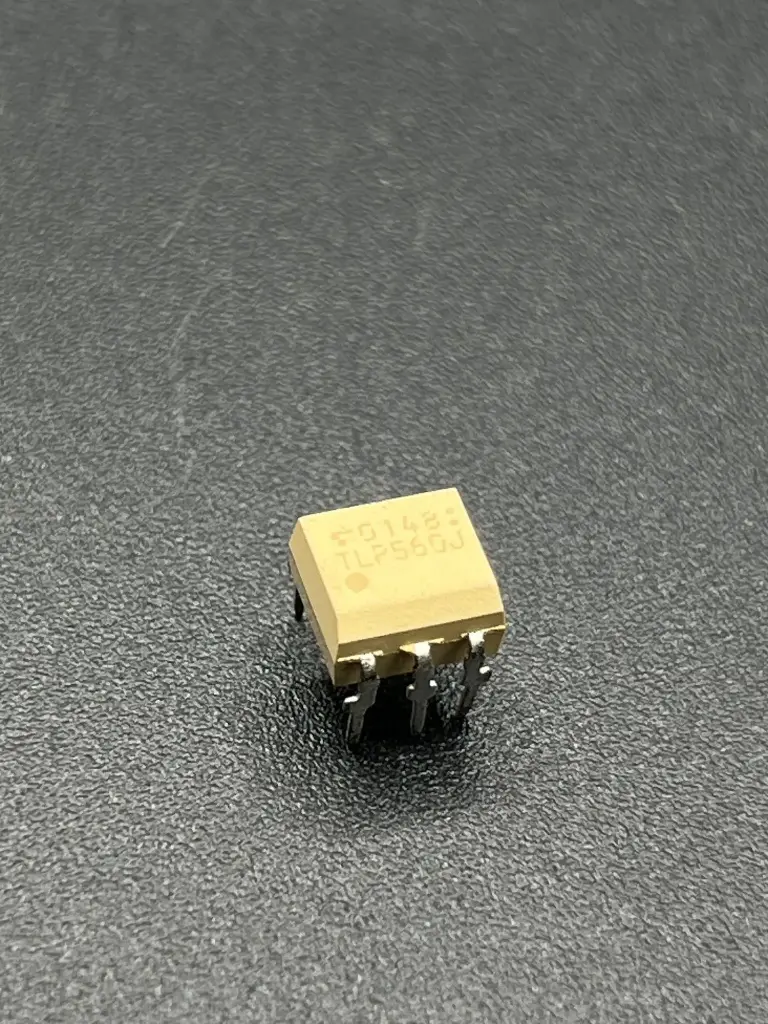

TLP560J Optocoupler
The TLP560J is a high-speed optocoupler designed to provide electrical isolation between input and output circuits while enabling rapid signal transmission. This optocoupler features a gallium arsenide (GaAs) infrared emitting diode and a phototransistor, housed in a compact package. It is suitable for various applications that require high-speed data transmission and electrical isolation, such as industrial control systems, data communication, and medical equipment.
Key Features:
- High-speed operation
- High isolation voltage
- Low input current requirements
- Compact 6-pin DIP package
- High common-mode transient immunity
- Compatible with TTL and CMOS logic levels
- Isolation Voltage: 5000 VRMS (1 minute)
- LED Forward Voltage: 1.3V (typical)
- LED Forward Current: 10mA (max)
- Output Voltage: 35V (max)
- Output Current: 8mA (max)
- Propagation Delay Time (tPLH/tPHL): 100 ns (typical)
- Common-Mode Transient Immunity: 1000 V/µs
- Operating Temperature Range: -55°C to +100°C
- Package: 6-pin DIP
- Industrial Control Systems: Provides isolation and signal transmission in industrial automation and control systems.
- Data Communication: Used in high-speed data communication systems for reliable signal isolation.
- Medical Equipment: Ensures patient safety by providing electrical isolation in medical devices.
- Switch-Mode Power Supplies: Provides isolation in feedback loops of switch-mode power supplies.
- Consumer Electronics: Used in various consumer electronic devices requiring high-speed signal isolation.
- Microprocessor Interfaces: Provides isolation and signal transmission for microcontroller and microprocessor interfaces.
