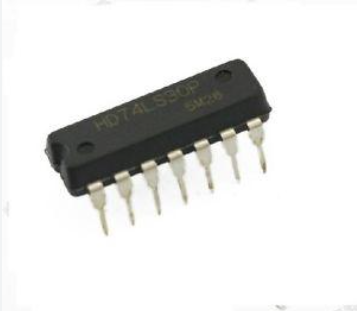

HD74LS30P (74LS30) 8 input NAND gate
Description:
The HD74LS30P is an 8-input NAND gate integrated circuit from the 74LS series, designed for use in digital logic circuits. This IC performs the logical NAND function, producing a LOW output (logic level 0) only when all eight inputs to the gate are HIGH. The HD74LS30P is widely used in various applications requiring NAND logic operations due to its reliable performance and compatibility with TTL logic levels.
Key Features:
- Single 8-input NAND gate
- Low power consumption
- TTL compatible inputs and outputs
- High noise immunity
- Fast switching times
- Can drive up to 10 TTL loads
- Logic Function: NAND
- Number of Gates: 1
- Number of Inputs per Gate: 8
- Supply Voltage (Vcc): 4.75V to 5.25V
- High-Level Input Voltage (VIH): 2V (min)
- Low-Level Input Voltage (VIL): 0.8V (max)
- High-Level Output Voltage (VOH): 2.7V (min)
- Low-Level Output Voltage (VOL): 0.4V (max)
- Input Current: 0.1 mA (max)
- Operating Temperature Range: 0°C to 70°C
- Propagation Delay: 14 ns (typical)
- Package Type: DIP-14 (Dual Inline Package)
- Dimensions: 19.3 mm x 6.35 mm x 4.57 mm
- Weight: 0.73 g (approx.)
- Digital logic circuits
- Data processing
- Control systems
- Signal processing
- Timing and sequencing circuits
- Communication equipment
