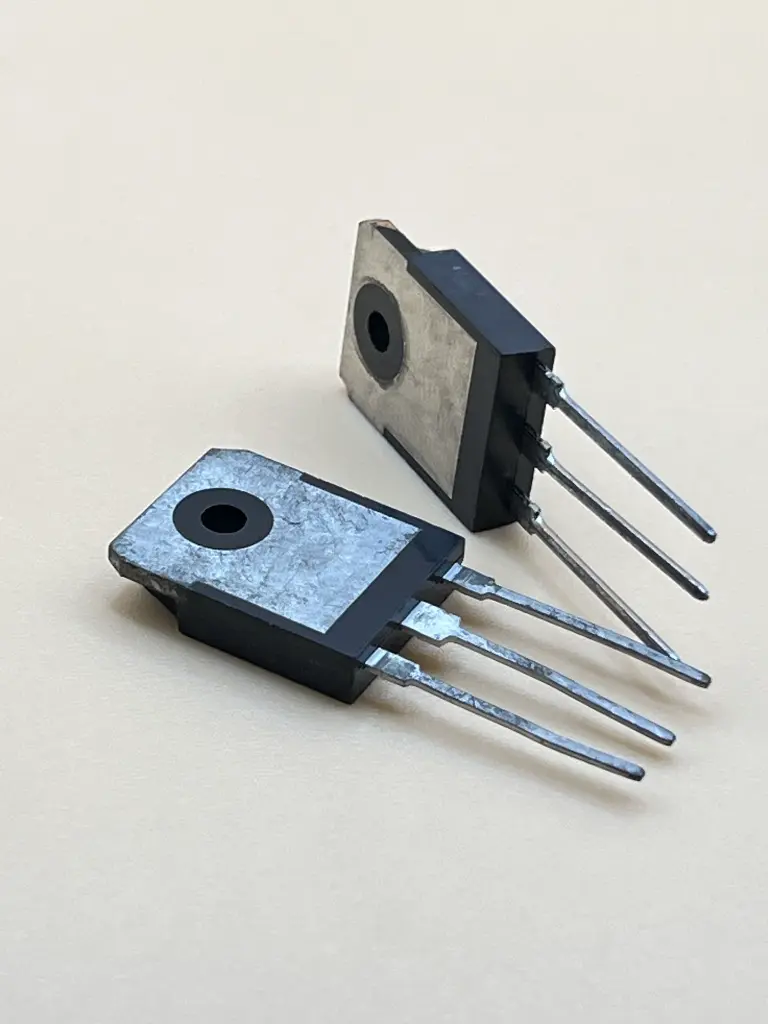

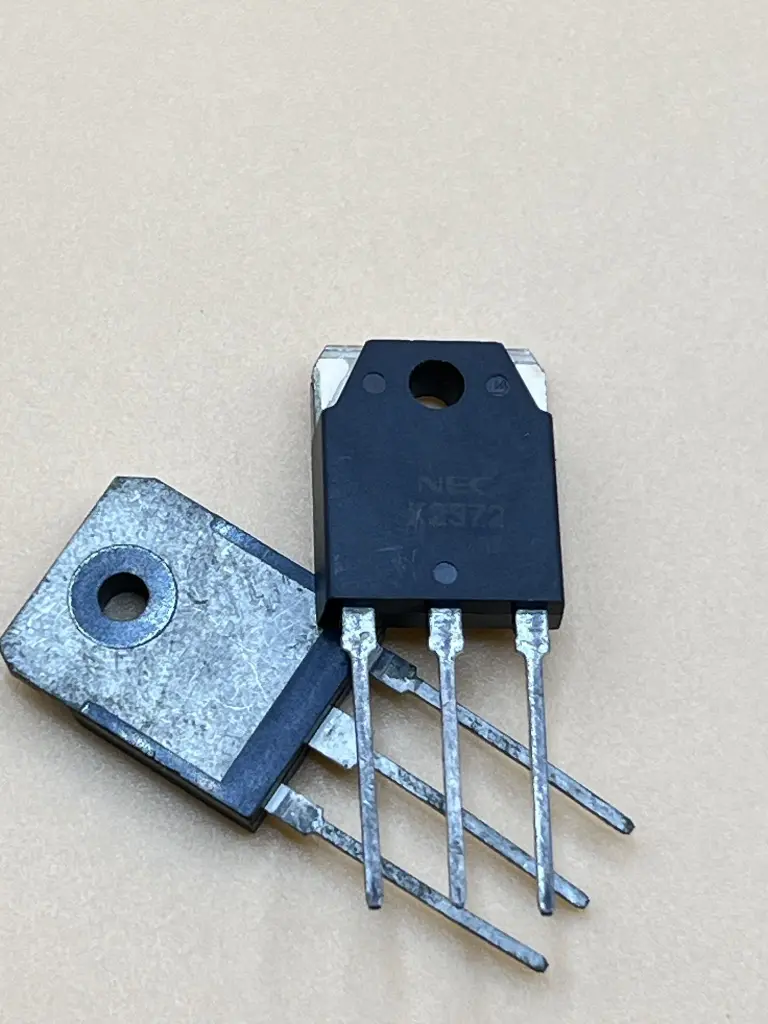

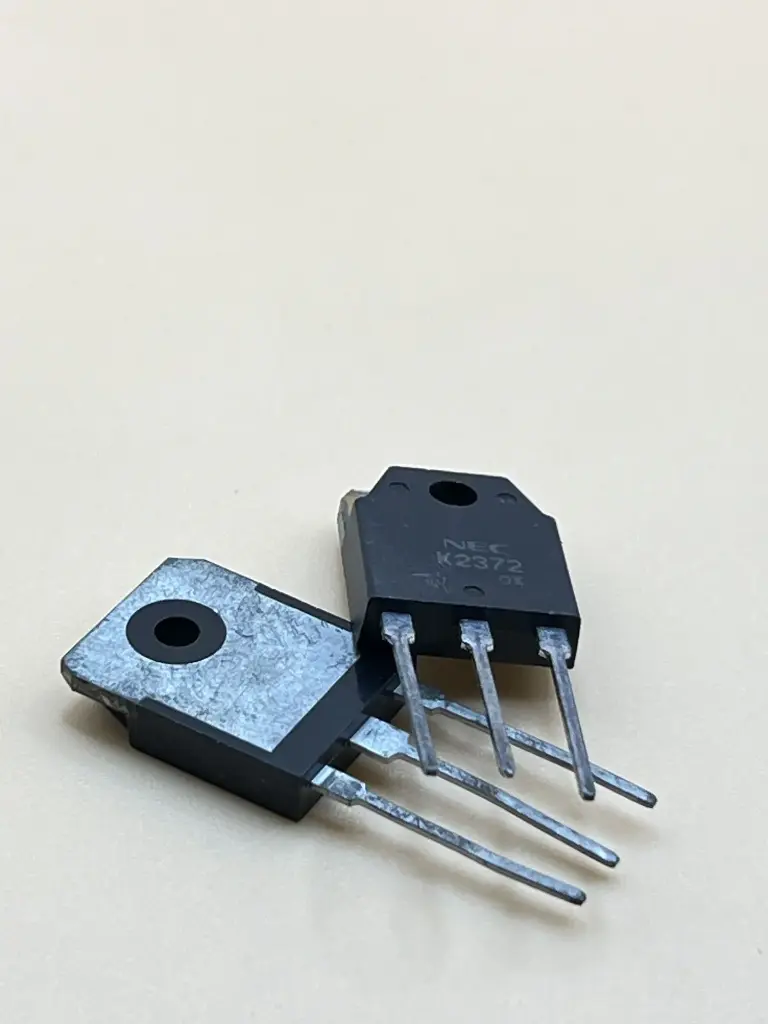

2SK2372 Transistor
Description: The 2SK2372 is a power MOSFET transistor designed for high-speed switching applications in power supplies, motor controls, inverters, and other electronic circuits requiring efficient power handling. This MOSFET offers low on-resistance and high current capability, making it suitable for applications demanding high efficiency and reliability.
Key Features:
- Power MOSFET transistor
- High-speed switching capability
- Low on-resistance for efficient power handling
- High current capability
- RoHS compliant
- Drain-Source Voltage (V_DSS): 900V
- Continuous Drain Current (I_D): 7A
- Pulsed Drain Current (I_DP): 28A
- Gate-Source Voltage (V_GSS): ±30V
- On-Resistance (R_DS(on)): 1.1Ω (max) at V_GS = 10V, I_D = 3.5A
- Total Gate Charge (Q_g): 48nC (typical)
- Operating Temperature Range: -55°C to +150°C
- Package Type: TO-220
- Power supplies
- Motor controls
- Inverters
- Switching regulators
- Industrial automation
