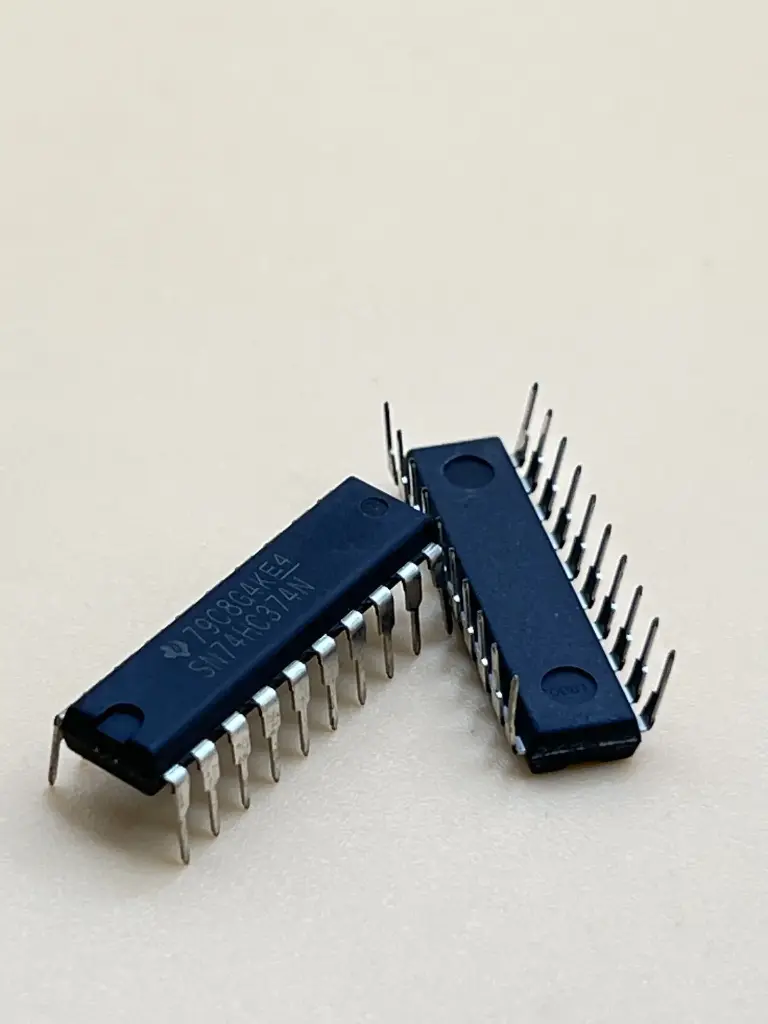

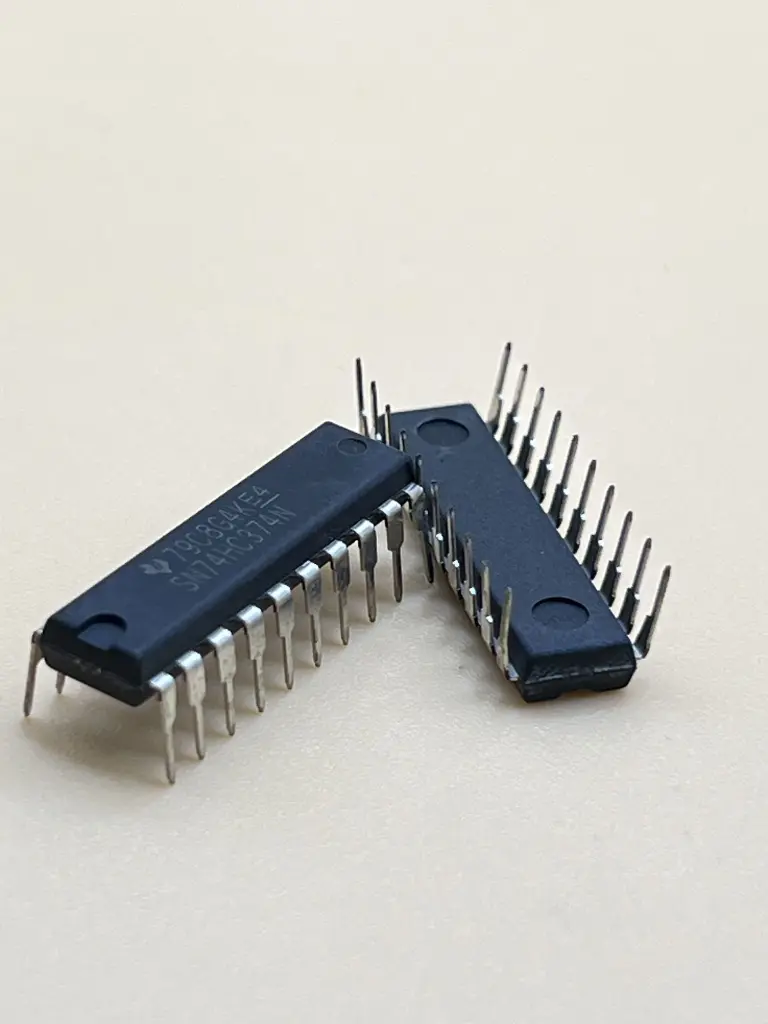

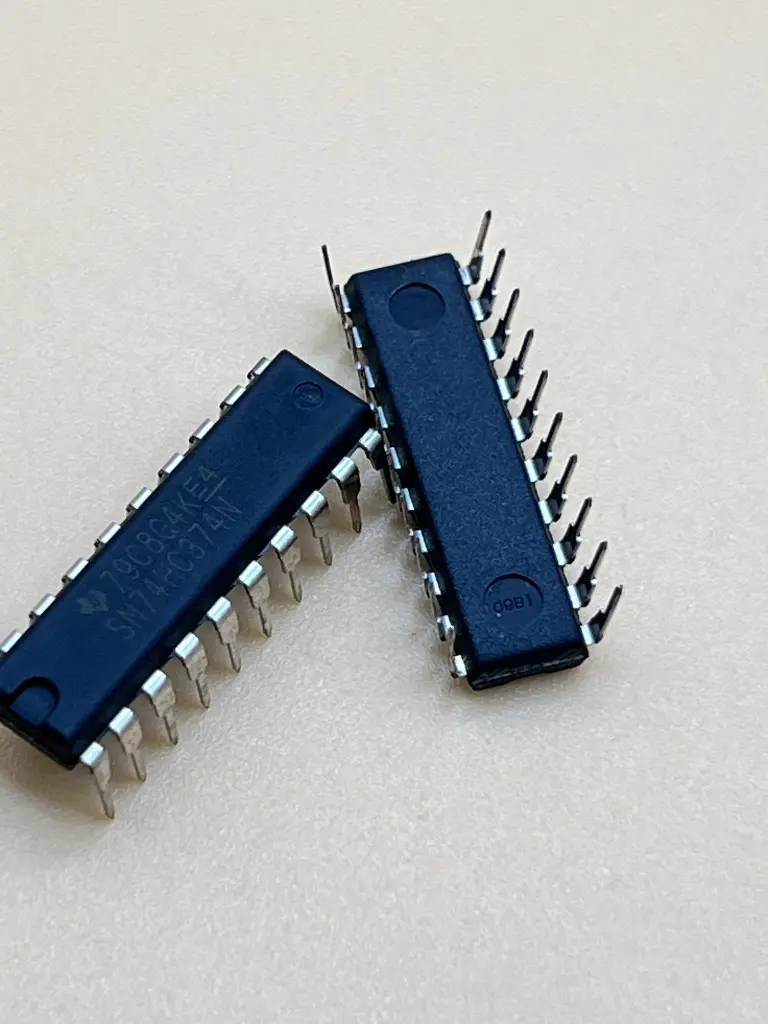

SN74HC374N (74HC374)

Description: The SN74HC374N is an octal D-type flip-flop with 3-state outputs, designed for high-speed CMOS logic applications. This device features eight edge-triggered D-type flip-flops with individual D inputs and 3-state true outputs. A buffered clock input (CP) and an output control (OC) are common to all flip-flops. The SN74HC374N is commonly used in data storage and transfer applications where high-speed operation and low power consumption are required. Key Features:

• Octal D-type flip-flop with 3-state outputs
• Edge-triggered on the rising edge of the clock
• Wide operating voltage range: 2V to 6V
• High-speed CMOS technology
• Low power consumption
• Direct clear function
• Inputs and outputs are protected against static discharge
• 3-state outputs for bus-oriented applications

Technical Specifications:

• Package Type: 20-pin DIP
• Supply Voltage (V_CC): 2V to 6V
• Input Voltage (V_IN): 0V to V_CC
• Output Voltage (V_OUT): 0V to V_CC
• Input High Voltage (V_IH): 3.15V (minimum) at V_CC = 6V
• Input Low Voltage (V_IL): 1.35V (maximum) at V_CC = 6V
• Output Current (I_O): ±25mA
• Quiescent Supply Current (I_CC): 8µA (maximum)
• Propagation Delay Time: 16ns (typical) at V_CC = 5V, C_L = 15pF
• Operating Temperature Range: -40°C to +85°C

Applications:

• Data Storage: Temporary data storage in digital systems.
• Data Transfer: High-speed data transfer between subsystems.
• Bus-Oriented Applications: Driving and receiving data on shared buses.
• Digital Systems: Implementing control and synchronization logic in microprocessors and other digital circuits.

Datasheet: For detailed technical information, refer to the SN74HC374N datasheet.
