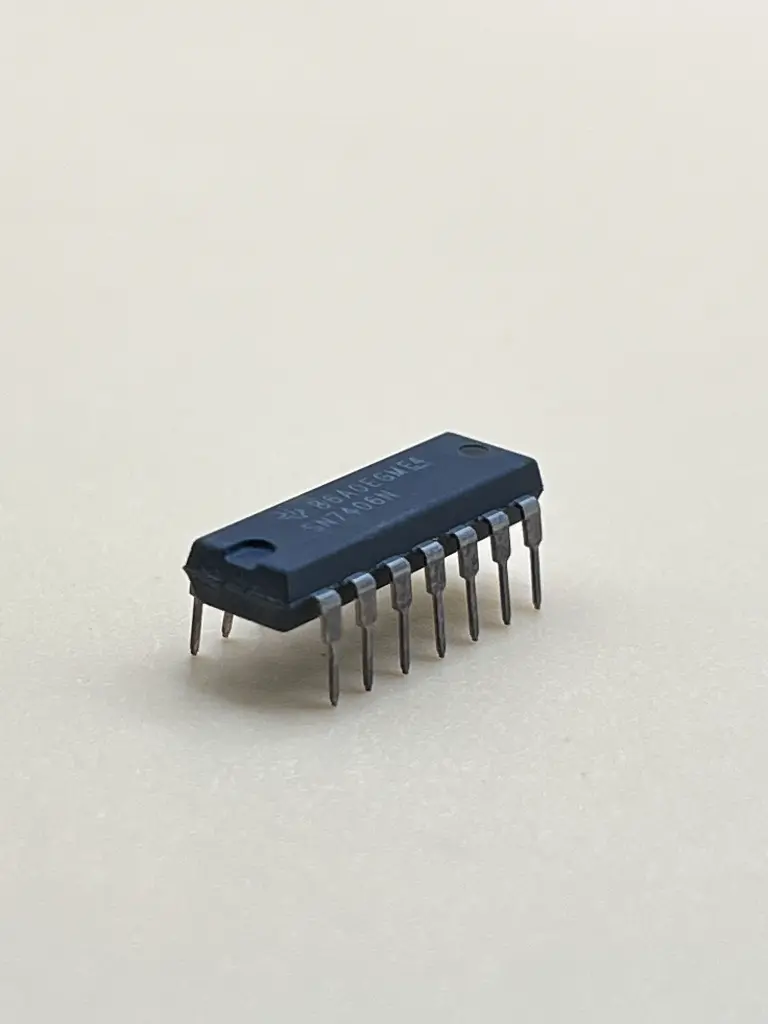

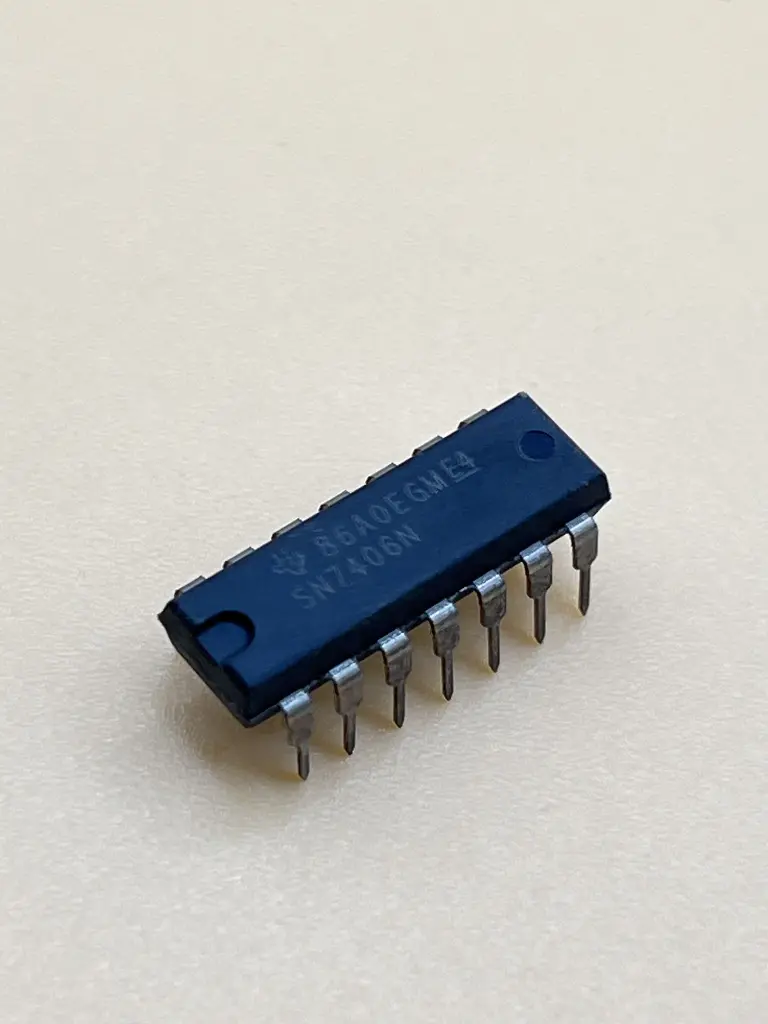

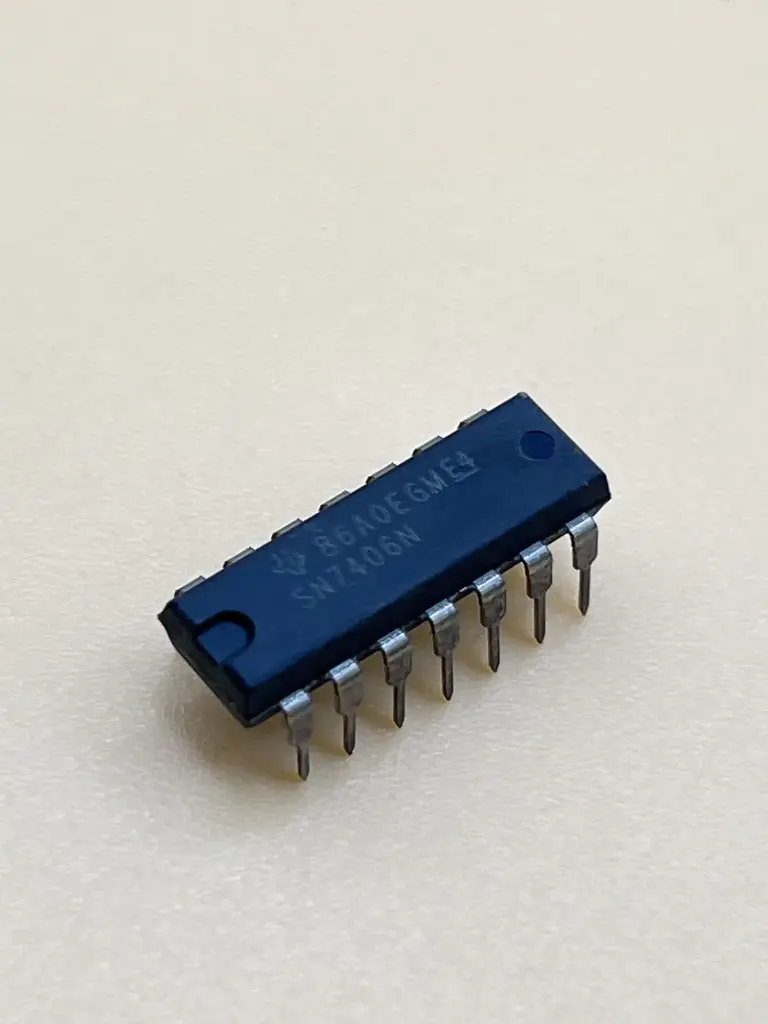

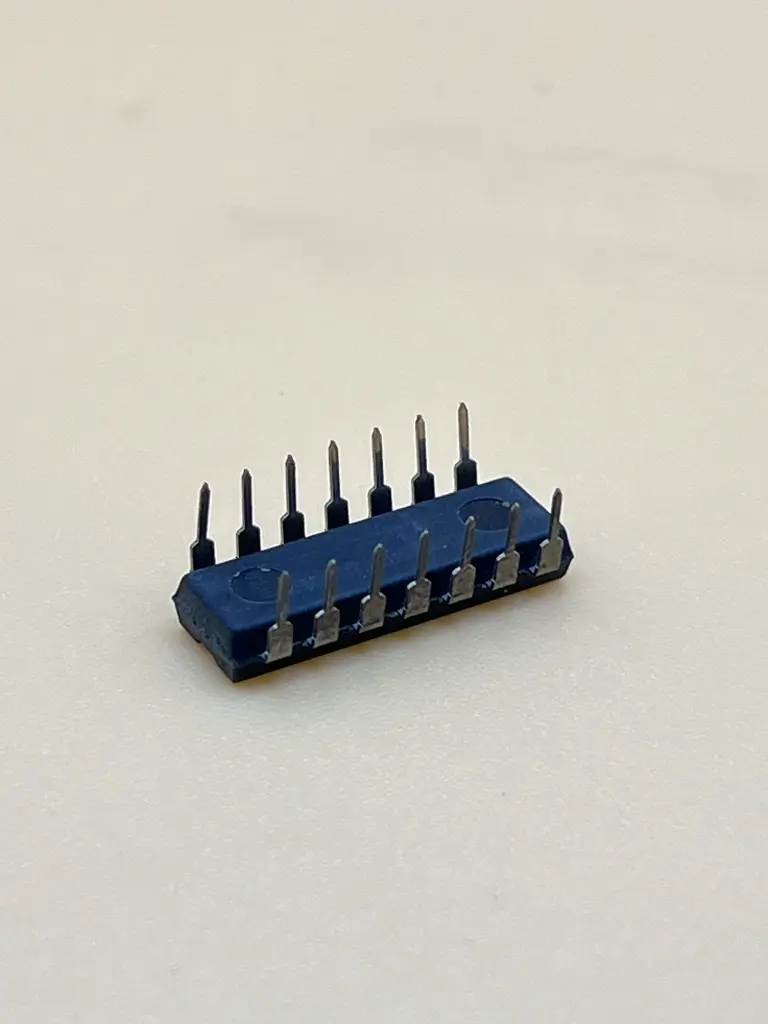

SN7406N

Description: The SN7406N is a member of the SNx406 and SNx406A series of hex inverters. It features six independent gates, each containing a single inverter buffer. This IC is designed to provide high-voltage, open-collector outputs that can interface with high-level circuits or drive LEDs directly. It is commonly used for signal inversion, buffering, and driving applications where high-speed operation and robust output characteristics are required. Key Features:

• Six independent inverter gates
• Open-collector outputs
• High-voltage output (up to 30V)
• Wide operating voltage range (4.75V to 5.25V)
• Low power consumption
• TTL compatible inputs
• Available in dual in-line package (DIP)

Technical Specifications:

• Package Type: 14-pin DIP
• Supply Voltage (V_CC): 4.75V to 5.25V
• High-level Output Voltage (V_OH): 30V (min)
• Low-level Output Voltage (V_OL): 0.4V (max)
• Input Voltage (V_I): 0.8V (max)
• Input Current (I_I): ±1mA (max)
• Operating Temperature Range (T_A): -55°C to +125°C

Applications:

• Signal inversion and buffering
• LED driving circuits
• Logic level conversion
• Pulse shaping
• Digital systems and microcontroller interfacing

Datasheet: For detailed technical information, refer to the SN7406N datasheet
