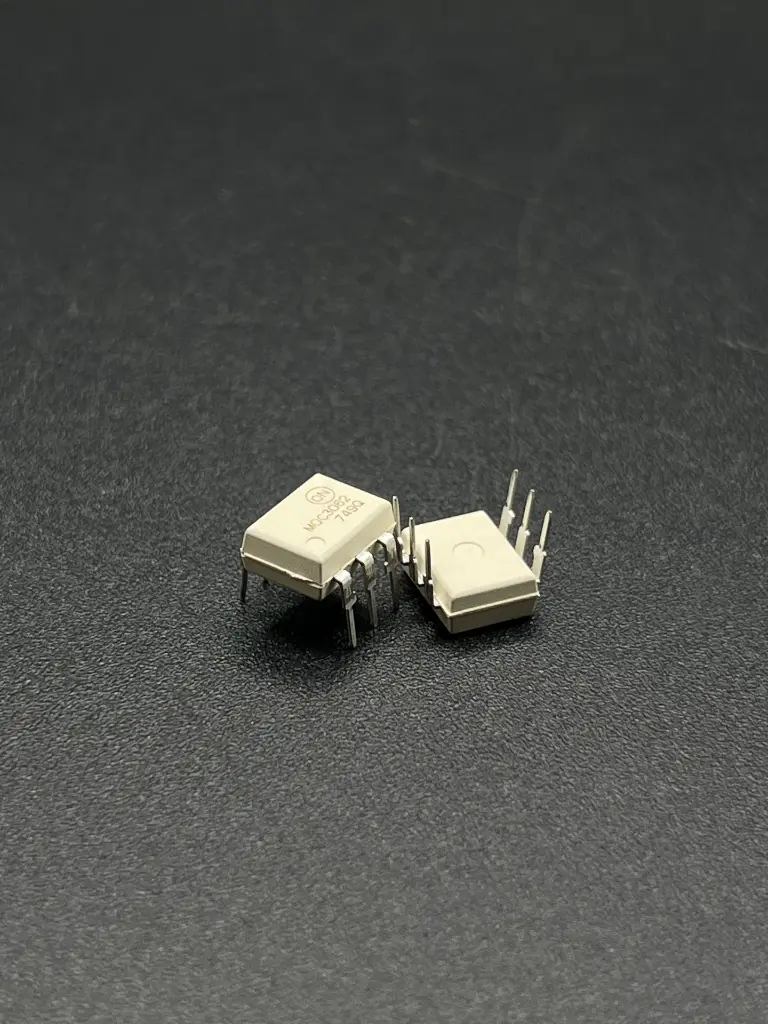

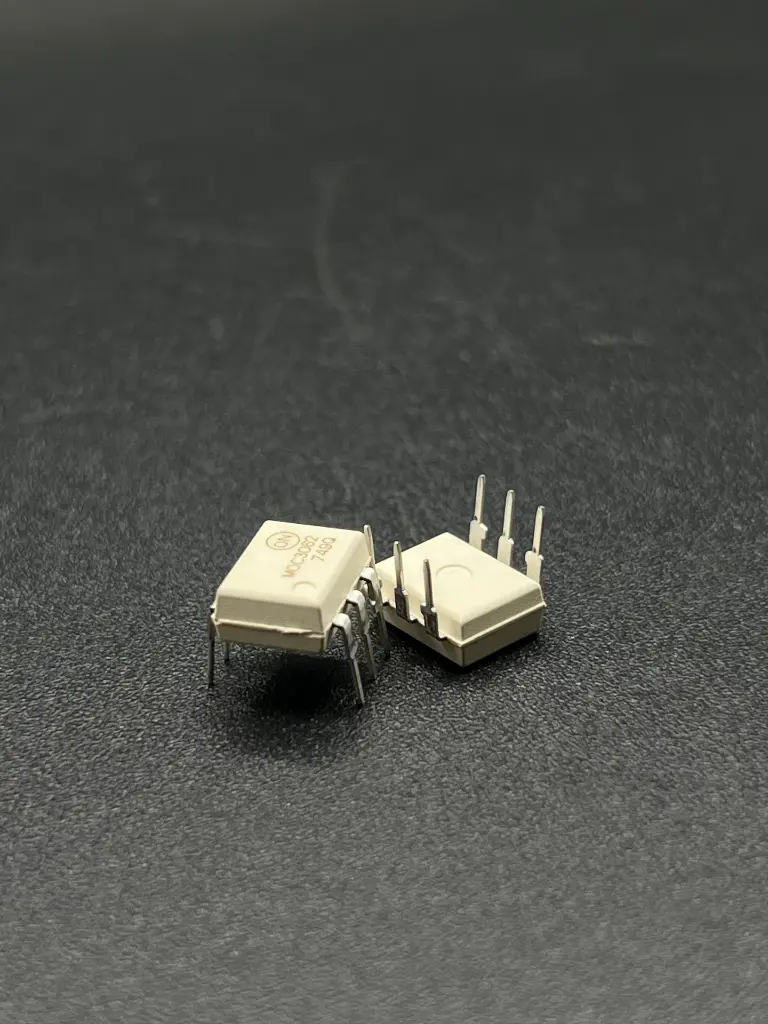

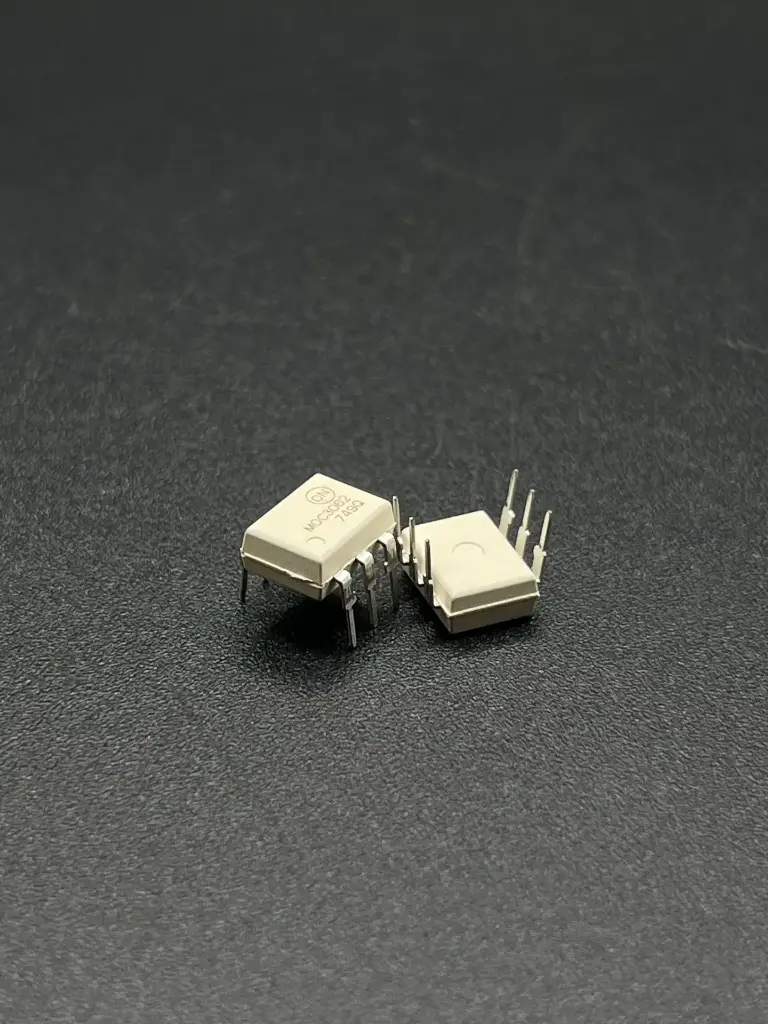

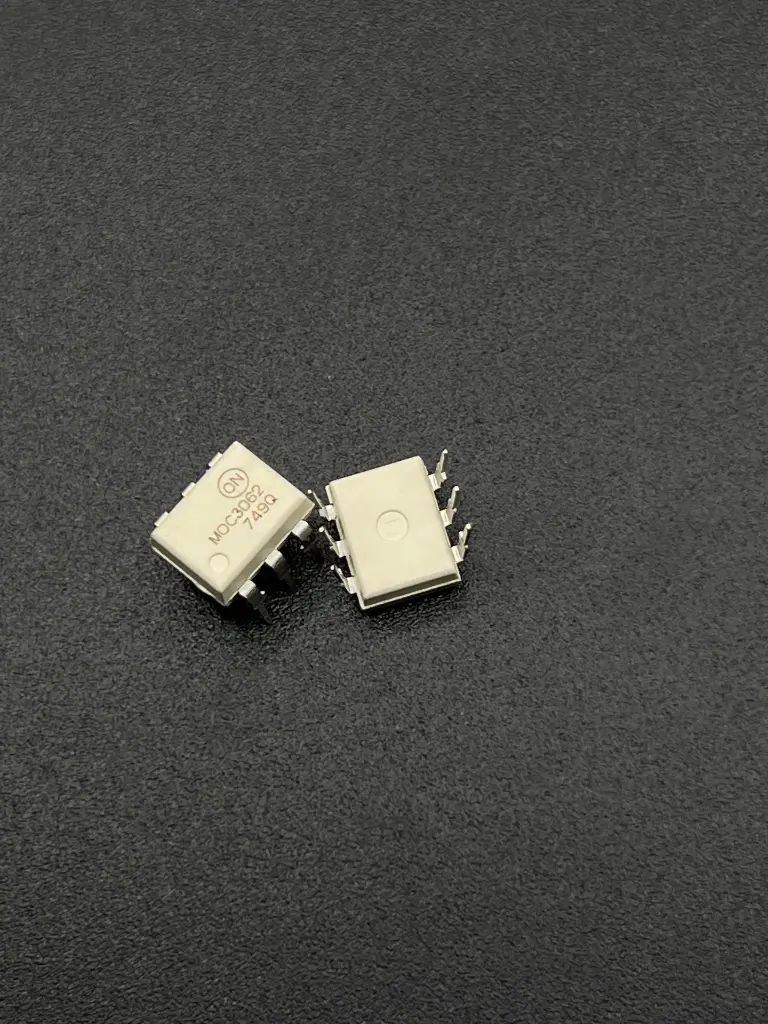

MOC3062 optocoupler

Description: The MOC3062 is an optocoupler device that integrates a gallium arsenide infrared emitting diode (LED) and a monolithic silicon detector performing the function of a zero-crossing bilateral triac driver. This optocoupler is designed for use in interfacing low voltage control signals with equipment powered from 115/240 VAC lines. It facilitates the control of triacs in various applications such as solid-state relays, industrial controls, motors, and consumer appliances. Key Features:

• Optically coupled isolator
• Gallium arsenide infrared LED and monolithic silicon detector
• Simplifies logic control of 115/240 VAC power
• Zero-crossing to minimize conducted and radiated line noise
• High isolation voltage: 7500 Vpk
• Superior static dv/dt: 2000 V/µs
• Safety and regulatory approvals: UL1577, IEC60747-5-5
• Pb-free and RoHS compliant

Technical Specifications:

• Package Type: 6-pin DIP
• Isolation Voltage: 7500 Vpk
• Input Control Voltage (V_F): 1.15V (typical) at 10mA forward current
• Peak Output Current (I_FM): ±100mA
• Trigger Current (I_FT): 5mA (typical)
• Maximum Output Voltage (V_TM): 400V (peak)
• Maximum Input Diode Forward Voltage (V_D): 1.5V (peak)
• Operating Temperature Range (T_OP): -40°C to +100°C
• Storage Temperature Range (T_STG): -55°C to +150°C

Applications:

• Solid-state relay drivers
• Industrial motor controls
• Lighting controls
• AC motor drives
• Temperature controls
• E.M. contactors

Datasheet: For detailed technical information, refer to the MOC3062 datasheet.
