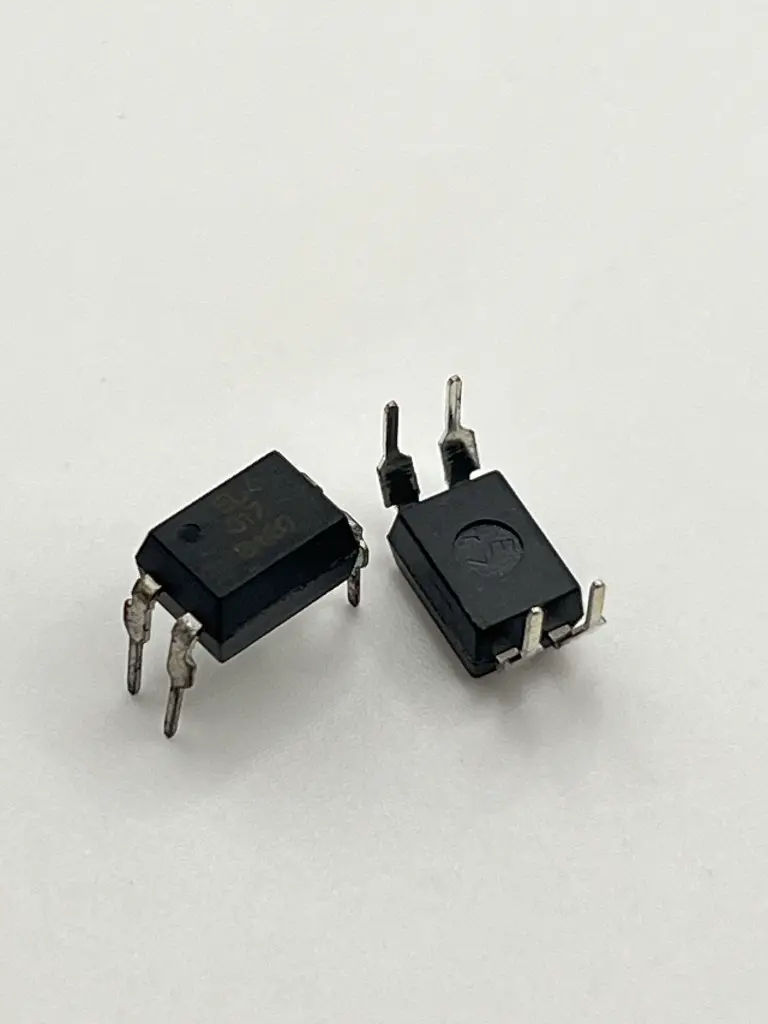

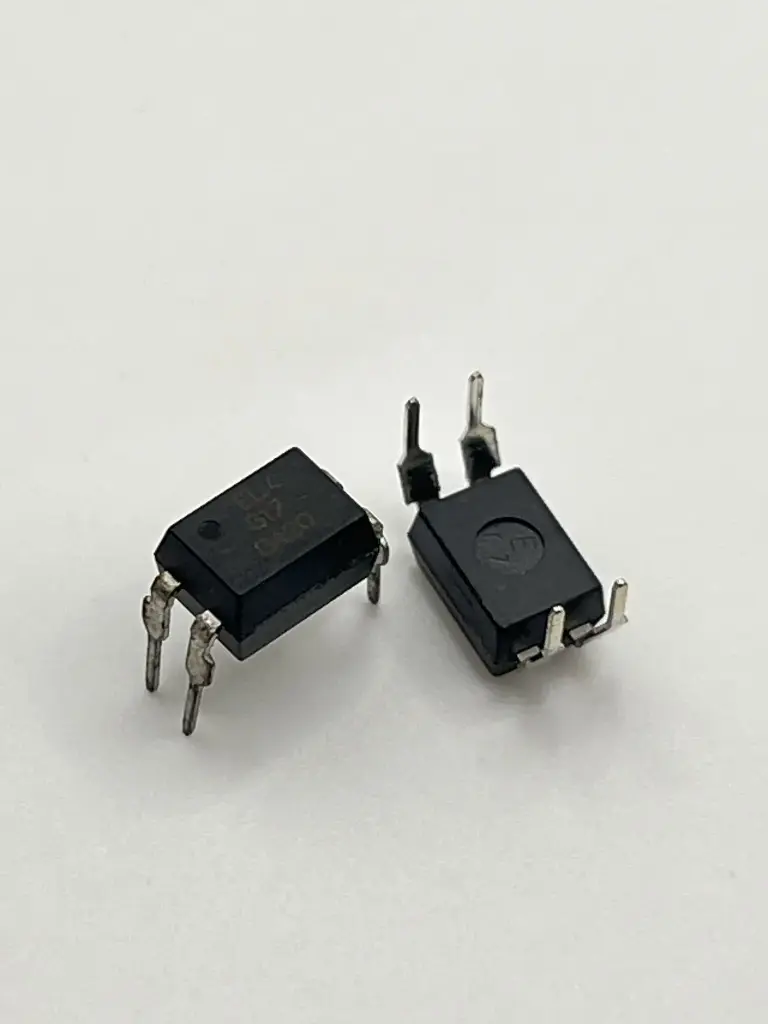

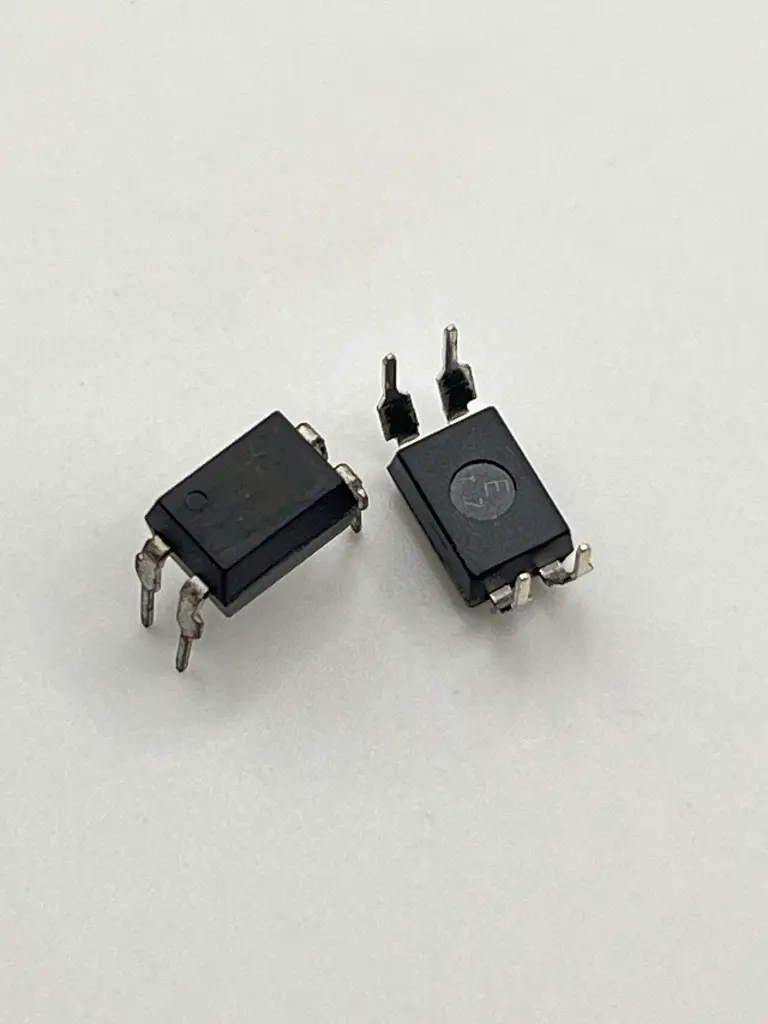

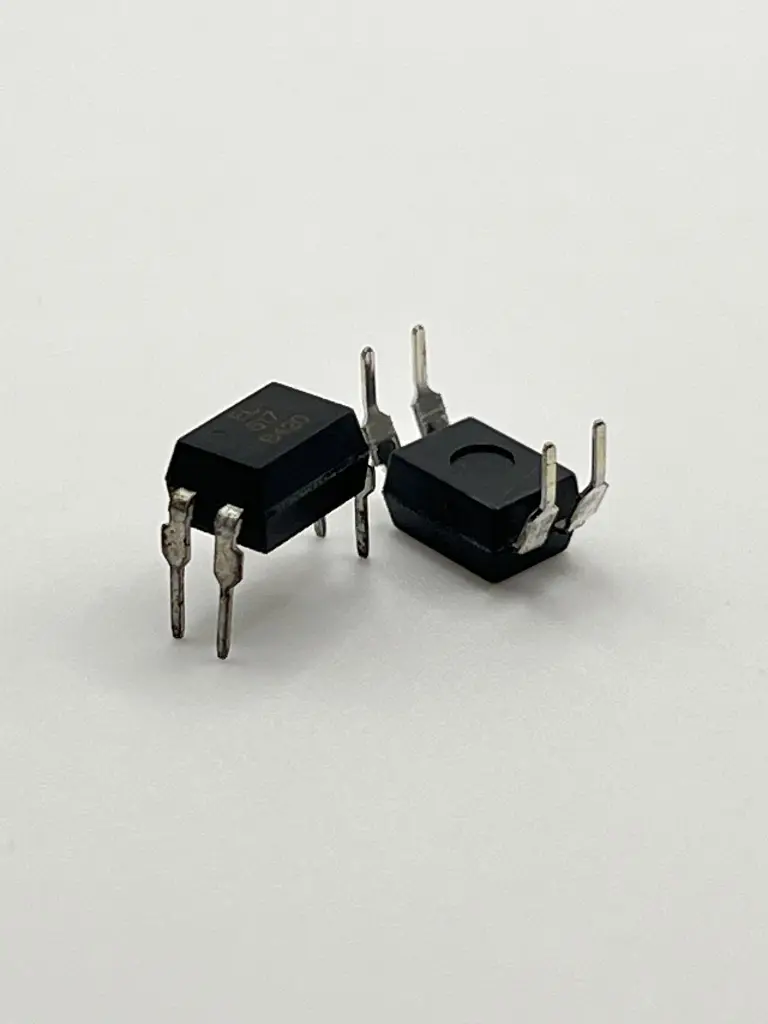

BPC817C (817C) optocoupler

Description:

The BPC817C is a popular optocoupler consisting of a Gallium Arsenide (GaAs) infrared light-emitting diode (LED) and a NPN silicon phototransistor. This configuration provides electrical isolation between input and output circuits, preventing unwanted signal interference and protecting sensitive components.

Key Features:

• High isolation voltage for reliable signal isolation
• Compact package (typically 6-pin DIP) for easy integration
• Fast switching speed for high-frequency applications
• Low power consumption
• Wide operating temperature range
• Input compatibility with TTL and CMOS logic levels

Technical Specifications:

• Package Type: 6-pin DIP
• Isolation Voltage: Typically 5000Vrms (refer to datasheet for exact value)
• Current Transfer Ratio (CTR): Varies depending on model (refer to datasheet)
• Response Time: Typically in the microsecond range (refer to datasheet)
• Operating Temperature Range: Refer to datasheet (typically -40°C to +85°C)

Applications:

• Signal isolation between control and power circuits
• Interfacing microcontrollers with high-voltage circuits
• Relay driving for AC load control
• Pulse transformers and optocouplers
• Industrial automation and control systems
• Medical equipment with isolated power supplies

Datasheet:

For detailed technical specifications, pin configurations, and application circuits, refer to the BPC817C datasheet.
