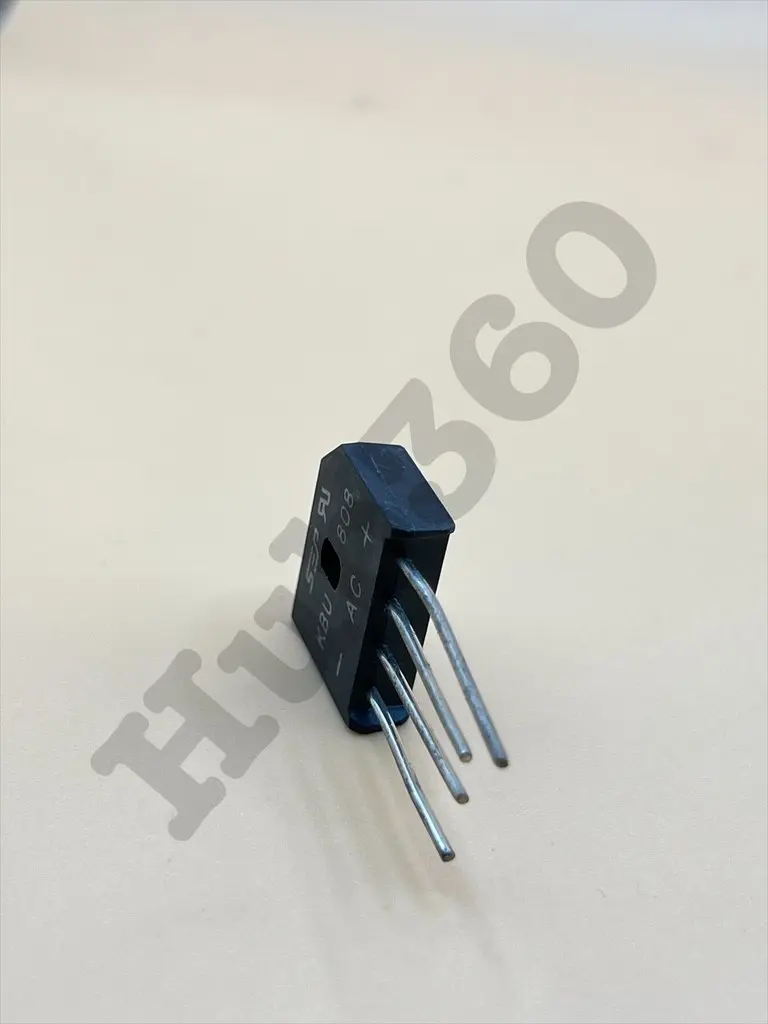

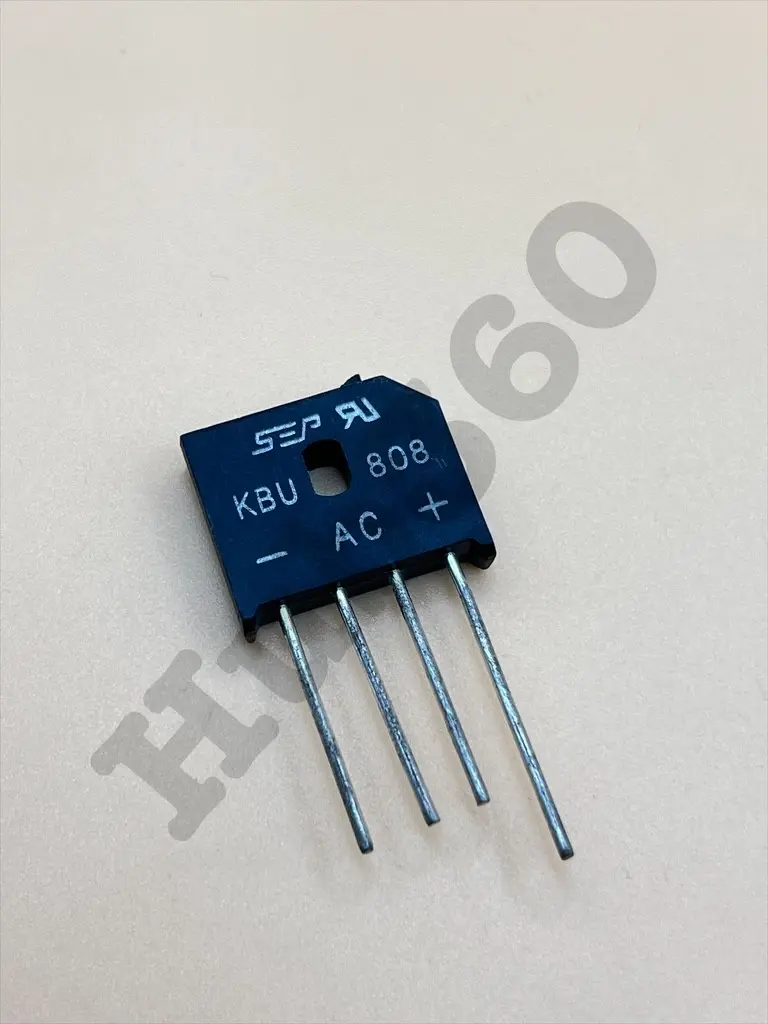

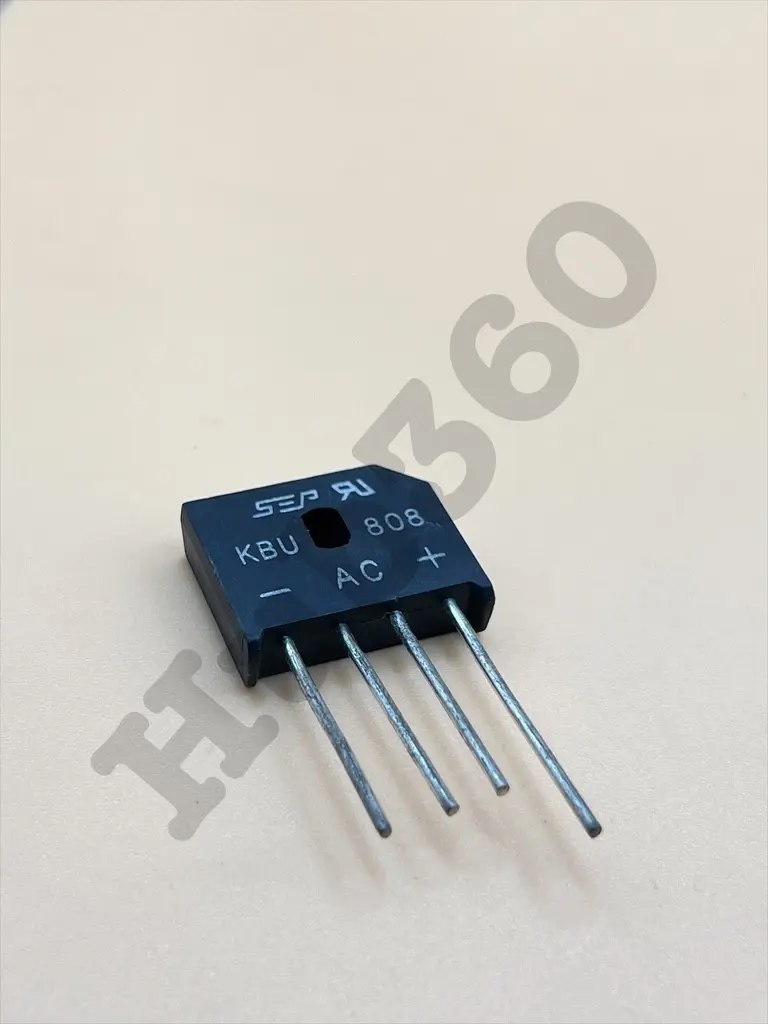

KBU808 8A 800V bridge rectifier
Description: The KBU808 is a single-phase bridge rectifier designed for converting alternating current (AC) to direct current (DC) in various electronic circuits and power supply applications. It consists of four diodes configured in a bridge configuration, offering efficient rectification with moderate current and voltage handling capabilities.
Key Features:
- Single-phase bridge rectifier
- Maximum Average Rectified Output Current (I_O): 8A
- Maximum Repetitive Peak Reverse Voltage (V_RRM): 800V
- Low forward voltage drop
- High surge current capability
- Compact and durable construction
- Maximum Average Rectified Output Current (I_O): 8A
- Peak Repetitive Reverse Voltage (V_RRM): 800V
- Maximum RMS Bridge Input Voltage (V_RMS): 560V
- Maximum DC Blocking Voltage (V_DC): 800V
- Maximum Forward Voltage Drop (V_F): 1.1V (at I_F = 8A, T_A = 55°C)
- Operating Temperature Range: -55°C to +150°C
- Package Type: KBU (4-SIP)
- Power supplies
- Battery chargers
- Welding equipment
- Motor drives
- Industrial automation
