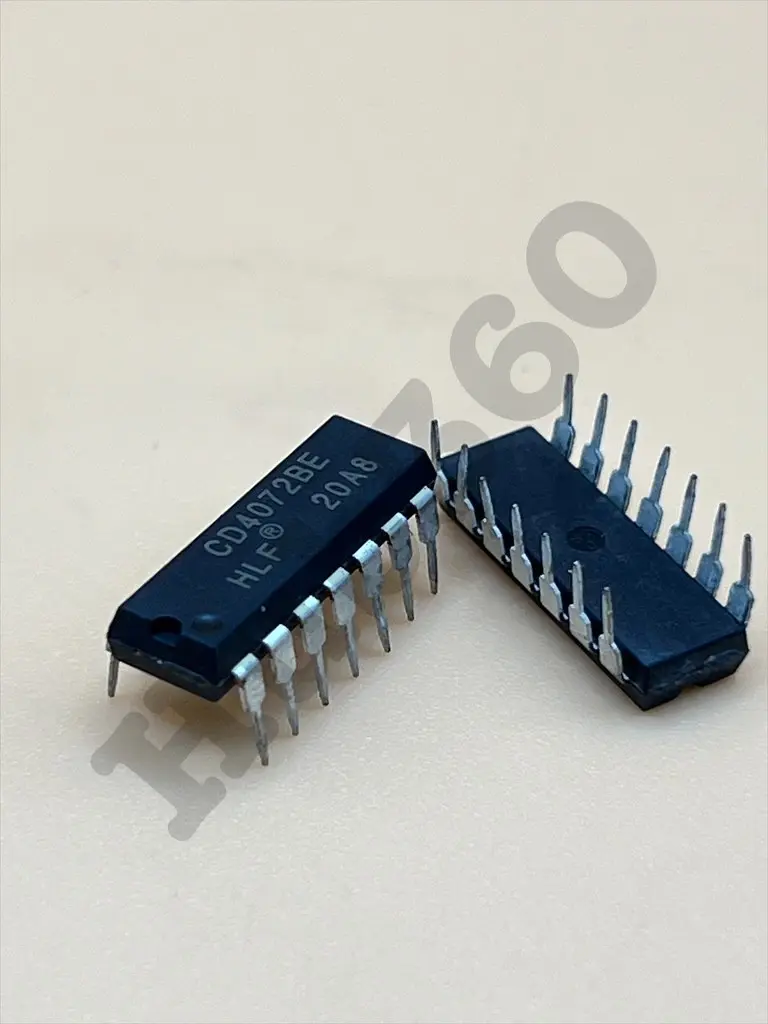

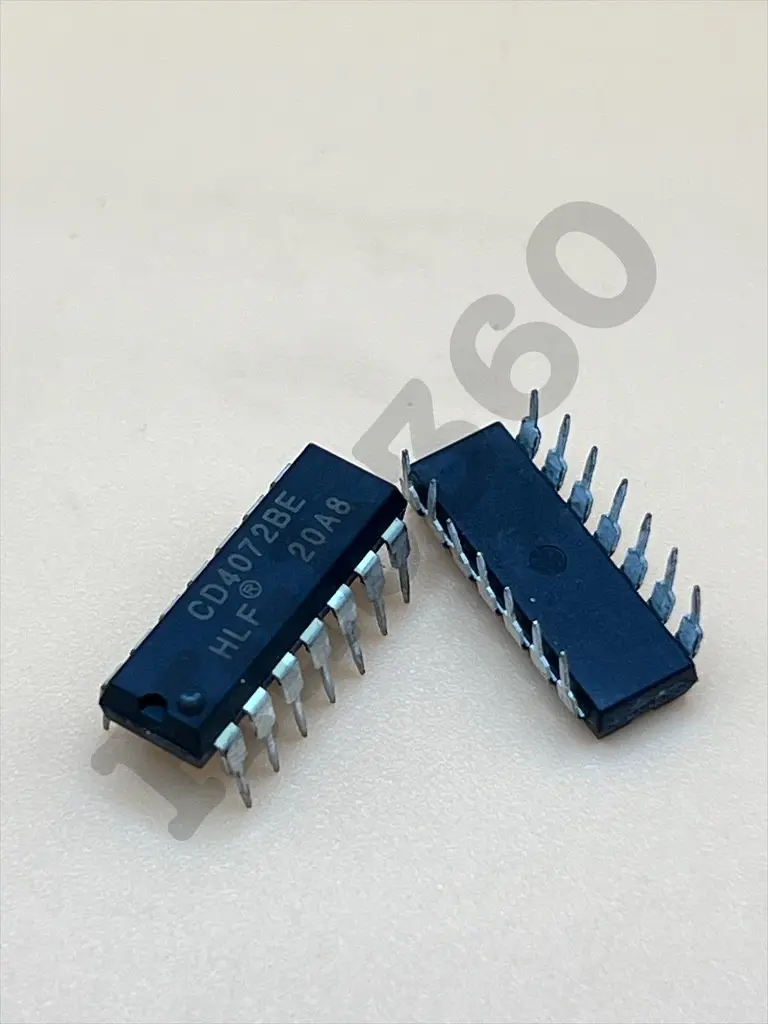

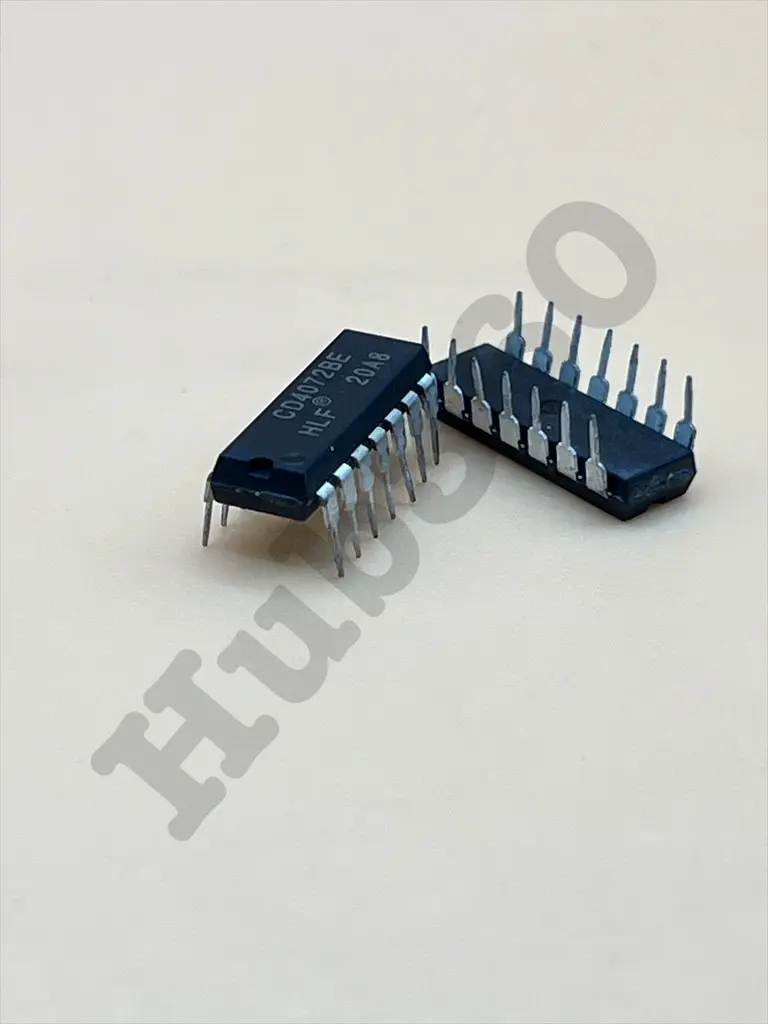

CD4072 logic chip
The CD4072 is a CMOS dual 4-input OR gate IC. It contains two independent OR gates, each capable of accepting four inputs and providing a single output that is high (logic 1) if at least one of its inputs is high.
Key Features:
- Dual 4-input OR gates in a single package
- CMOS technology for low power consumption
- Wide supply voltage range: typically operates from 3V to 15V
- High noise immunity
- Direct compatibility with TTL and CMOS logic levels
- Logic Family: CMOS
- Number of OR Gates: 2 (each with 4 inputs)
- Supply Voltage Range: 3V to 15V
- Typical Operating Frequency: Up to 5 MHz at V_DD = 10V
- Power Dissipation: 500 mW (max)
- Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Output Voltage (V_OH): V_DD - 0.05V min
- Logic level conversion and interfacing
- Data processing and control in digital circuits
- General-purpose logic operations
