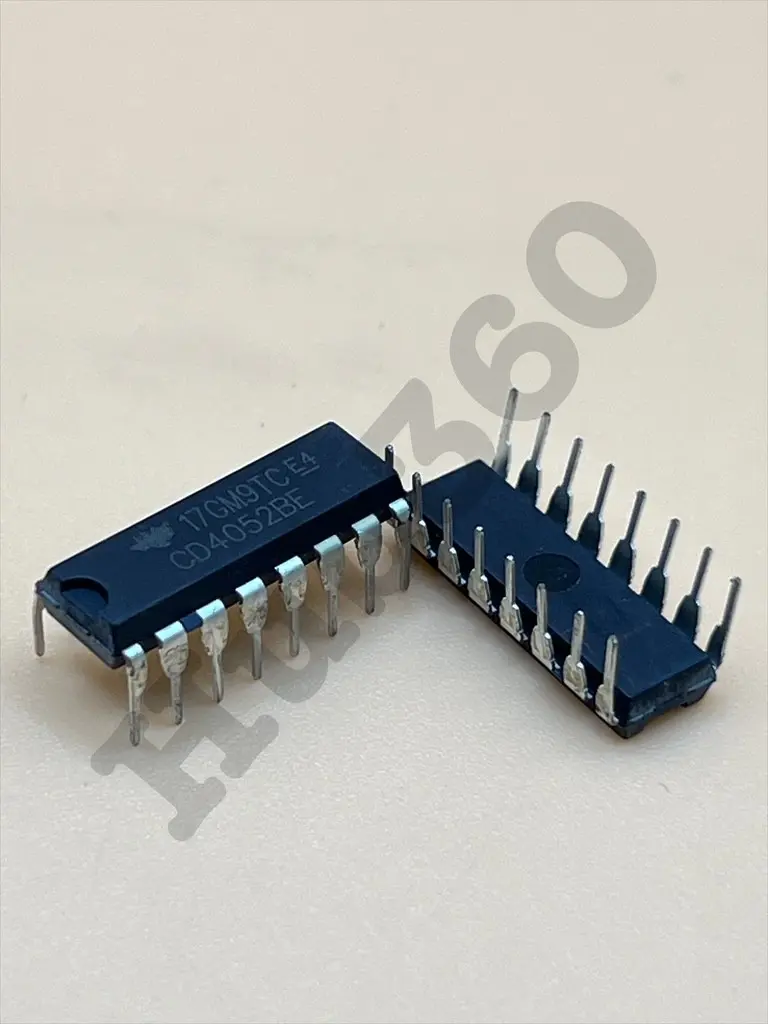

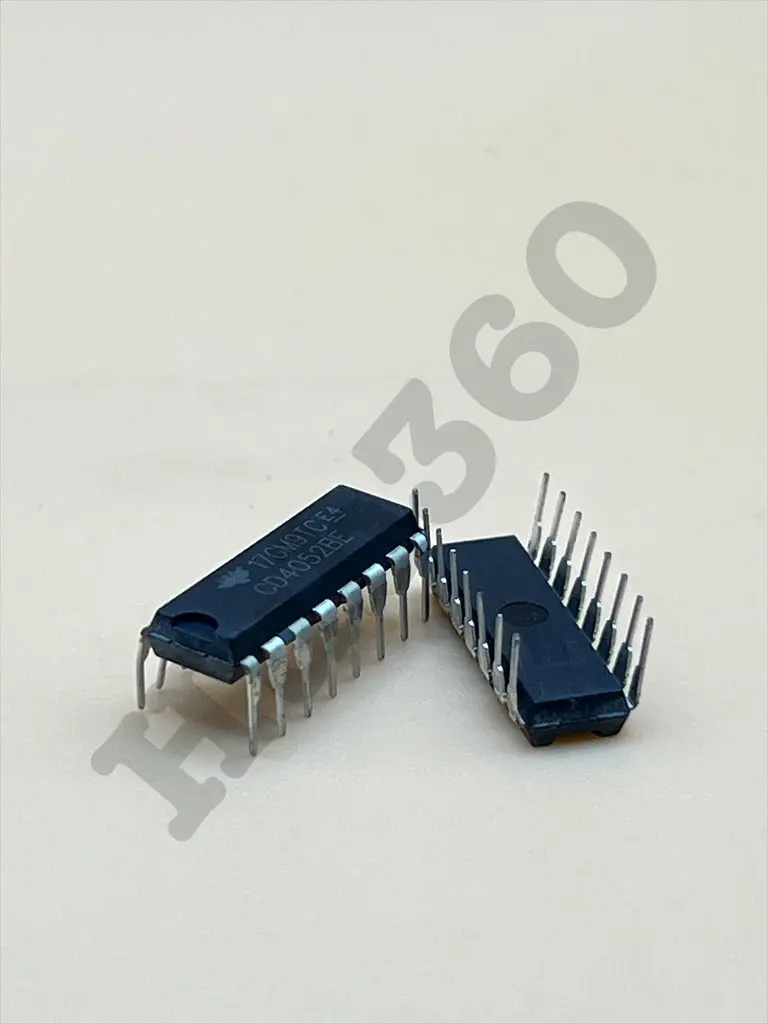

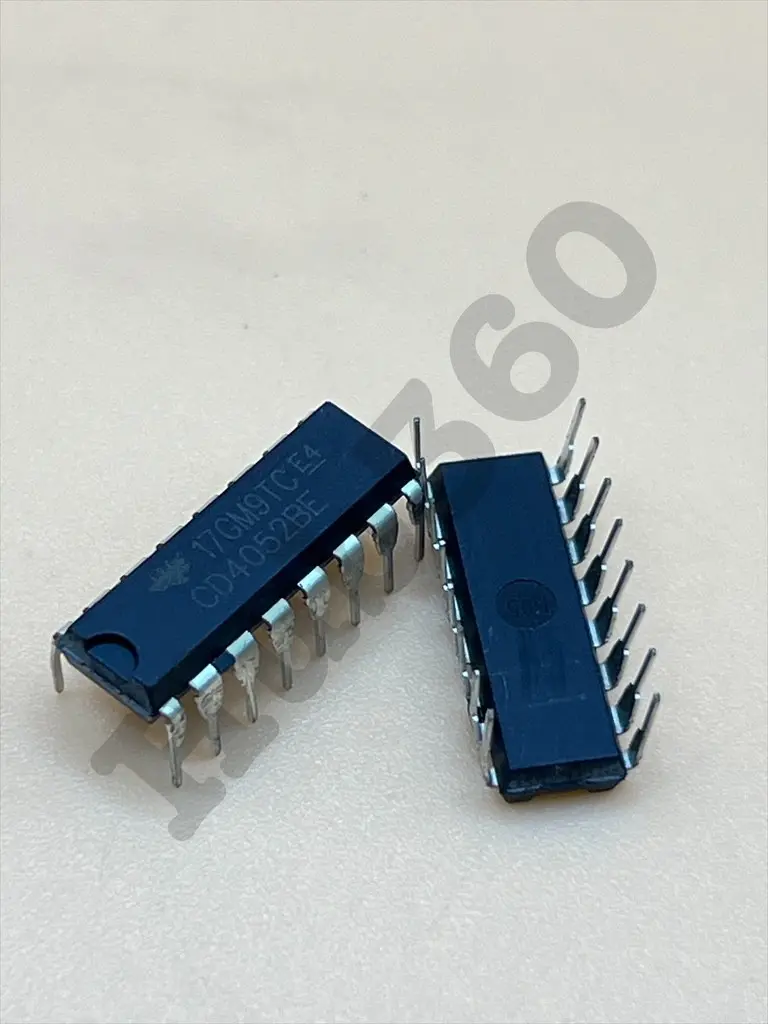

CD4052BE multiplexer / signal separator
The CD4052BE is a CMOS analog multiplexer/demultiplexer IC with two independent channels. It enables analog signals to be switched between various sources and destinations, making it useful for routing signals in electronic circuits. The device operates with a wide voltage range and low power consumption, suitable for various analog switching applications.
Key Features:
- Dual 4-channel Multiplexer/Demultiplexer
- Wide Supply Voltage Range: 3V to 15V
- Low ON Resistance: 125Ω (Typical) at VDD - VSS = 10V
- High Noise Immunity: 0.45 VDD (Typical)
- Compatible with TTL, CMOS Logic Levels
- Supply Voltage Range: 3V to 15V
- On-Resistance (R_ON): 125Ω (Typical)
- Operating Temperature Range: -55°C to 125°C
- Package Type: PDIP-16, SOIC-16
- Analog Signal Multiplexing
- Data Acquisition Systems
- Audio Signal Routing
- Instrumentation and Measurement Systems
No Specifications
