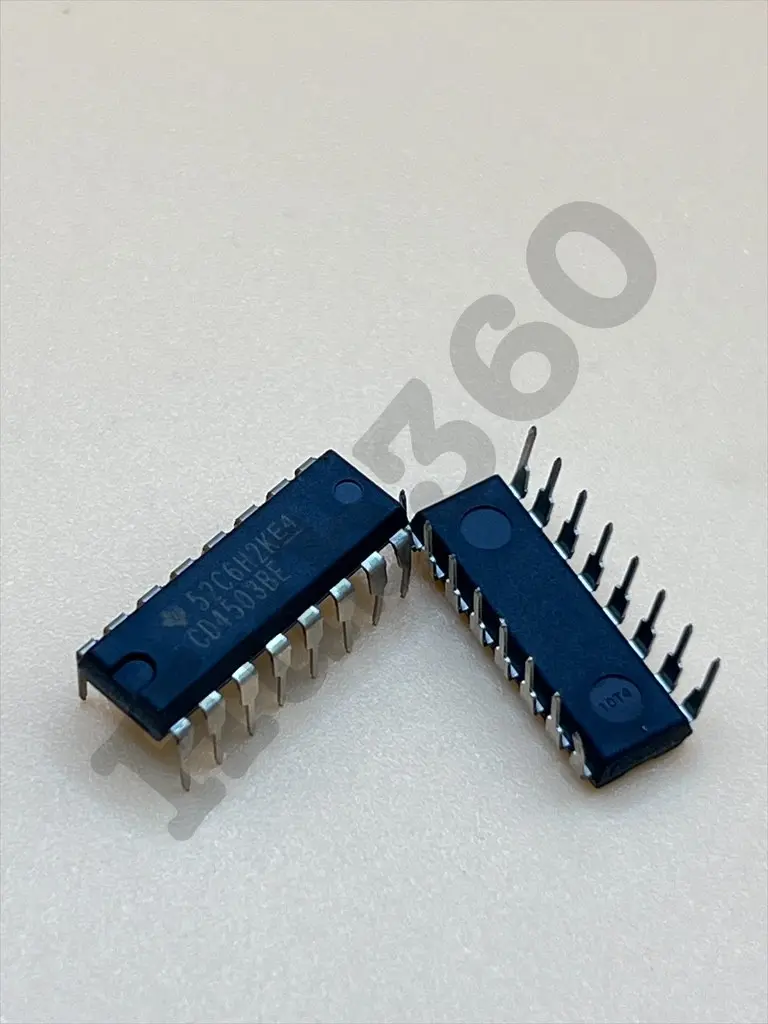

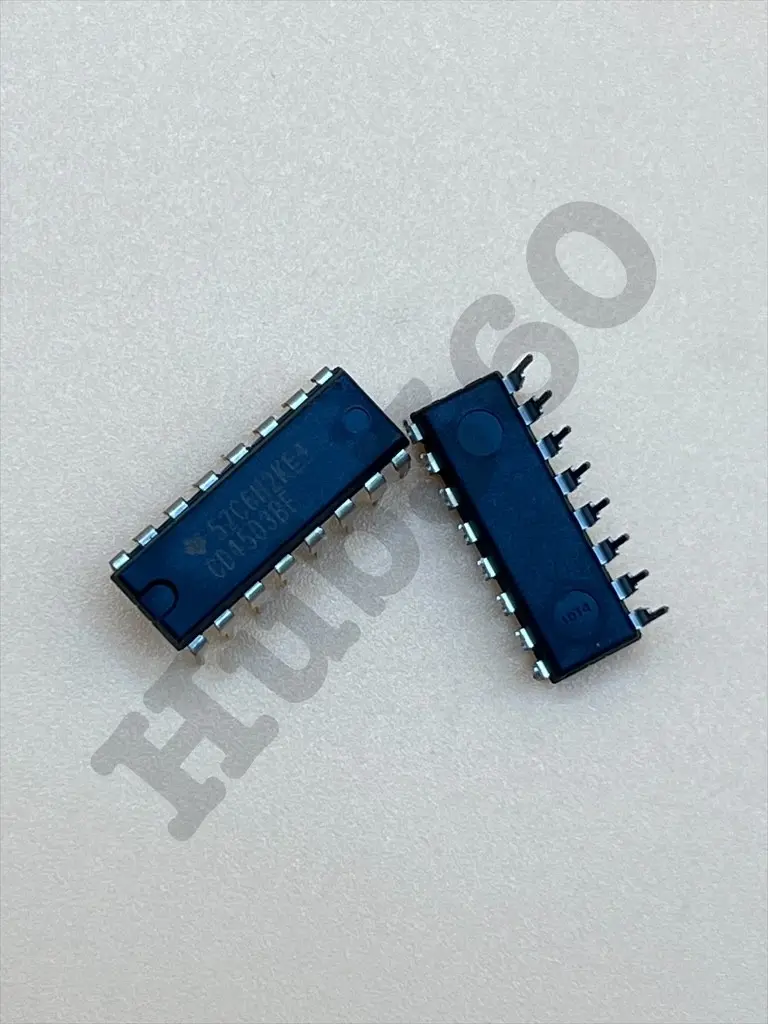

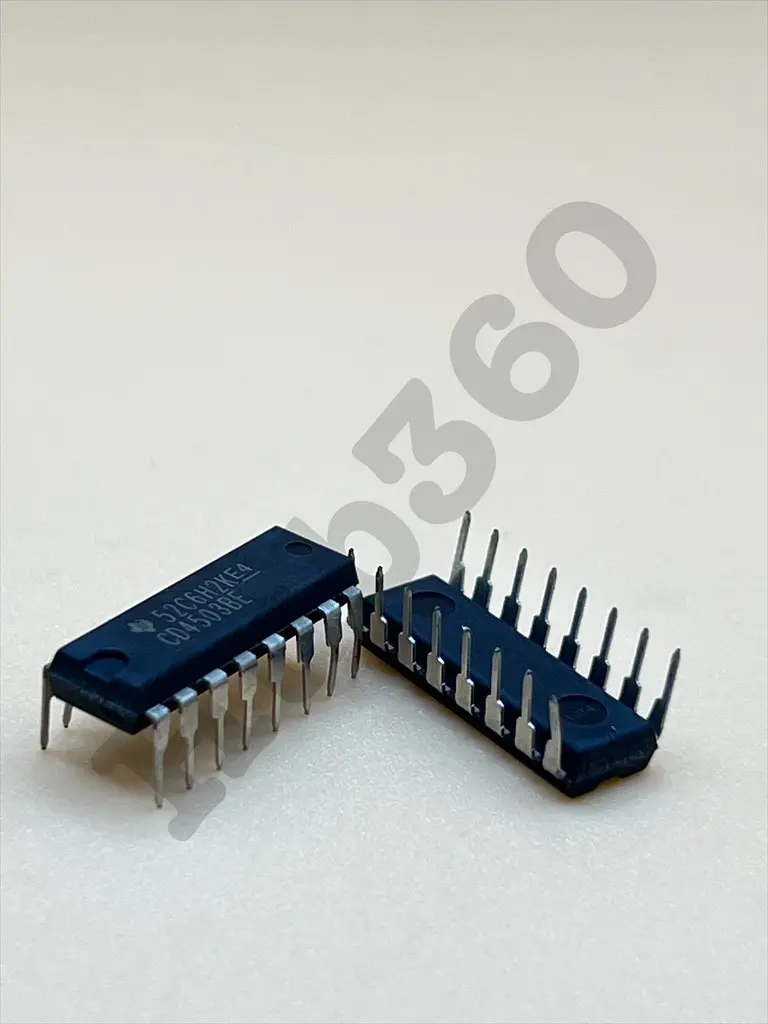

CD4503BE Six-three-state in phase buffer
The CD4503BE is a high-speed CMOS logic buffer that features six three-state buffers with high current source and sink capability. This device is designed to drive high capacitive loads and to interface between CMOS outputs and TTL inputs. It offers high-speed operation with low power consumption.
Key Features:
- Six in-phase buffers
- Three-state outputs
- High current drive capability
- Wide supply voltage range
- Low power consumption
- High noise immunity
- Input protection circuits
- Logic Family: CMOS
- Number of Buffers: 6
- Supply Voltage Range: 3V to 15V
- High-Level Output Current (I_OH): -4 mA
- Low-Level Output Current (I_OL): 4 mA
- High-Level Input Voltage (V_IH): 0.7 V_DD min
- Low-Level Input Voltage (V_IL): 0.3 V_DD max
- Propagation Delay Time: 250 ns (typical) at V_DD = 10V
- Power Dissipation: 500 mW (max)
- Bus driver applications
- Logic level shifters
- High-speed data transmission
- Interface between CMOS and TTL
- Driving capacitive loads
No Specifications
