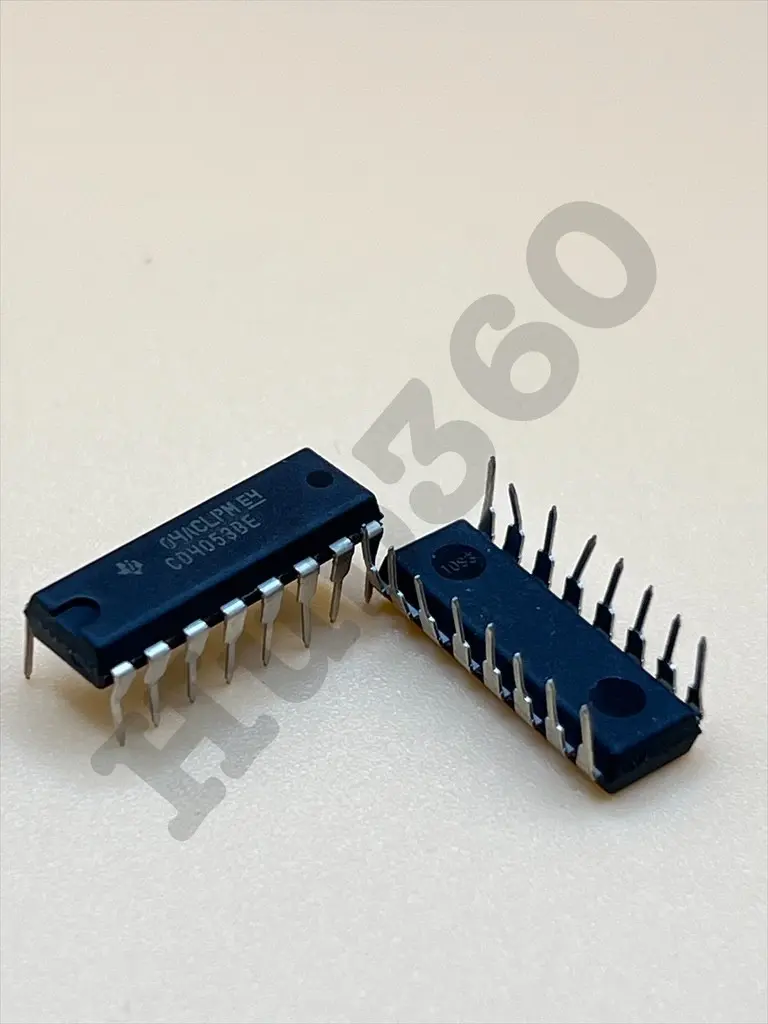

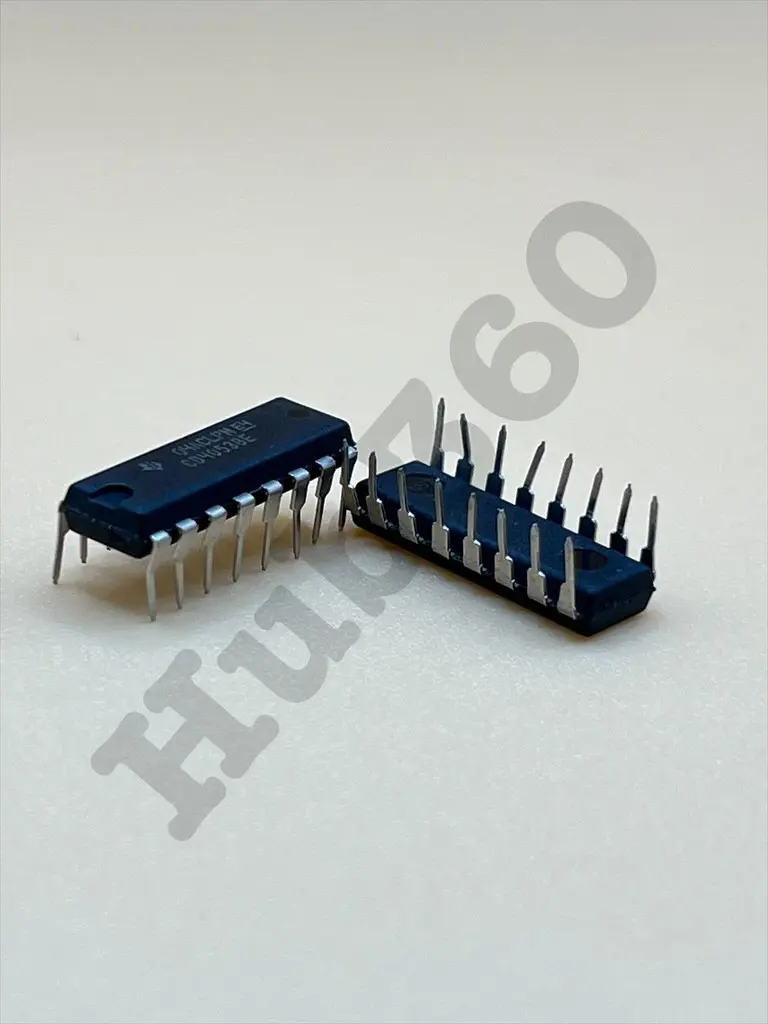

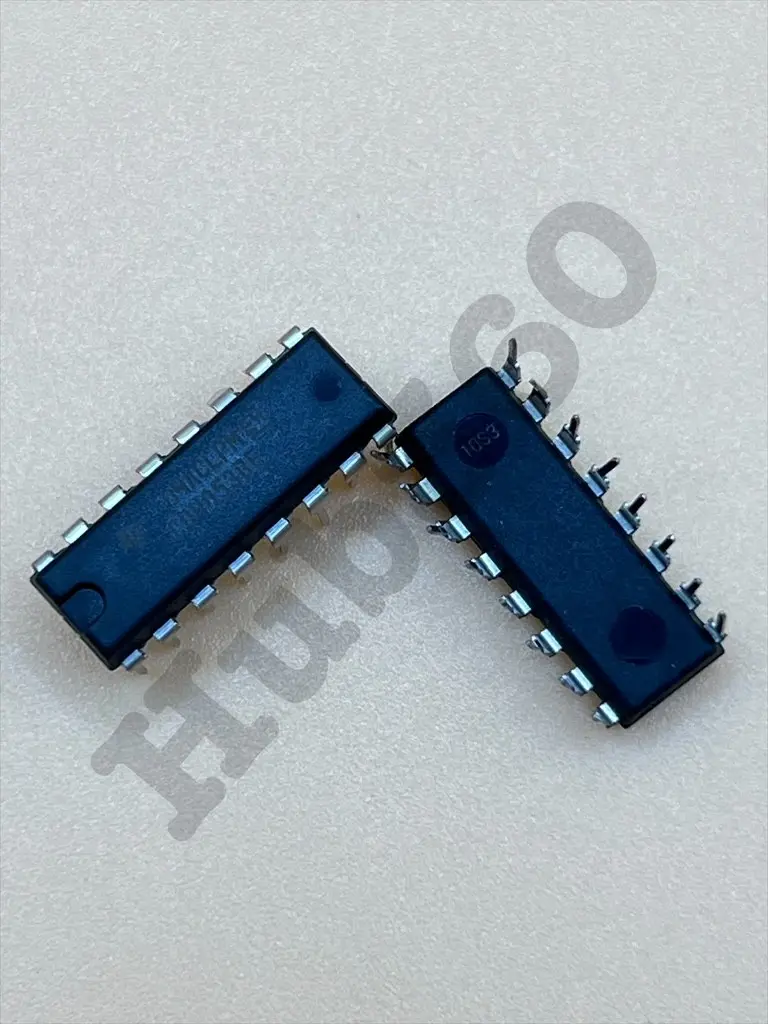

CD4053 3 sets of 2 way analog switch
The CD4053 is an analog multiplexer/demultiplexer that contains three separate single-pole, double-throw (SPDT) switches. It operates as a triple 2-channel multiplexer with common select inputs. The CD4053 is part of the CD4000 series of CMOS logic devices and is used for signal routing, sampling, and multiplexing of analog and digital signals.
Key Features:
- Triple 2-channel multiplexer
- Wide supply voltage range
- Low "ON" resistance and "OFF" leakage current
- Low crosstalk between switches
- High noise immunity
- Logic-level control inputs
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- "ON" Resistance (R_ON): 125Ω typical at V_DD = 10V
- "OFF" Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
