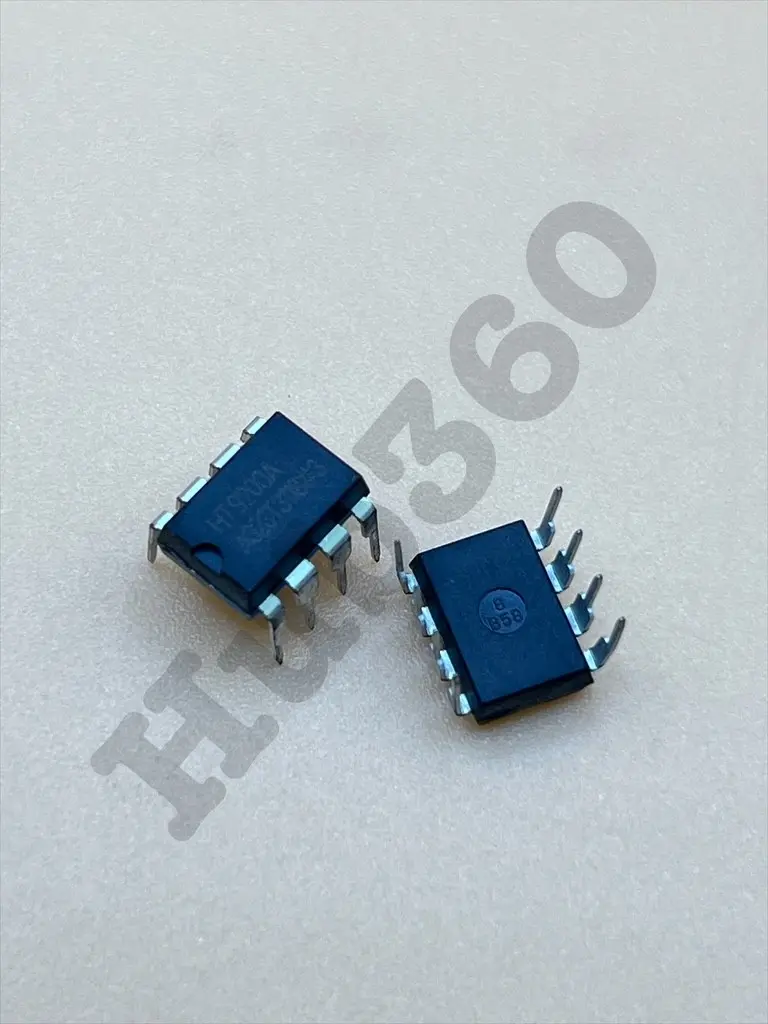

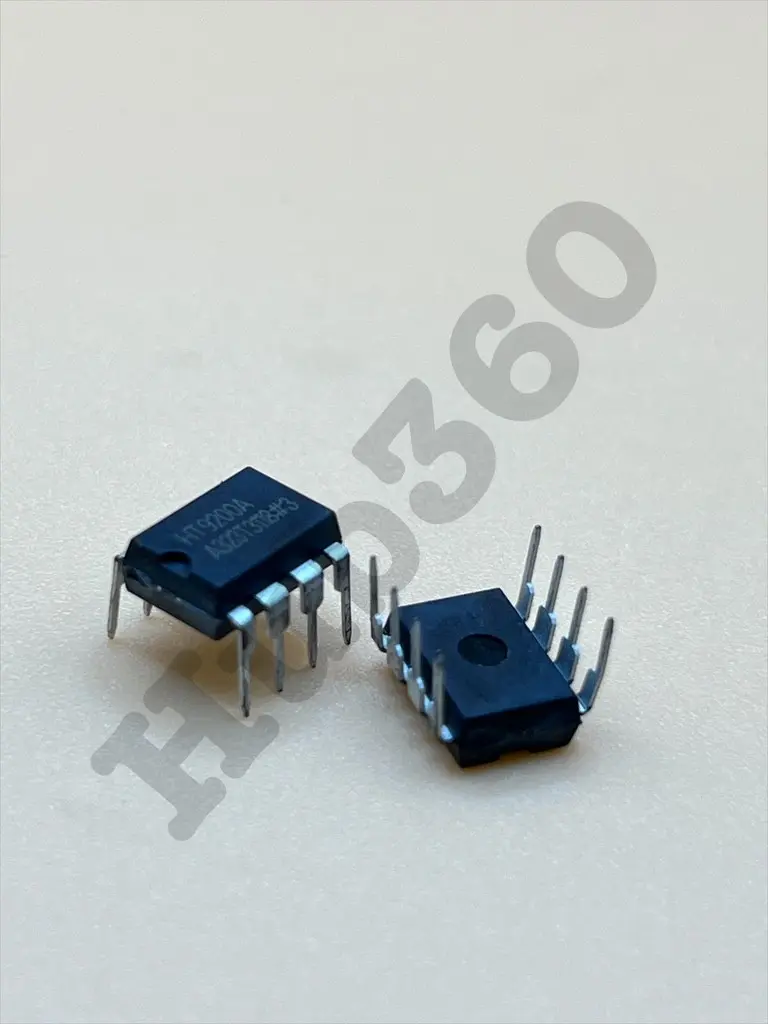

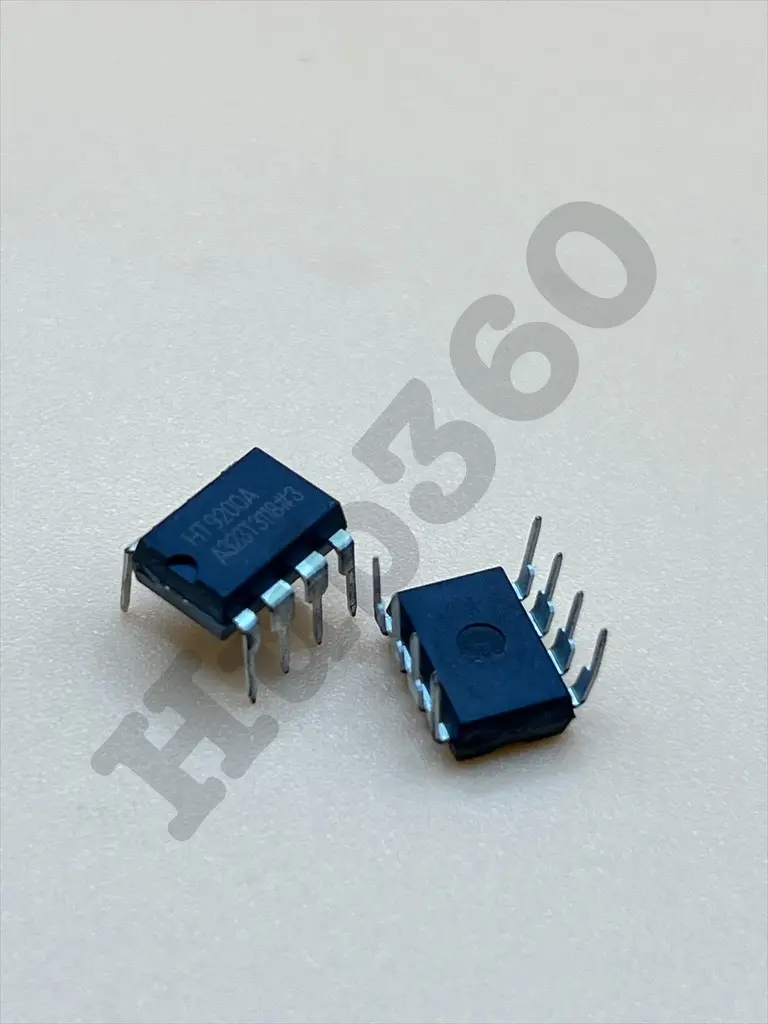

HT9200A DTMF generator DIP
The HT9200A is a versatile DTMF (Dual-tone multi-frequency) generator IC designed by Holtek. It is used to generate DTMF signals commonly utilized in telecommunication systems for signaling and user input. Available in a DIP (Dual In-line Package), the HT9200A is easy to handle and suitable for prototype development and educational purposes. It offers reliable DTMF signal generation with minimal external components, making it ideal for a variety of applications.
Key Features:
- DTMF signal generation
- Single power supply operation
- Low power consumption
- High accuracy and stability
- Serial/parallel mode selectable
- Wide operating voltage range
- Convenient DIP package for easy handling
- Operating Voltage: 2.7V to 5.5V
- Current Consumption: Low power operation
- Output Frequencies: Dual-tone multi-frequency signals
- Modes of Operation: Serial and parallel mode selectable
- Package Type: DIP
- Operating Temperature Range: -20°C to +75°C
- Telecommunication systems
- Remote control systems
- User input interfaces
- Security systems
- Embedded control systems
- Telephone dialers
