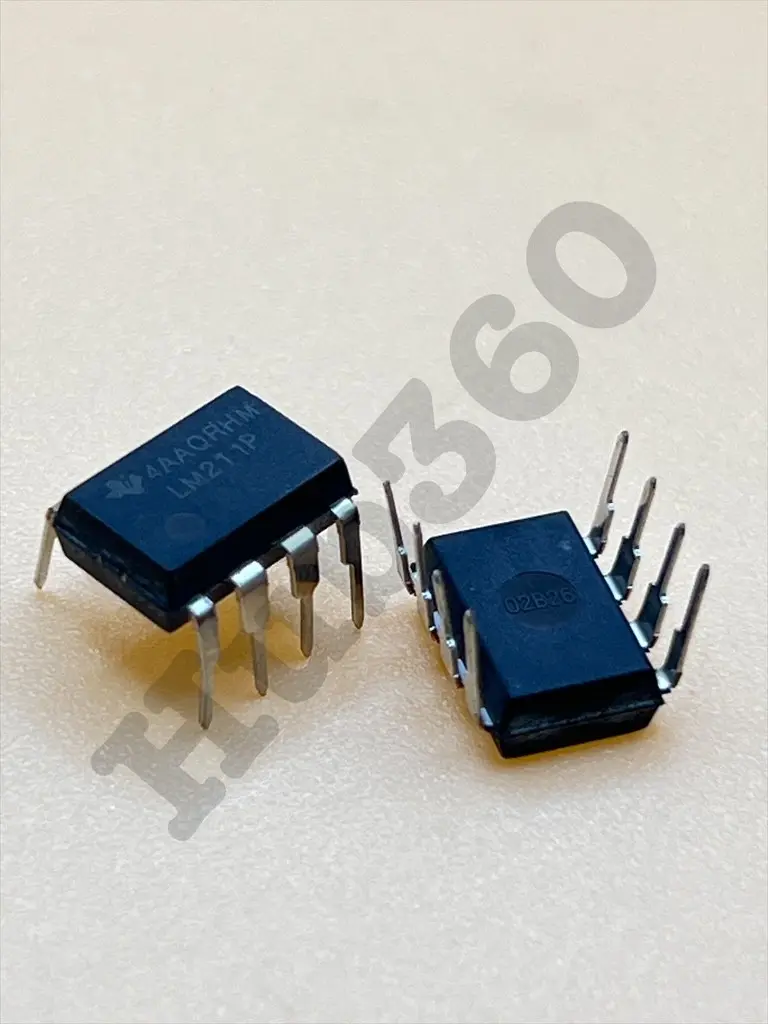

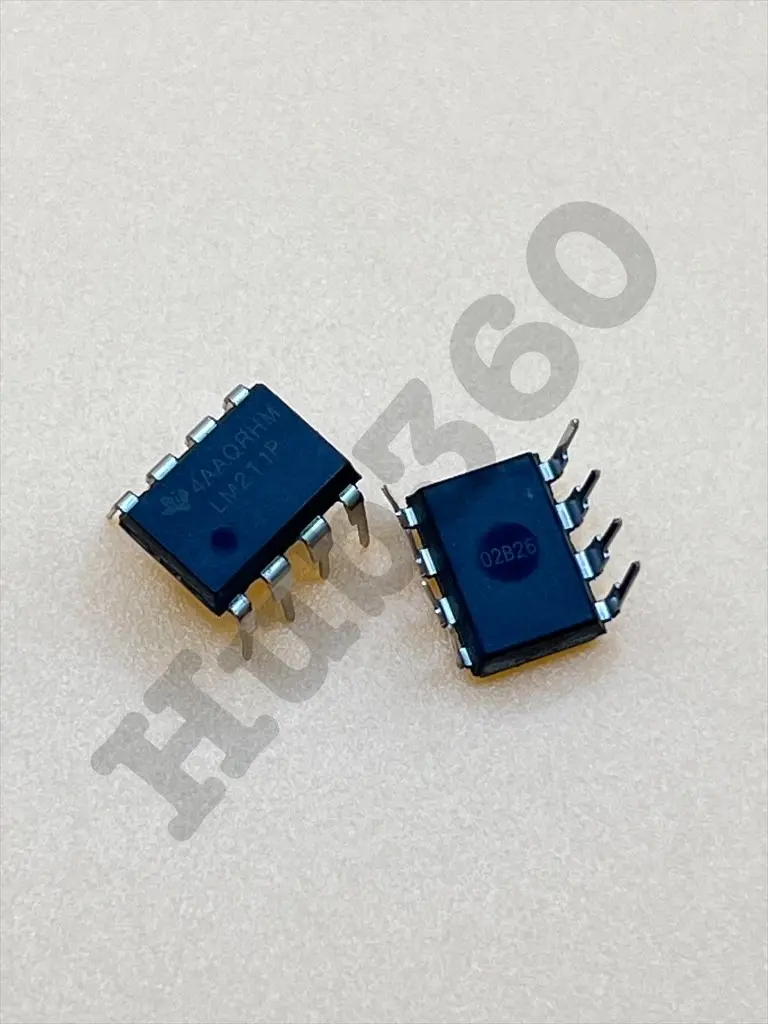

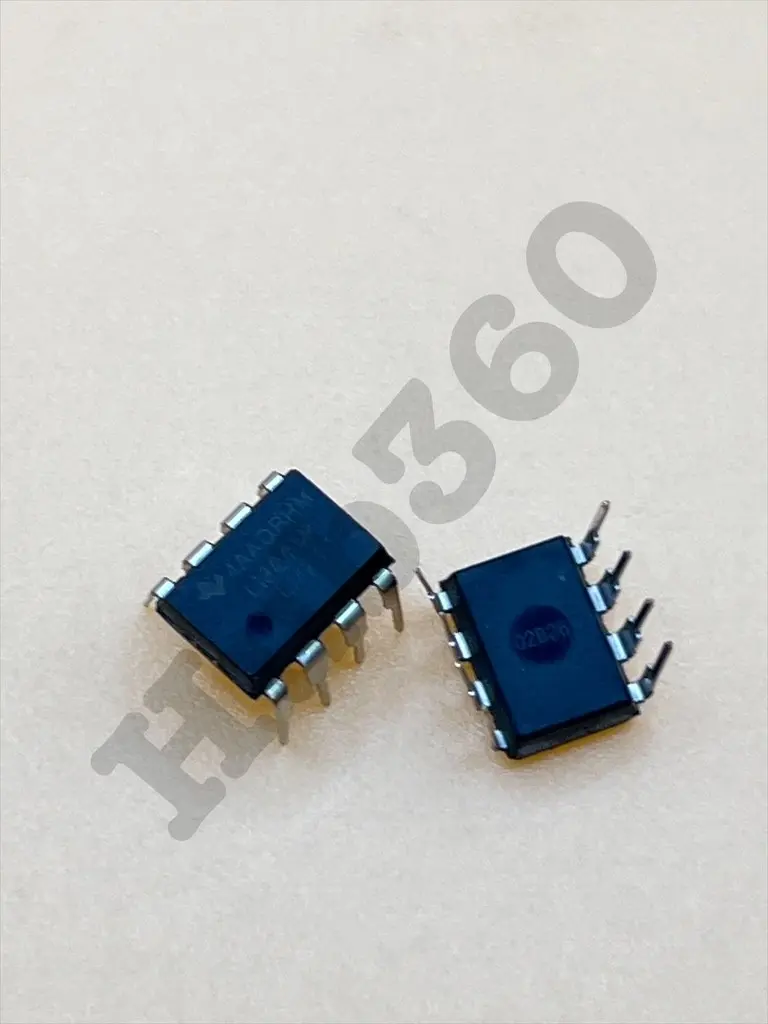

LM211 comparator
The LM211 is a versatile voltage comparator designed for a wide range of applications. It features low input offset voltage, high speed, and single or dual power supply operation. Packaged in various configurations, including DIP, SOIC, and TSSOP, it is suitable for both commercial and industrial applications.
Key Features:
- Low input offset voltage: 0.7 mV
- High speed response time: 200 ns
- Wide supply voltage range: 3V to 32V (single supply) or ±1.5V to ±16V (dual supply)
- Low input bias current: 250 nA
- Low input offset current: 3 nA
- Differential input voltage range equal to the supply voltage
- Output compatible with TTL, DTL, ECL, MOS, and CMOS logic levels
- Can drive loads up to 50 mA
- Supply Voltage: 3V to 32V (single supply) or ±1.5V to ±16V (dual supply)
- Input Offset Voltage: 0.7 mV (typical)
- Input Bias Current: 250 nA (typical)
- Input Offset Current: 3 nA (typical)
- Response Time: 200 ns (typical)
- Operating Temperature Range: 0°C to +70°C (commercial) or -40°C to +85°C (industrial)
- Package Options: DIP-8, SOIC-8, TSSOP-8
- Zero-crossing detectors
- Voltage level detectors
- Oscillators
- Analog-to-digital converters
- Signal conditioning
- Industrial control systems
