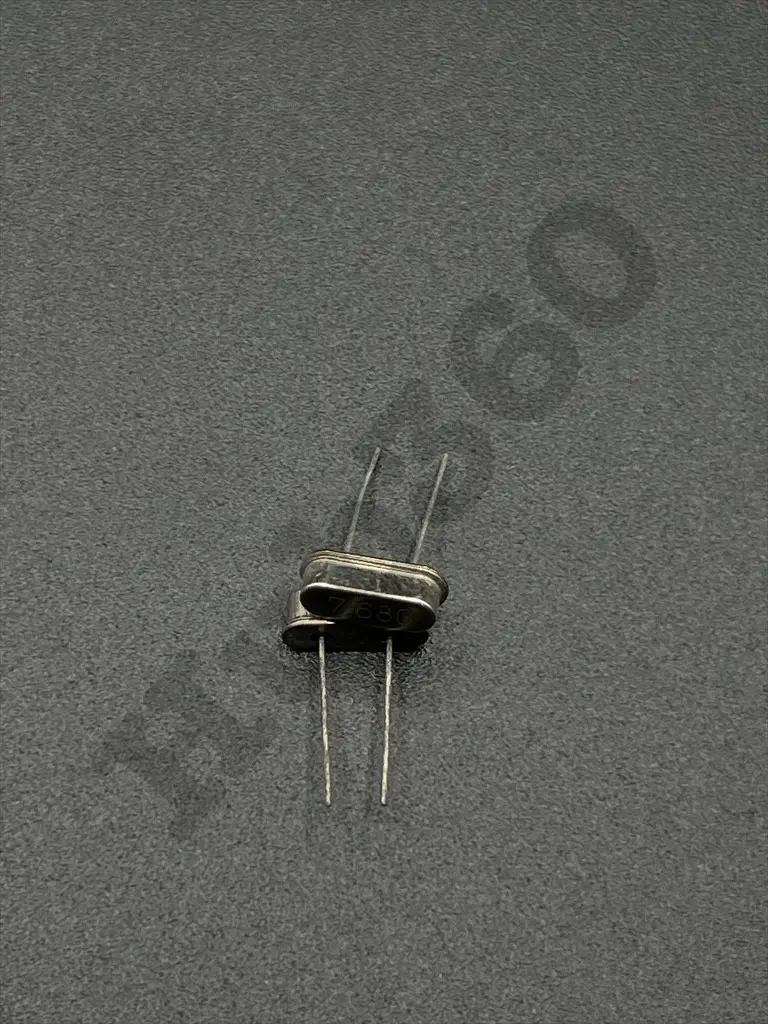

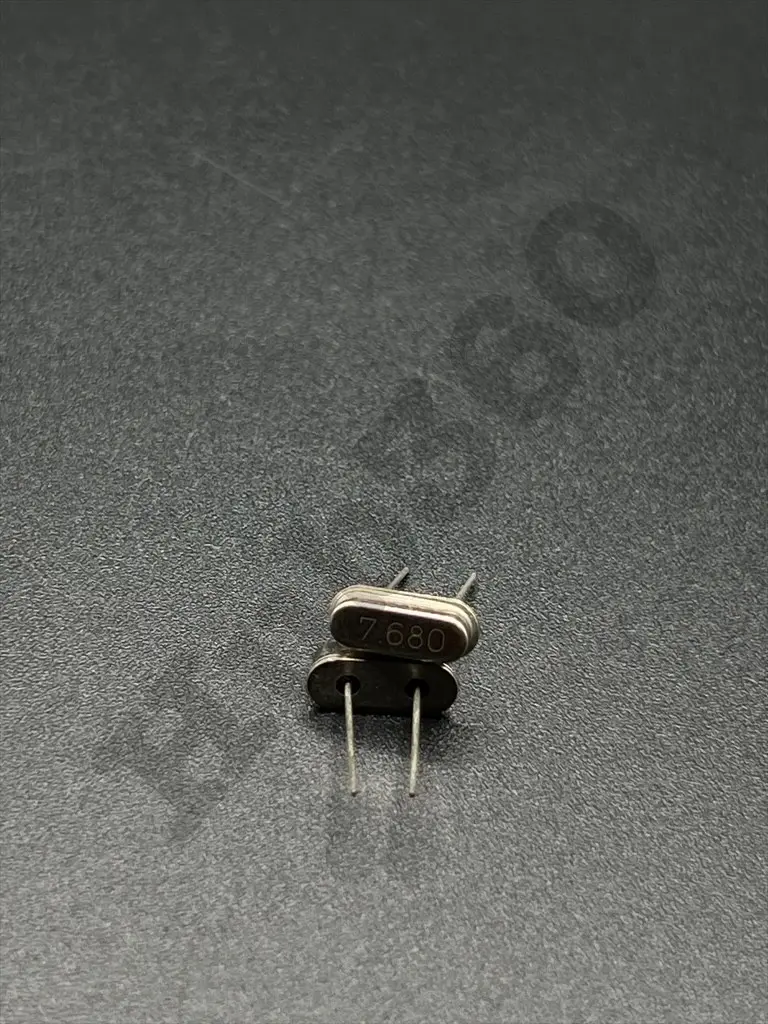

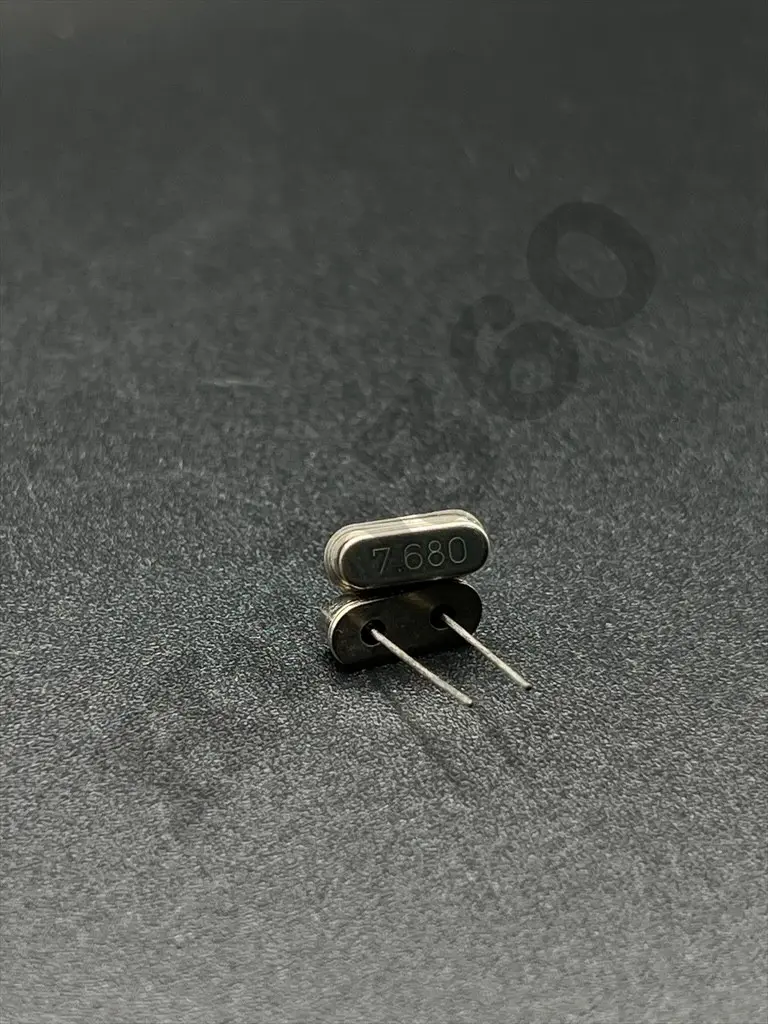

7.680MHz crystal oscillator
A 7.680MHz crystal oscillator is an electronic component that provides a stable clock signal for various applications. This quartz crystal oscillator operates at a frequency of 7.680MHz and is commonly used in microcontroller clock circuits, communication devices, and various timing applications due to its high accuracy and stability.
Key Features:
- Frequency: 7.680MHz
- High stability and accuracy
- Low aging rate
- Compact package
- Low power consumption
- Wide temperature range operation
- Frequency Tolerance: ±20ppm to ±50ppm (typical)
- Load Capacitance: 18pF (typical)
- Operating Temperature Range: -20°C to +70°C (standard) or -40°C to +85°C (extended)
- Equivalent Series Resistance (ESR): 50Ω max
- Drive Level: 10µW max
- Aging: ±3ppm/year max
- Package: HC-49S, HC-49SMD, or other surface mount and through-hole options
- Microcontroller clock circuits
- Communication devices
- Timing and control circuits
- Frequency synthesis
- Consumer electronics
- Measurement and test equipment
No Specifications
