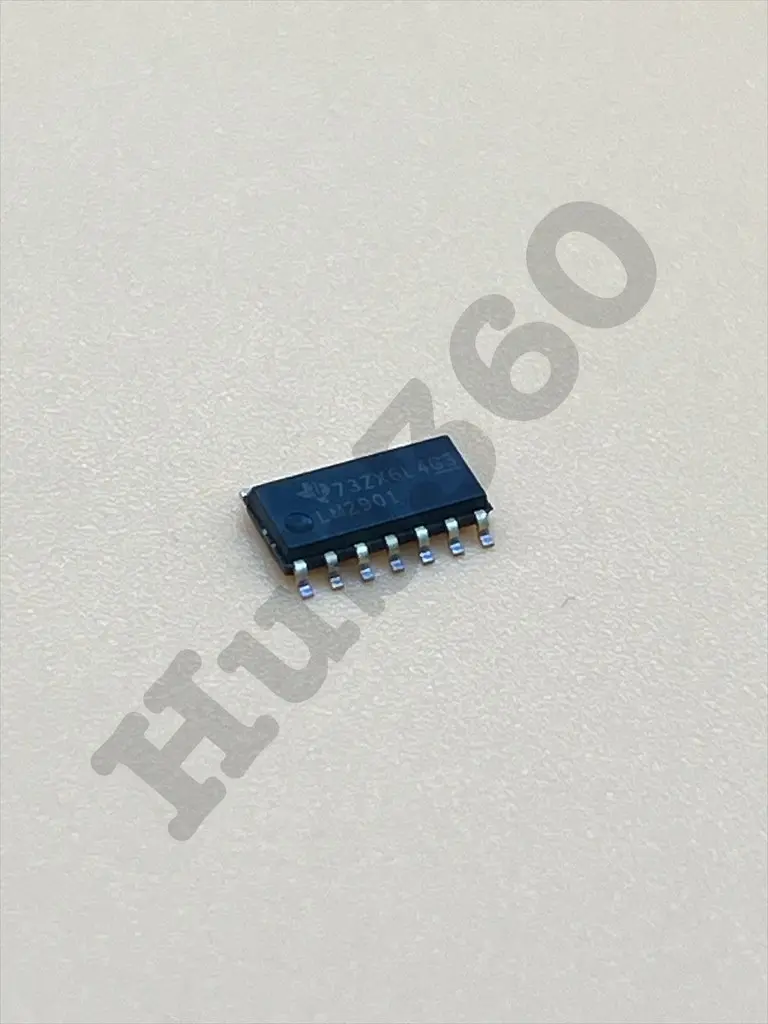

LM2901DR SOP-14 voltage comparator
The LM2901DR is a quad differential voltage comparator designed for a wide range of applications in both commercial and industrial environments. It features a wide supply voltage range, low input bias current, and high differential input voltage capability. This comparator is packaged in a SOP-14, providing a compact and reliable solution for various electronic circuits.
Key Features:
- Quad independent voltage comparators
- Wide supply voltage range: 2V to 36V
- Low input bias current: 250 nA
- Low input offset voltage: 2 mV
- High differential input voltage: 36V
- Output compatible with TTL, MOS, and CMOS logic
- Low output saturation voltage
- Internal frequency compensation
- Single or dual power supply operation
- Supply Voltage: 2V to 36V (single supply) or ±1V to ±18V (dual supply)
- Input Offset Voltage: 2 mV (typical)
- Input Bias Current: 250 nA (typical)
- Input Offset Current: 5 nA (typical)
- Differential Input Voltage: ±36V
- Output Voltage Low: 0.2V (typical) @ 4 mA
- Response Time: 1.3 µs (typical)
- Operating Temperature Range: -40°C to +125°C
- Package: SOP-14
- Voltage level detection
- Oscillator circuits
- Peak voltage detectors
- Zero-crossing detectors
- Industrial control systems
- Automotive applications
